Passenger's Power Window Switch Replacement




Passenger's Power Window Switch Replacement

NOTE: The illustration shows the front passenger's power window switch.

1. Remove the armrest trim:

- Front passenger's Service and Repair
- Rear passenger's Service and Repair

2. Remove the switch panel from the door panel.

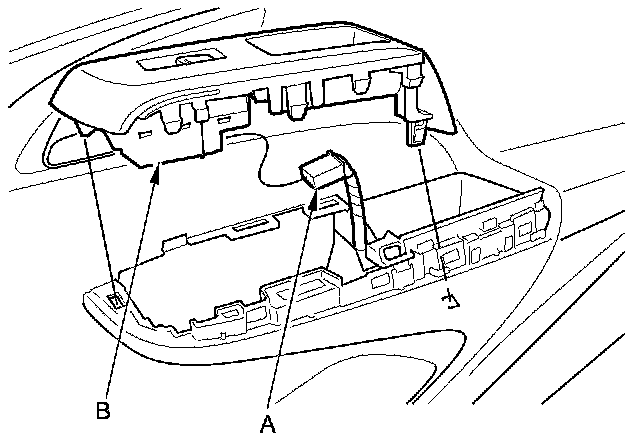

3. Disconnect the 8P connector (A) from the passenger's power window switch (B).

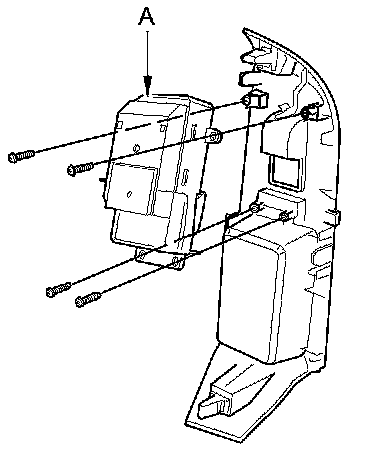

4. Remove the four screws and the switch (A).





5. Install the passenger's power window switch in the reverse order of removal.
