Rear Blower Motor Replacement
Rear Blower Motor Replacement 1.
Remove the right rear side trim panel
Interior Trim Removal/Installation - Rear Side Area.
2.

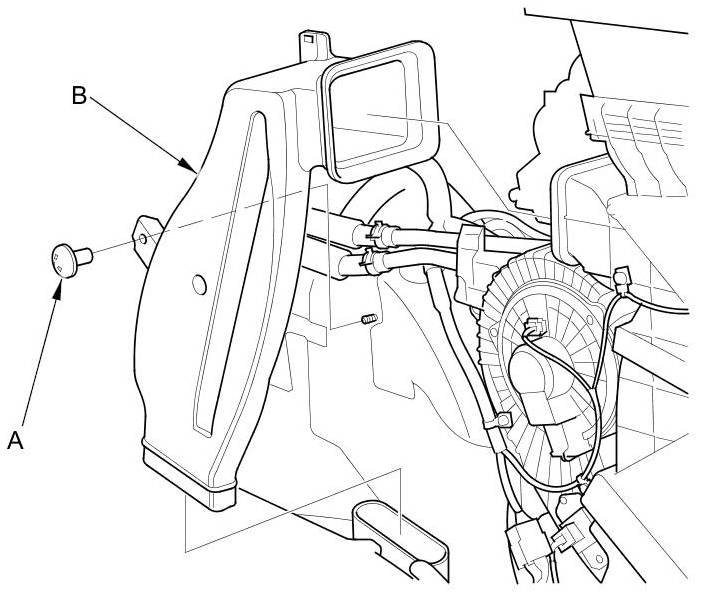

Detach the clip (A), then remove the side duct (B).
3.

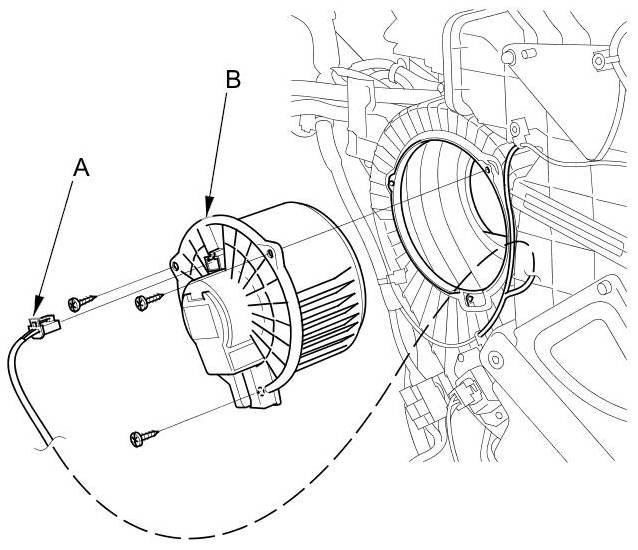

Disconnect the 2P connector (A) from the rear blower motor (B). Remove the self-tapping screws and the rear blower motor from the rear HVAC unit.
4.
Install the motor in the reverse order of removal.
