OnStar Button LED Inoperative

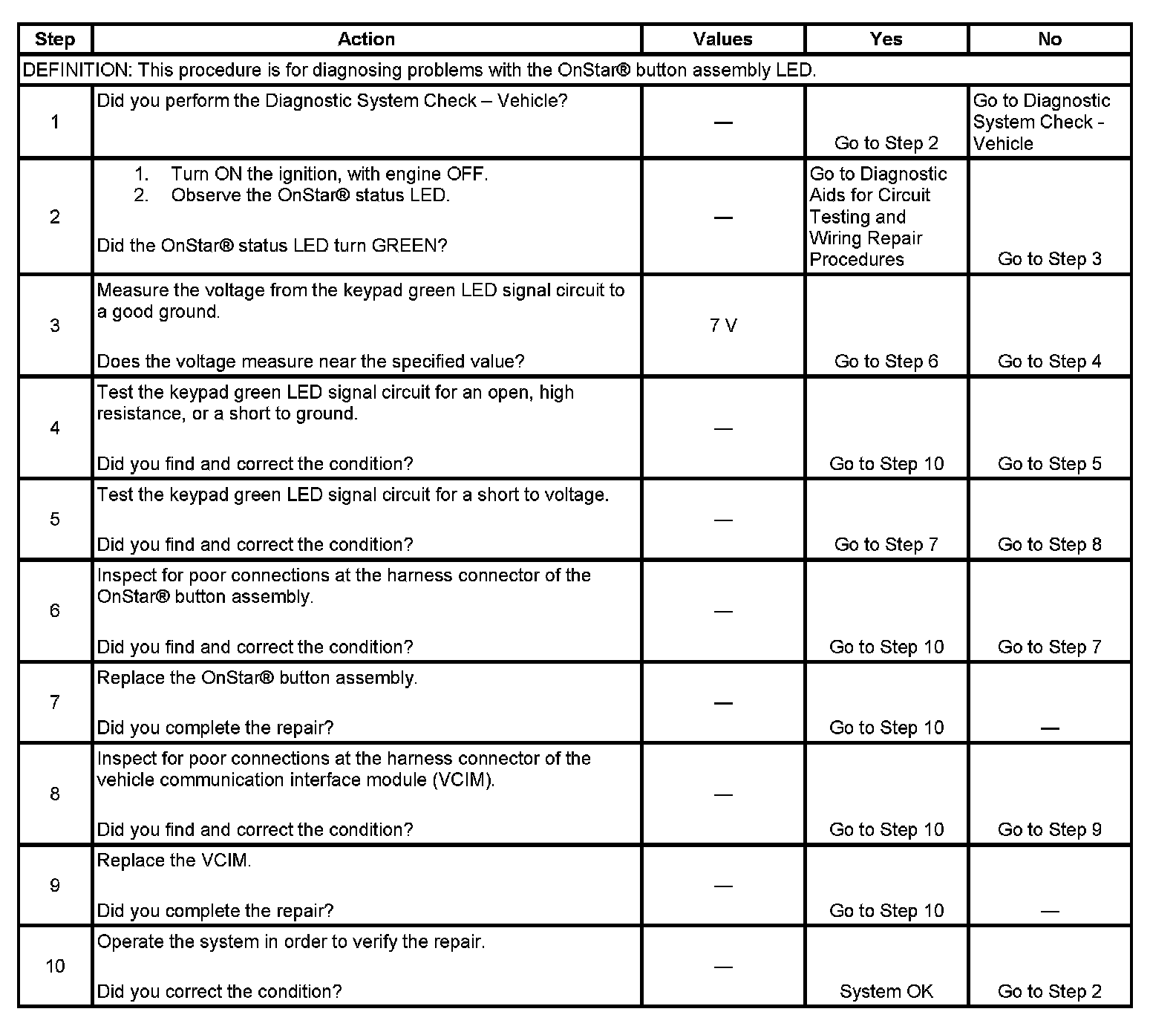

ONSTAR BUTTON LED INOPERATIVETEST DESCRIPTIONStep 1 - Step 10:
The numbers below refer to the step numbers on the diagnostic table.
3.
This step determines if the OnStar� status LED has the necessary green LED signal circuit voltage.
5.
If the green LED signal is shorted to voltage then the OnStar(R) 3 button assembly has been damaged and the OnStar(R) 3 button assembly must be replaced.
