Remote Control: Service and Repair

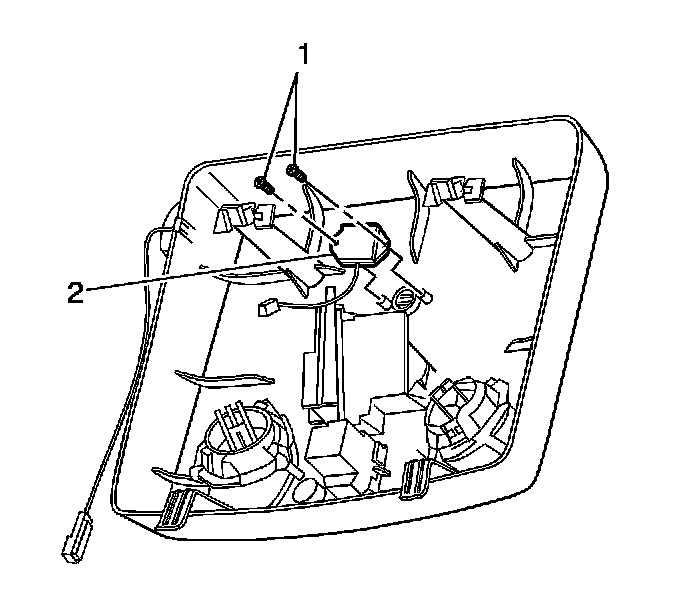

MICROPHONE REPLACEMENT - RADIO VOLUME COMPENSATOR INTERIOR

REMOVAL PROCEDURE




1. Remove the overhead console.
2. Remove the microphone screws (1).
3. Remove the microphone (2) from the overhead console.

INSTALLATION PROCEDURE




1. Install the microphone (2) to the overhead console.
2. Install the microphone screws (1).

Tighten the microphone screws to 2 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the overhead console.
