Washer Hose Replacement - Liftgate (Liftgate Side)

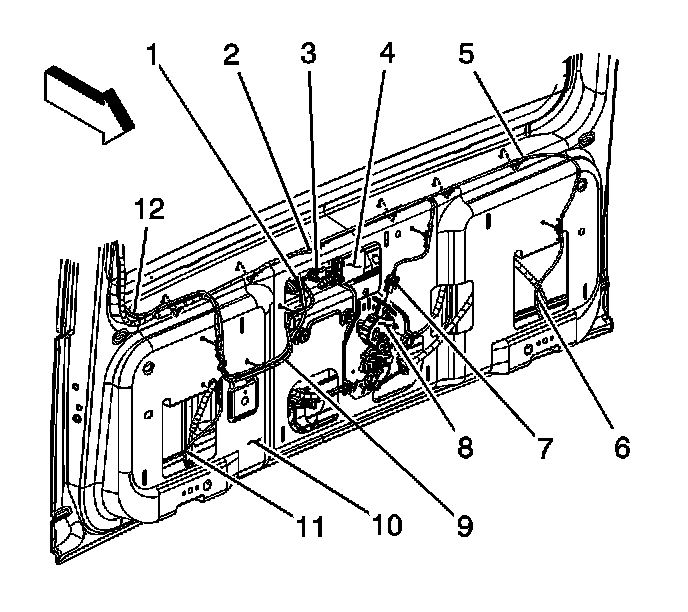

WASHER HOSE REPLACEMENT - LIFTGATE (LIFTGATE SIDE)

REMOVAL PROCEDURE




1. Remove the liftgate trim panel.




2. At the right side of the liftgate, disconnect the washer hose (12).
3. Disconnect the washer hose from the electrical harness (9).




4. Disconnect the washer hose (1) from the washer nozzle (5).
5. Remove the washer hose (1) from the liftgate (2).

INSTALLATION PROCEDURE




1. Position the washer hose (1) to the liftgate (2).
2. Secure the washer hose to the washer nozzle (5).




3. Secure the washer hose to the electrical harness (9).
4. At the right side of the liftgate, secure the washer hose (12) to the washer nozzle hose (1).




5. Install the liftgate trim panel.
