Carburetor Model Identification

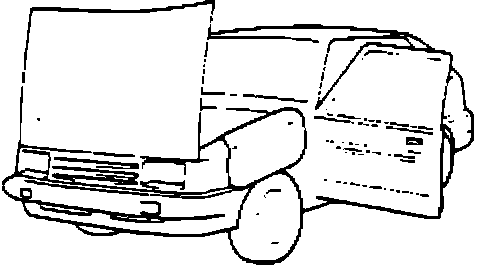

1. Open the hood and install fender covers on both fenders.

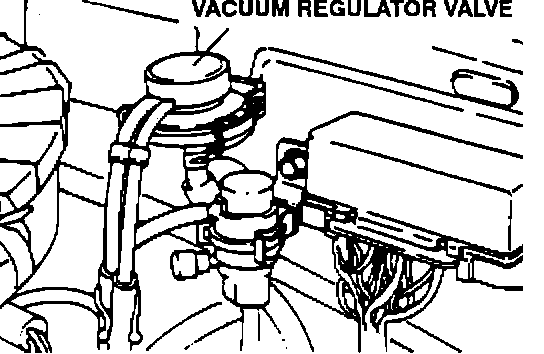

2. If the vehicle does not have a vacuum regulator valve on the firewall, follow the Campaign 006 Repair Procedures (Three Solenoid Carburetor). If it does have a vacuum regulator valve on the firewall, follow the Campaign 007 Repair Procedures (Two Solenoid Carburetor).
