Data-Link Circuit
CIRCUIT INSPECTION
DATA-LINK CIRCUIT When a fault is detected the
ABS Control Module (ABSCM), a code is stored in the ABSCM memory. The SCAN TOOL can be used to read the codes in the ABSCM memory.
INSPECTION PROCEDURE 1.

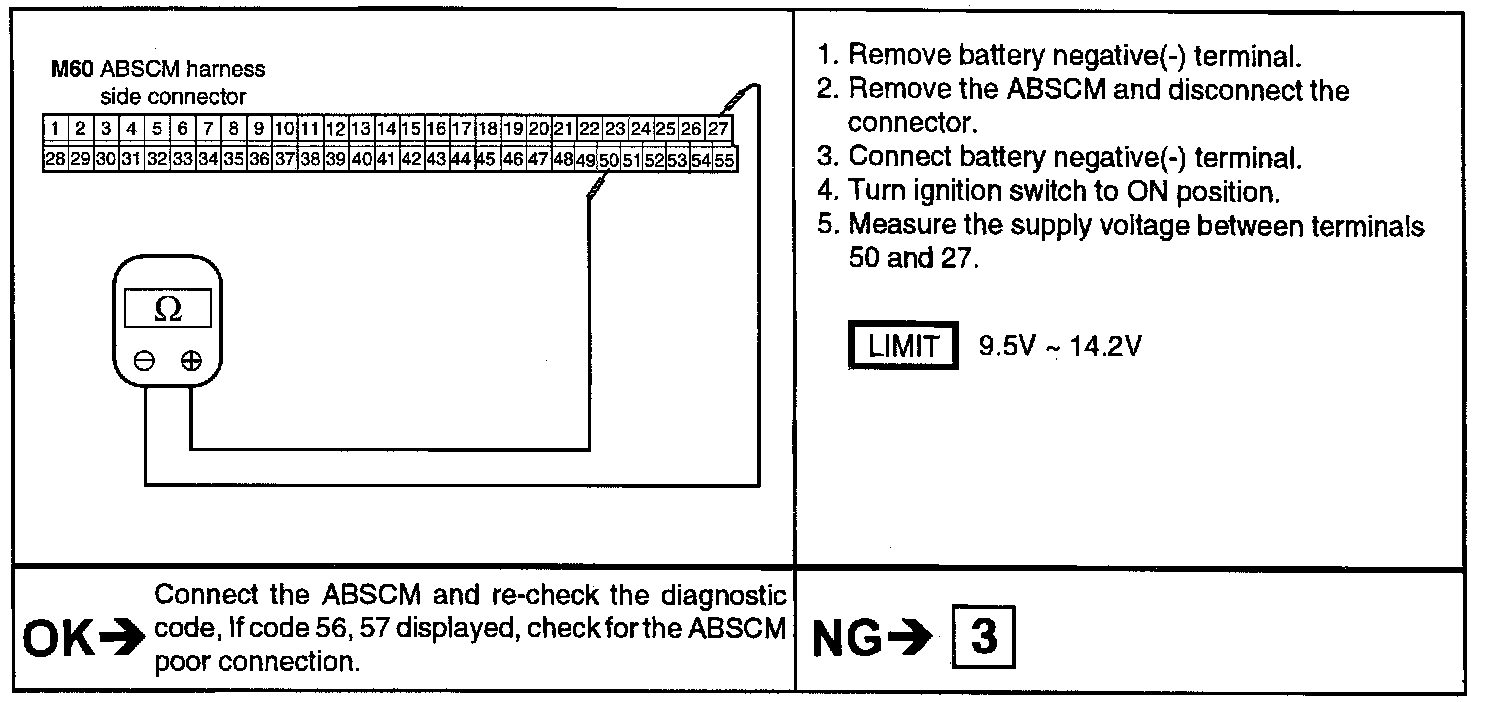

Check for voltage supply of ABSCM.
2.

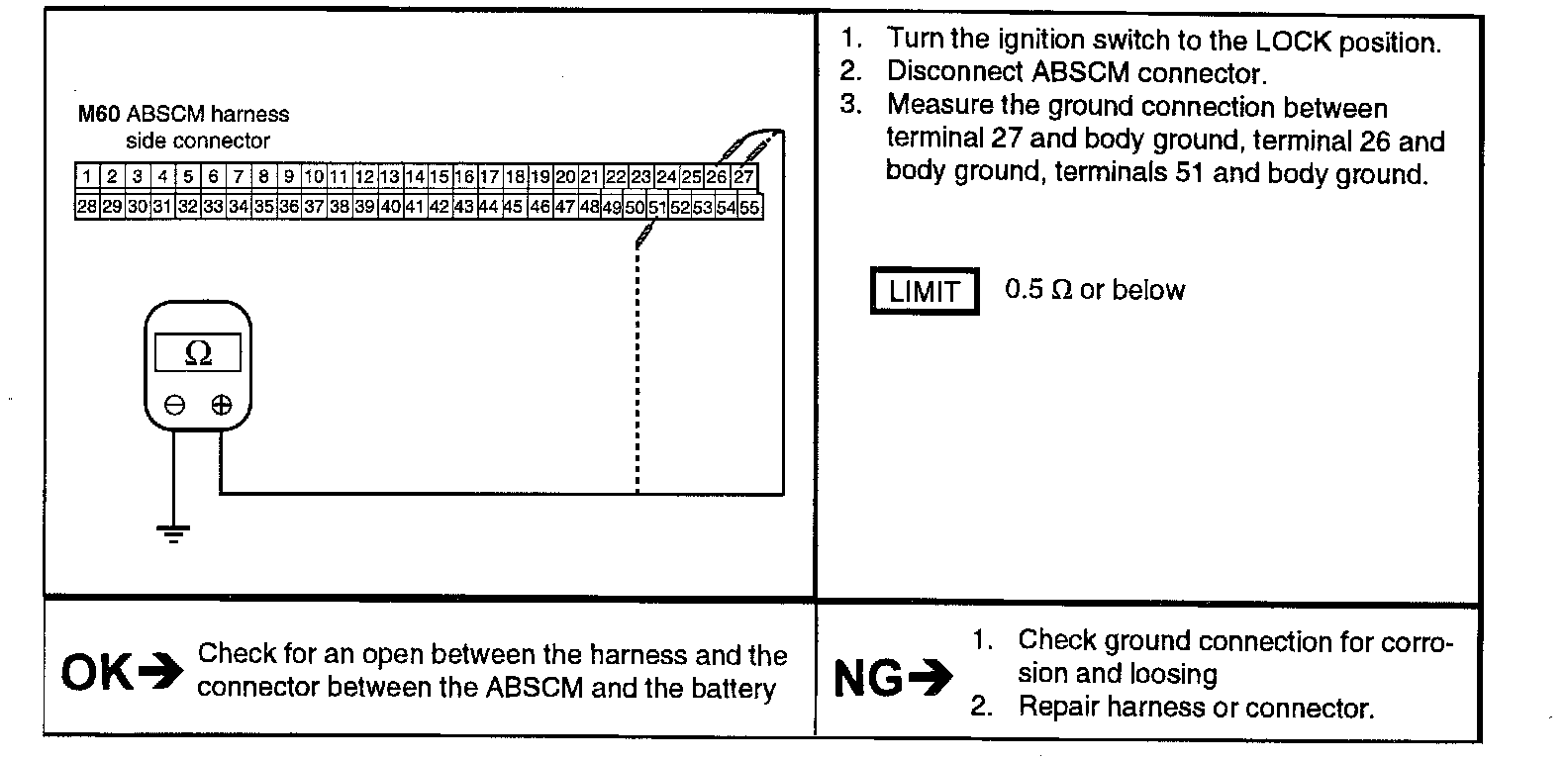

Check continuity between the ABSCM connector GND and Body GND.
