Fog/Driving Lamp: Adjustments

FRONT FOG LAMP

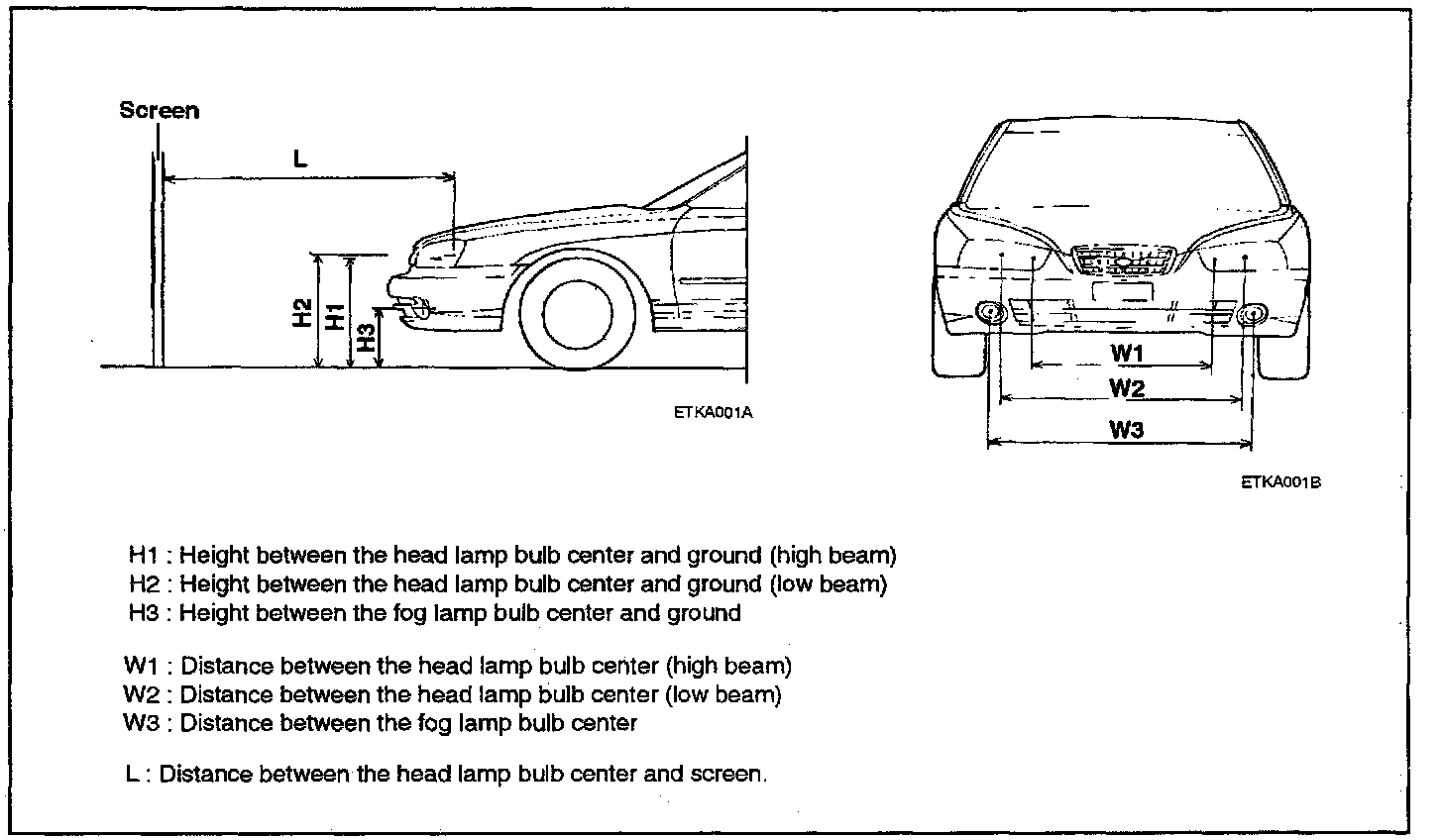

Head Lamp And Fog Lamp Aiming Point:

The front fog lamps should be aimed in the same manner as the head lamps.
With the front fog lamps and battery normal condition, aim the front fog lamps by using the adjusting wheel.

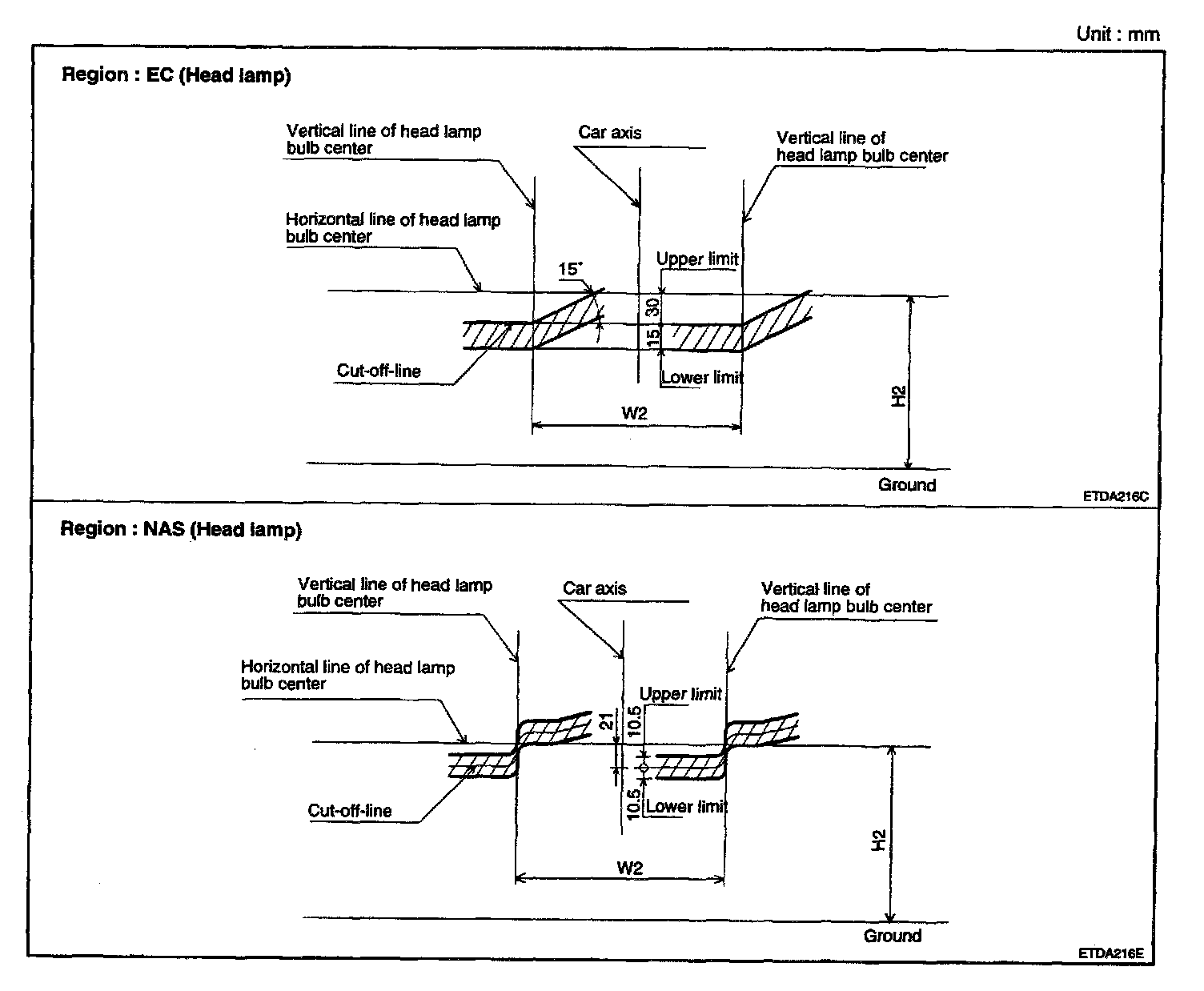

- Turn the low beam on without the driver aboard. The cut-off line should be projected in the allowable range (shaded region).




- Turn the front fog lamp on without the driver aboard. The cut-off line should be projected in the allowable range. (shaded region)
