Performance Test Diagnosis
STANDARD VALUEIf cooling cycle is operating normally, the manifold gauge reading will be approx
1.5 - 2.0 kg/sq.cm for the low pressure side and approx
14.5 - 15 kg/sq.cm for the high pressure side. Inlet temperature should be
30 - 35 °C, with the engine at
2,000 rpm, maximum cooling selected, and the blower on highest level.

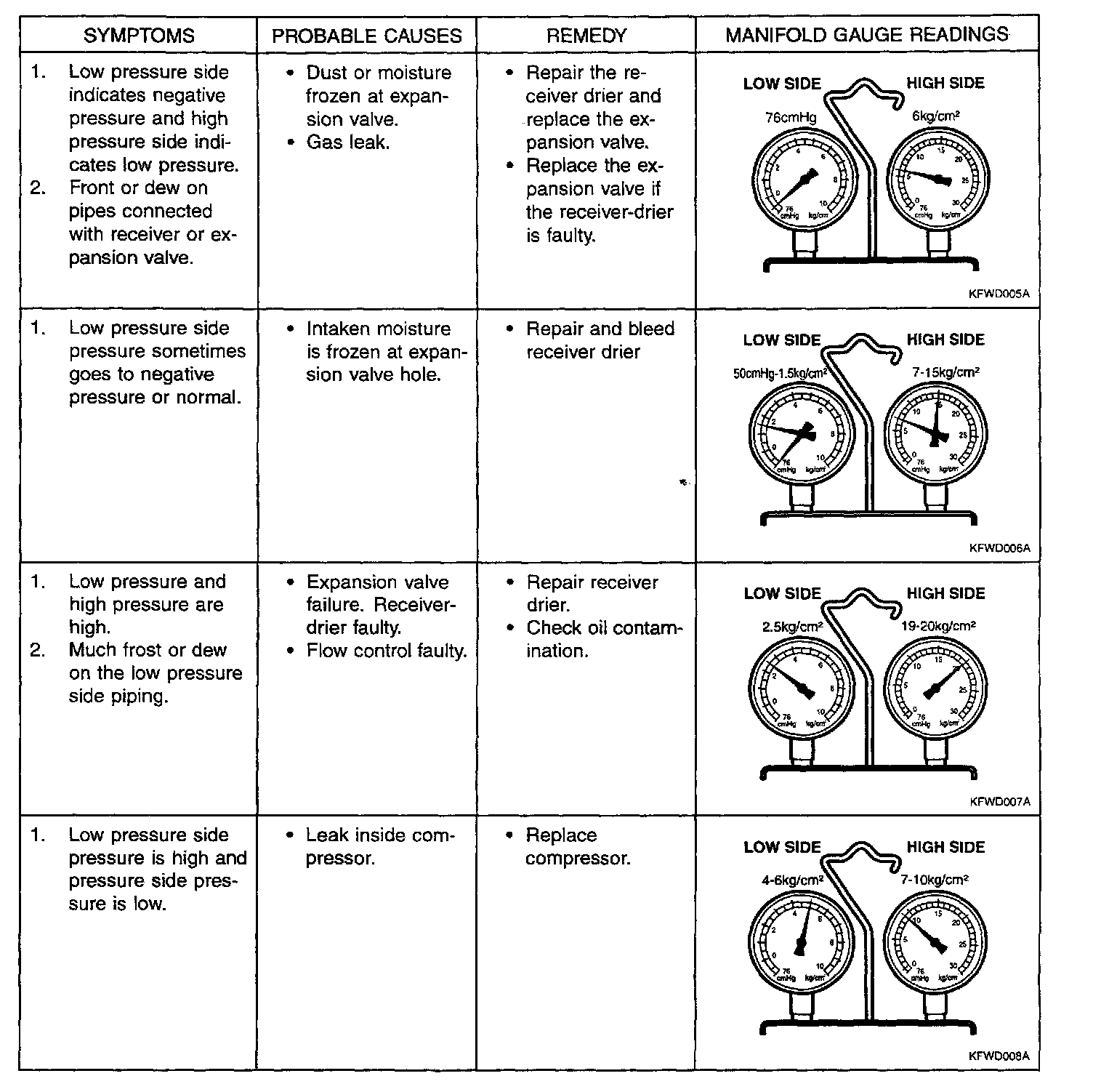

Part 1:

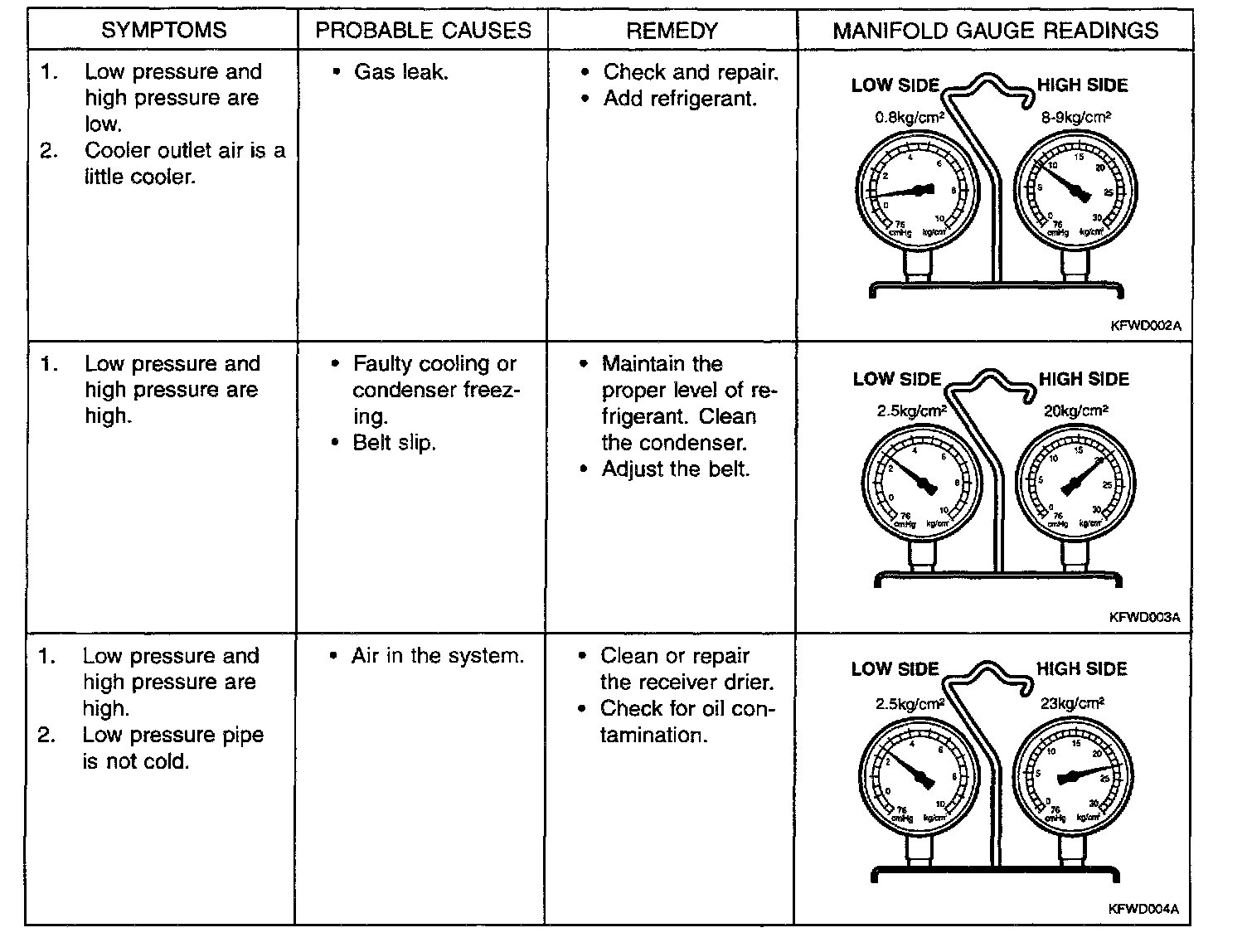

Part 2:
DIAGNOSIS
