Brakes - Front Pad Replacement Procedure
Group: CHASSIS
Number: 04-50-012
Date: DECEMBER, 2004
Model: SANTA FE
DESCRIPTION:

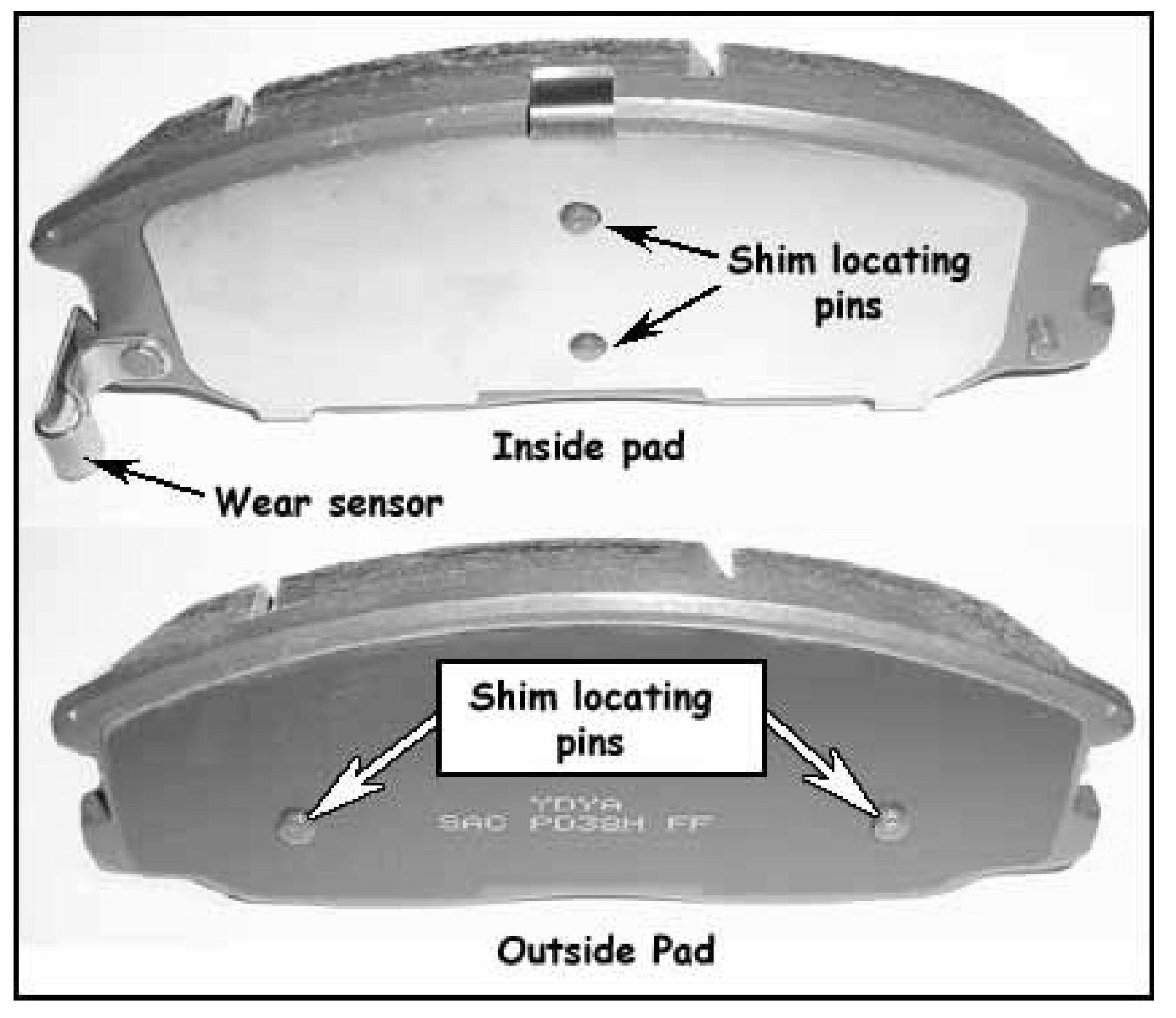

When replacing the front
brake pads on a Santa Fe vehicle, ensure the inside and outside brake pads are installed correctly - the pads are different as shown below.

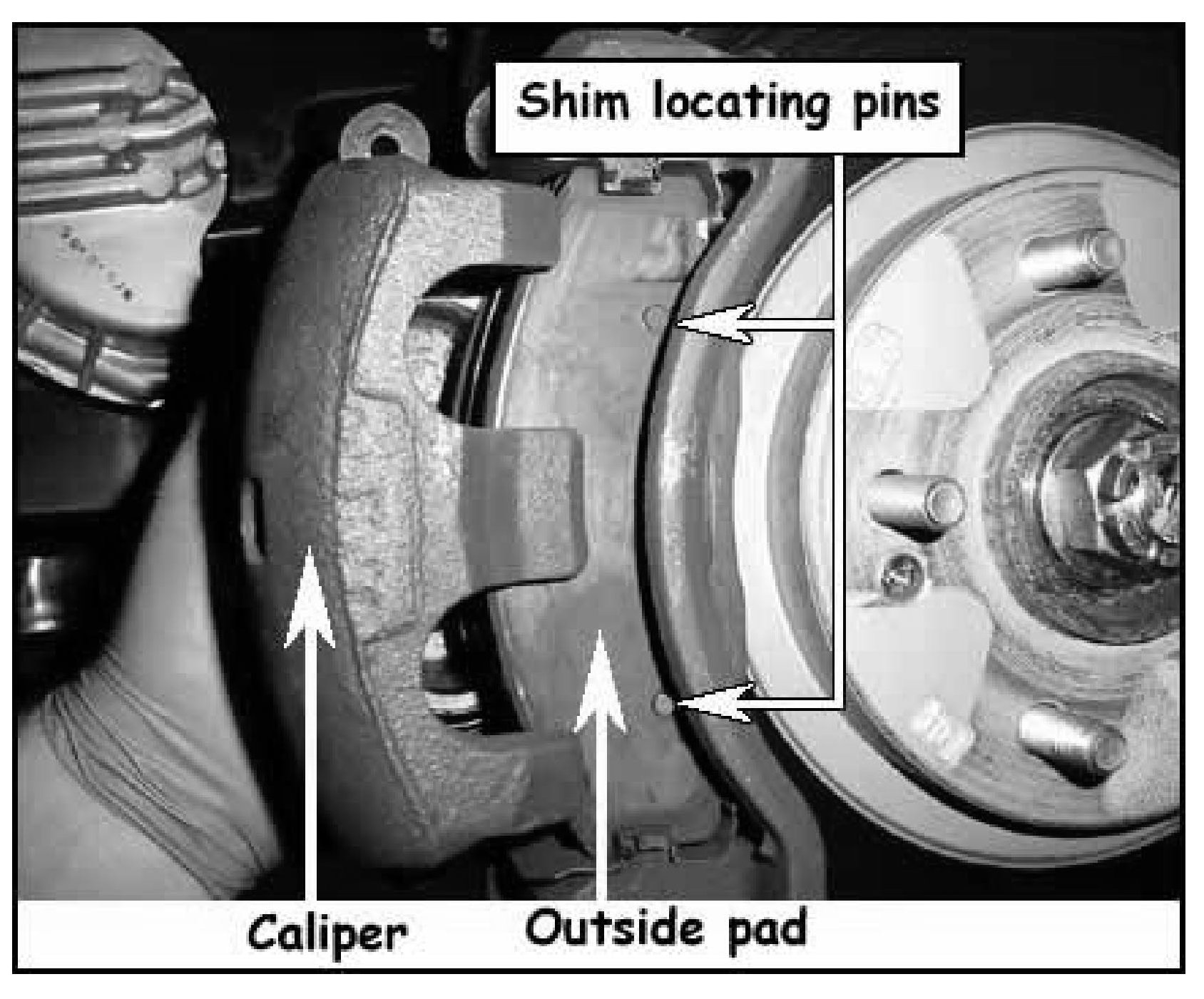

Correct installation of the outside
brake pad.
