Lighting and Horns: Testing and Inspection
1.

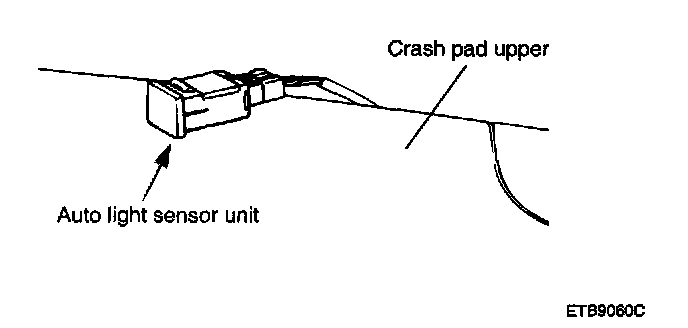

Detach the sensor unit in the upper crash pad.
2.

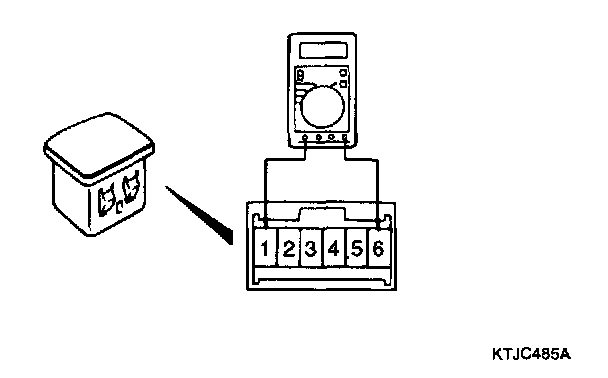

Check the continuity between terminal 6(+) and terminal 1 (-).
3.

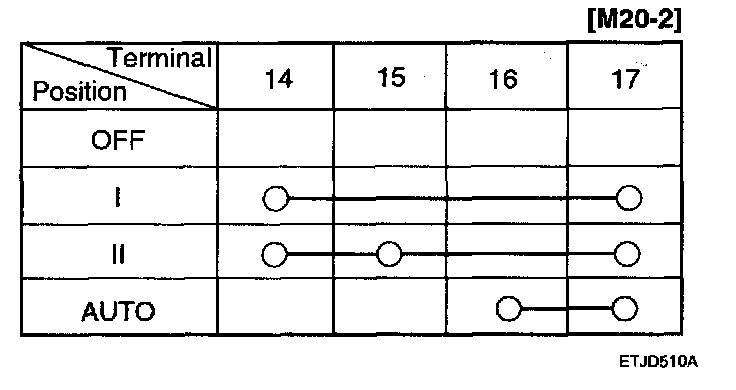

Check the continuity between the terminals while operating the switch.

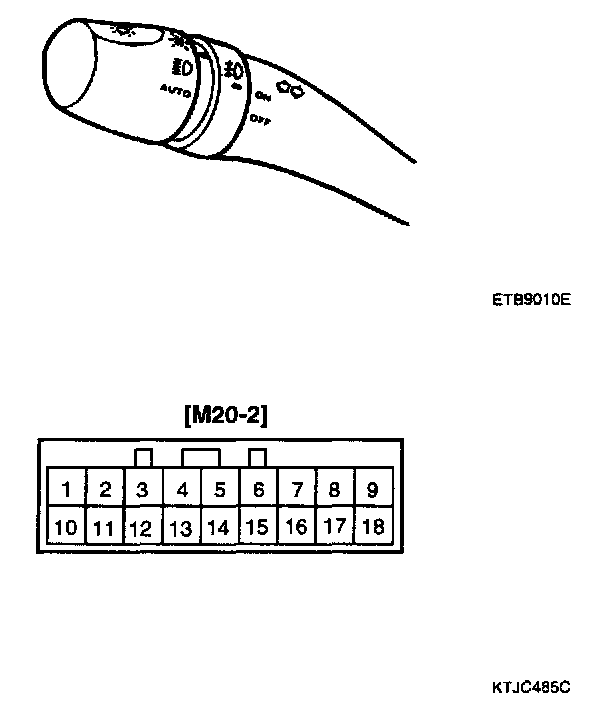

AUTO LIGHT SWITCH
