Connector Locations

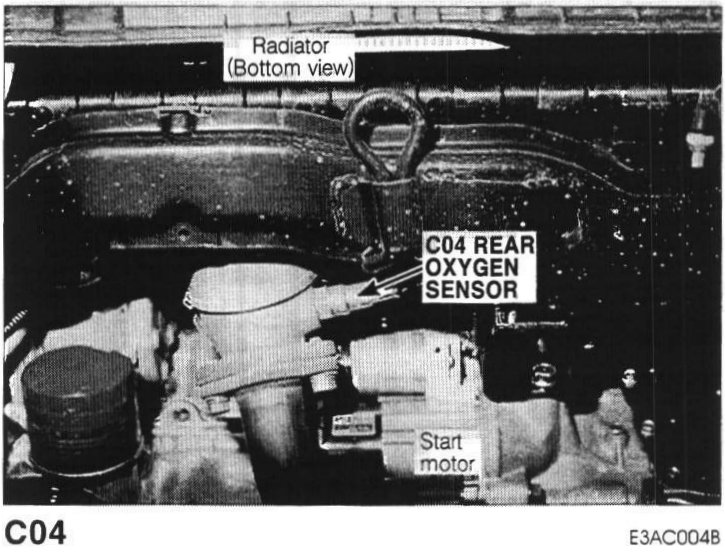

C04 Rear Oxygen Sensor:

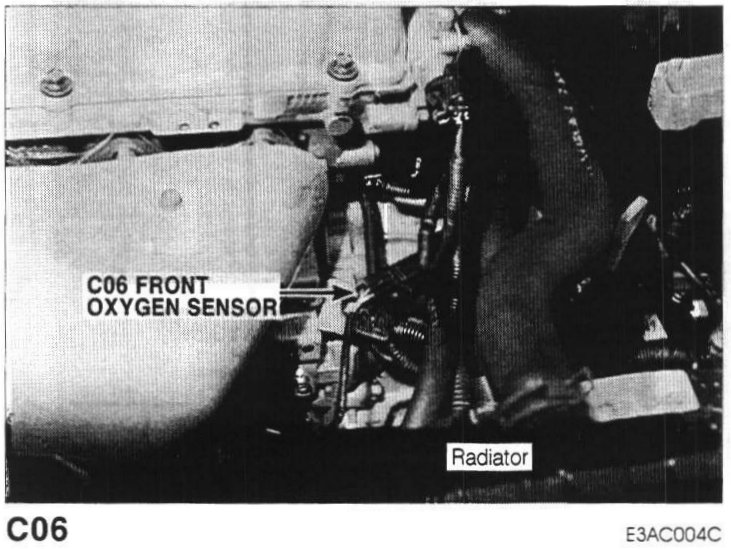

C06 Front Oxygen Sensor:




C25 Oxygen Sensor:




C61 Engine Coolant Temperature Sensor & Sender, C63 Ignition Coil, C65 Crankshaft Position Sensor, C66 Rear Oxygen Sensor (BANK 2 / SENSOR 2):




C73 Front Oxygen Sensor (BANK 1 / SENSOR 1):




C89 Rear Oxygen Sensor (BANK1 / SENSOR2):




C92 Front Oxygen Sensor (Except EC):




C95 Rear Oxygen Sensor (Except EC):




C100 Front Oxygen Sensor (BANK 2 / SENSOR 1):
