Exhaust System

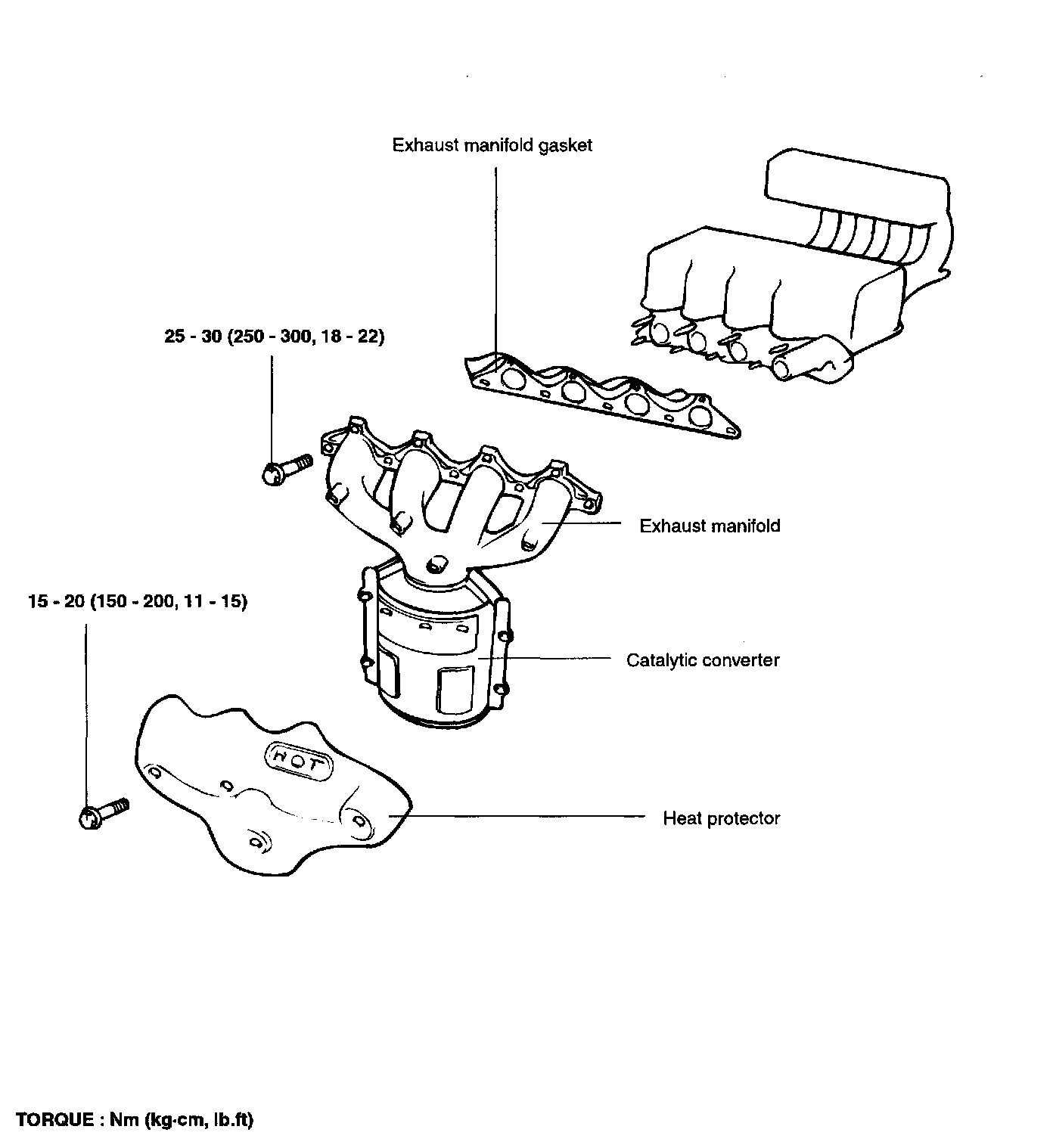

EXHAUST MANIFOLD:
Exhaust manifold to cylinder head nuts
43-55 Nm (430-550 kg-cm, 32-40 ft. lbs.)
Exhaust manifold cover to exhaust manifold bolts
15-20 Nm (150-200 kg-cm, 11-14 ft. lbs.)
Oxygen sensor to
exhaust manifold 50-60 Nm (500-600 kg-cm, 36-43 ft. lbs.)
Front
exhaust pipe to
exhaust manifold nuts
30-40 Nm (300-400 kg-cm, 22-29 ft. lbs.)
