Service Manual Correction - Digital Clock Schematic
Group90 - ELECTRICAL
Number
02-90-010
Date
07-2002
Model
Tiburon 2003
Subject
2003 TIBURON ETM CORRECTION TO DIGITAL CLOCK SCHEMATIC
DESCRIPTION:
The digital clock circuit in the 2003 TIBURON Electrical Troubleshooting Manual (BTM) is incorrect. It indicates a dimmer circuit input to the clock that is not present.
Corrections made to the 2003 TIBURON ETM:

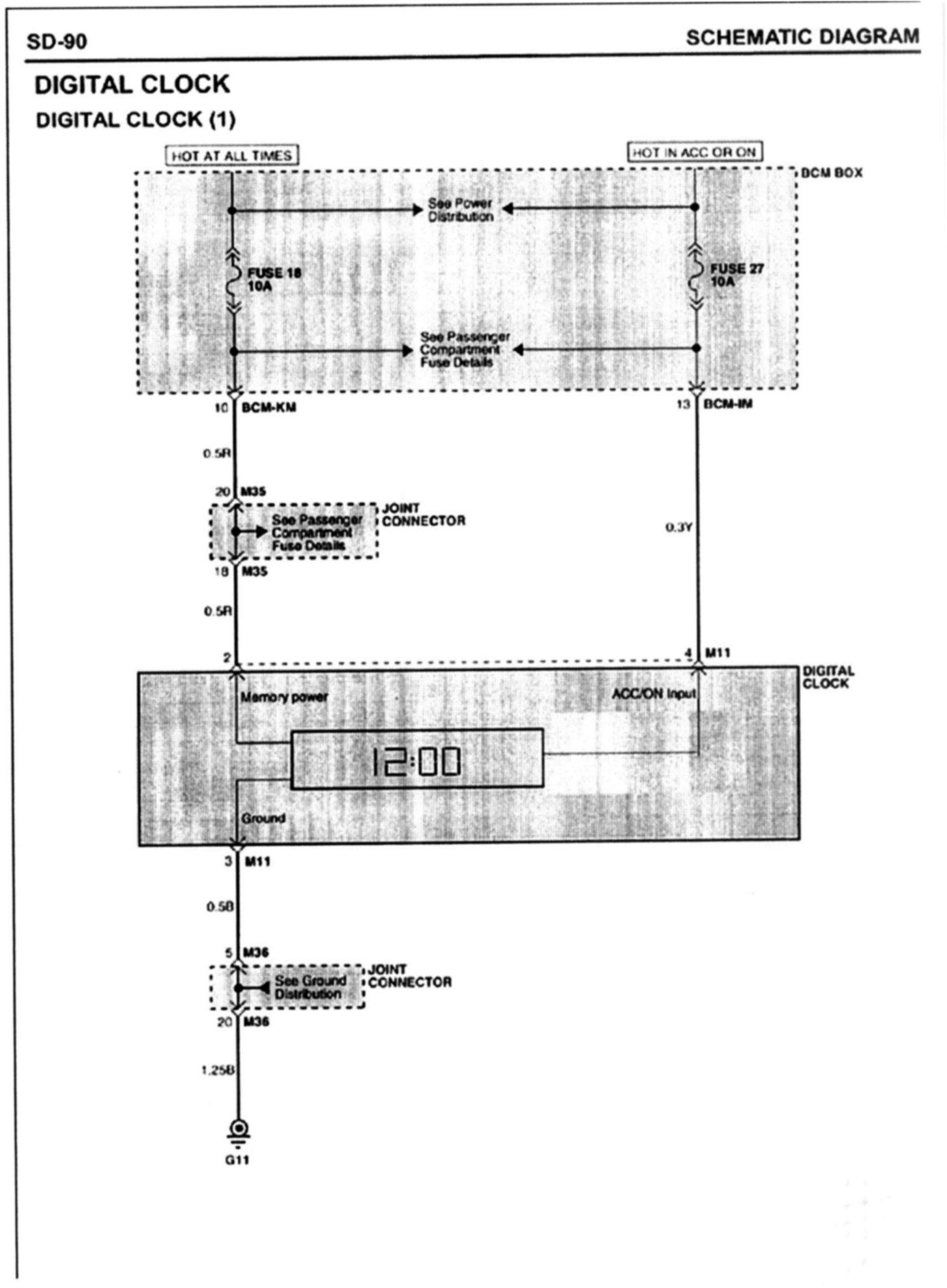

^ Page SD-90: Deleted No. 1 pin circuit (Dimmer) from the digital clock. This pin does not exist on the digital clock.

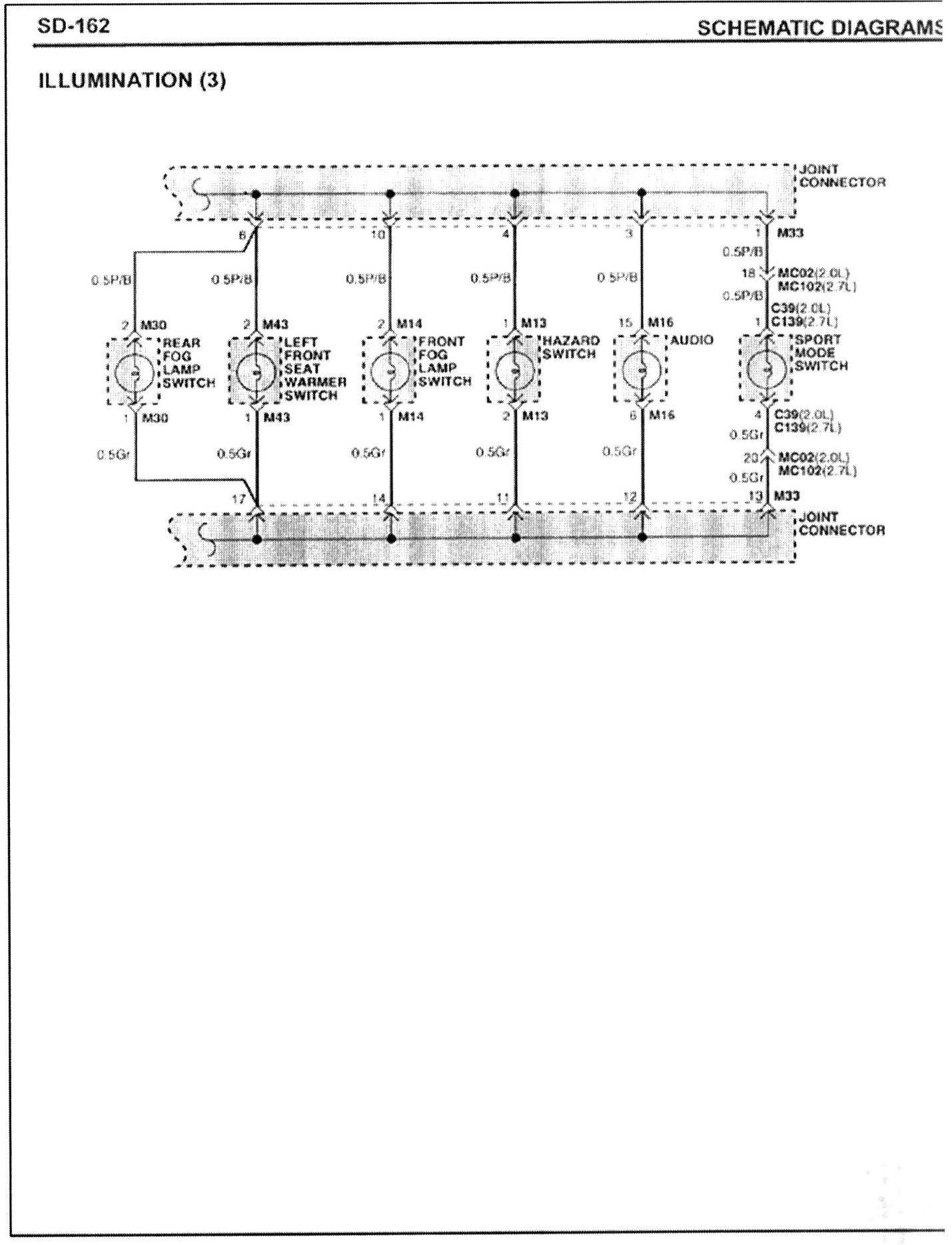

^ Page SD-162: Digital clock illumination lamp deleted.
The two pages show the corrected schematic diagrams.
Please write this TSB number at the top of pages SD-90 and SD-162 of your 2003 Tiburon ETM for future reference.
