Sunroof - Schematic Correction

Group:
ELECTRICAL

Number:
02-90-008

Date:
JUNE, 2002

Model:
2003 TIBURON

Subject:
2003 TIBURON ETM CORRECTION FOR SUNROOF SCHEMATIC

DESCRIPTION:

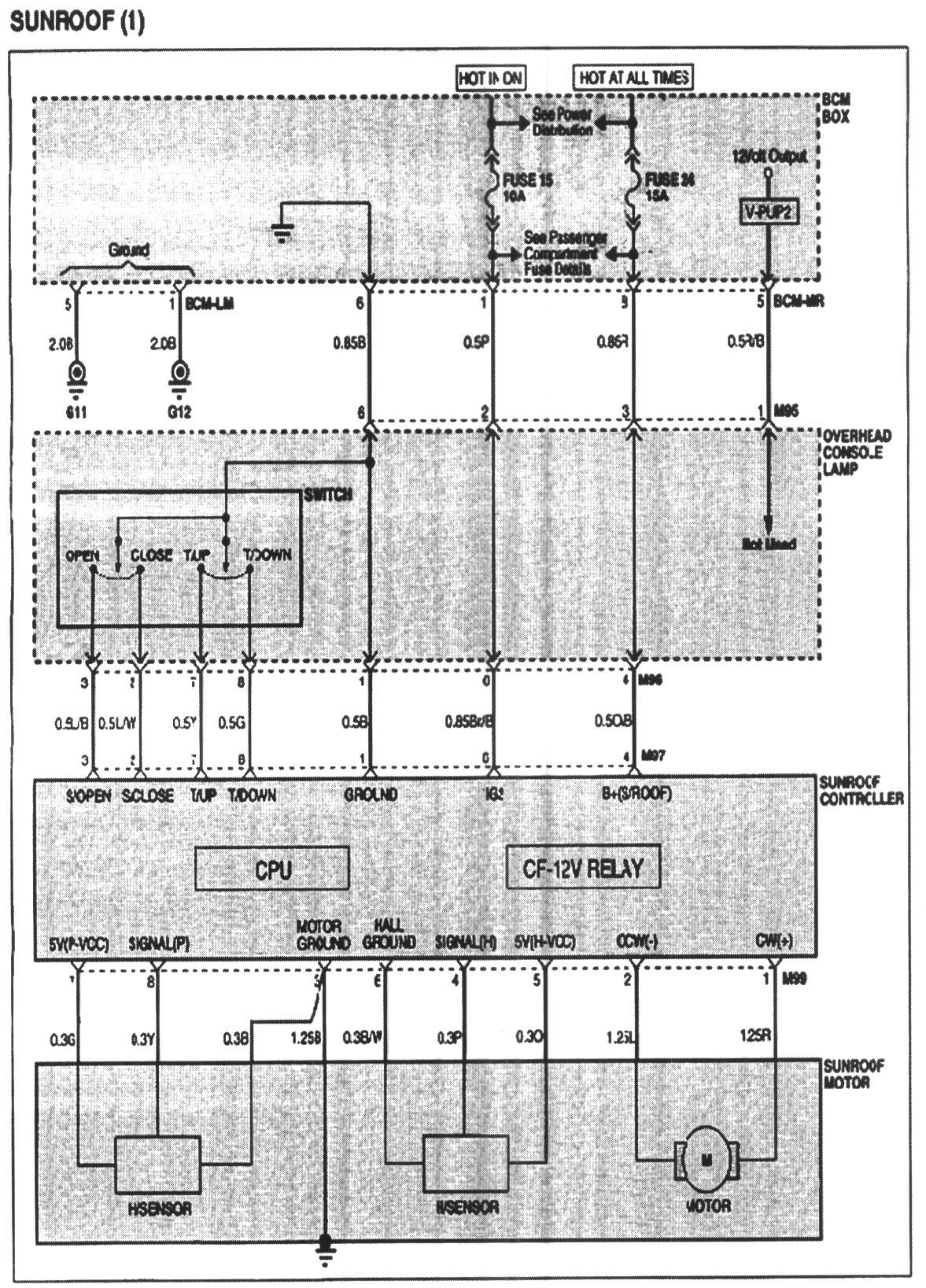

The sunroof schematic on page SD-122 of the 2003 Tiburon Electrical Troubleshooting manual is incomplete. It does not provide the wire color and size information between the sunroof switches (in the room lamp) and the sunroof controller, and between the sunroof controller and the sunroof motor.





The schematic includes complete information (Wire color not shown).
