Driver Door Module - B1911 Outside Mirror Left Vertical Motor or Sensor Error General Information

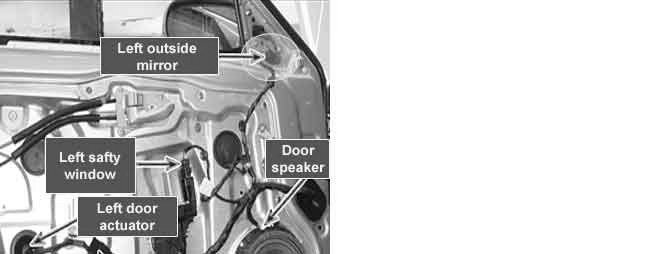

Component Location





General Description

DDM is a node of CAN communication system which consists of BCM, Seat ECU, Tilt ECU, ADM. Main function of DDM is lock/unlock of door and window, adjusting position and fold/unfold of outside mirror. Outside mirror module consists of motor and position sensor. According to Outside mirror Switch signal, Outside mirror motor adjusts position of mirror and position sensor delivers result to DDM by voltage value

DTC Description

The ECM sets DTC B1911 if signal voltage of left outside mirror vertical sensor is out of range

DTC Detecting Condition





Specification

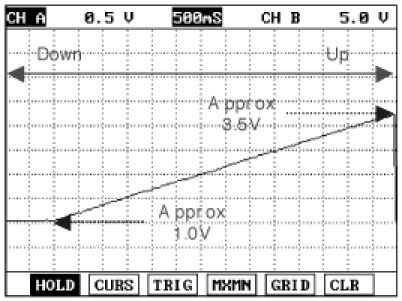

** Output voltage of outside mirror sensor as a function of horizontal position of outside mirror.

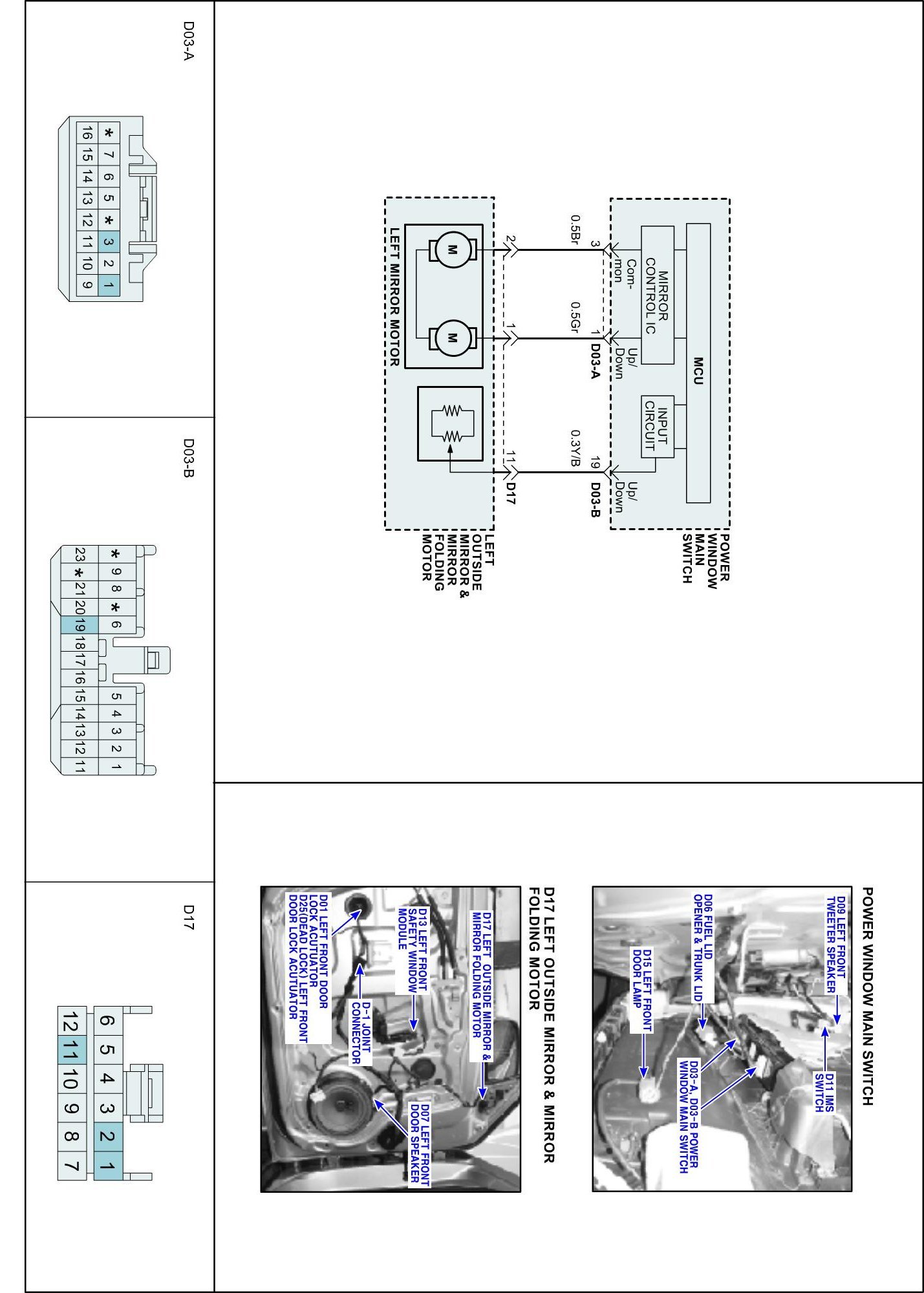

Schematic Diagram
