Assist Door Module - B1912 Outside Mirror Right horizontal Motor or Sensor Component Inspection

Component Inspection

Check right outside mirror switch
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Monitor the "PA. MIRROR RIGHT (LEFT) SW " Parameter on the Scantool. While operating right outside mirror switch.

Specification : Refer the specifications in Fig.1), Fig.2)

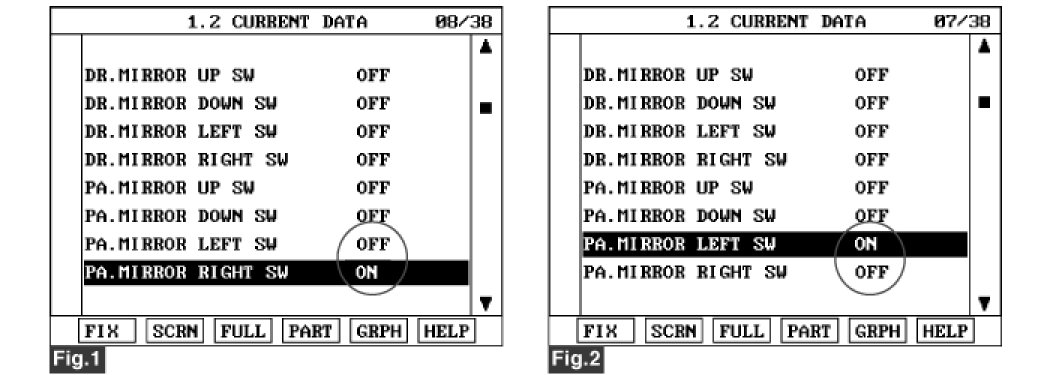

Fig.1) When right switch is pressed
Fig.2) When left switch is pressed
Fig.1), Fig.2) Current Data of right outside mirror switch.
4. Is the measured current data within specifications?





Check right outside mirror motor
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF".
3. Select 'ACTUATION TEST' mode on scantool and press [F1] to start.

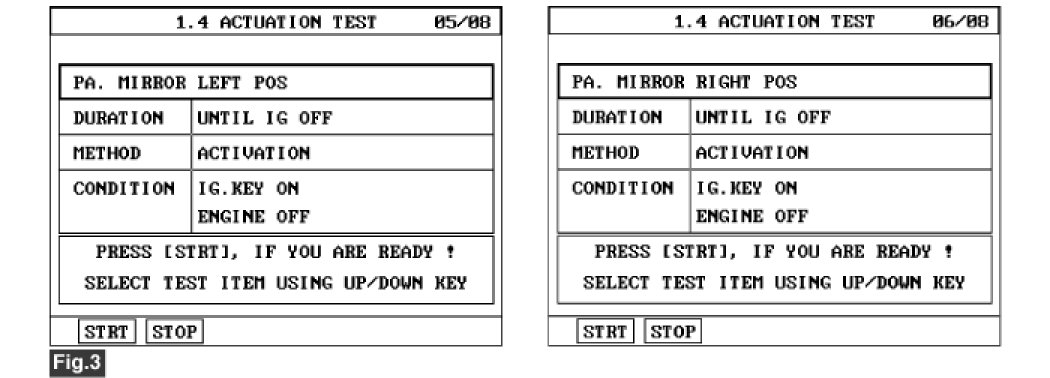

Fig.3) Actuation Test of right outside mirror.
4. Dose right outside mirror motor work properly?





Check left outside mirror sensor
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF".
3. Monitor the "MIRROR HORI. POS" Parameter on the Scantool. While operating right outside mirror switch.

Specification : The furthest left -> Approx. 1.0 V,
The furthest right -> Approx. 3.5 V





Fig.4) Current Data of right outside mirror horizontal position.
Fig.5) Output voltage of outside mirror sensor as a function of horizontal position of outside mirror
4. Is the measured voltage within specifications in Fig.5)?
