Assist Door Module - B1913 Outside Mirror Right vertical Motor or Sensor Component Inspection

Component Inspection

Check right outside mirror switch
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Monitor the "PA. MIRROR UP (DOWN) SW " Parameter on the Scantool. While operating right outside mirror switch.

Specification : Refer the specifications in Fig.1), Fig.2)

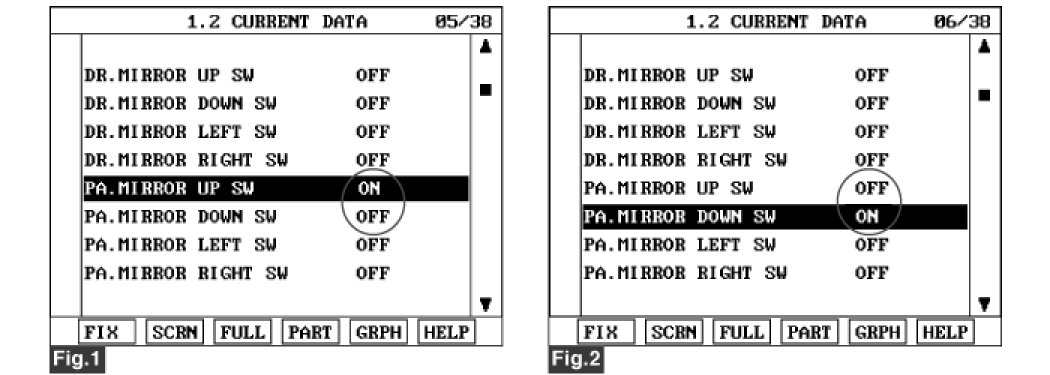

Fig.1) When UP switch is pressed
Fig.2) When DOWN switch is pressed
Fig.1), Fig.2) Current Data of right outside mirror switch.
4. Is the measured current data within specifications?





Check right outside mirror motor
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF".
3. Select 'ACTUATION TEST' mode on scantool and press [F1] to start.

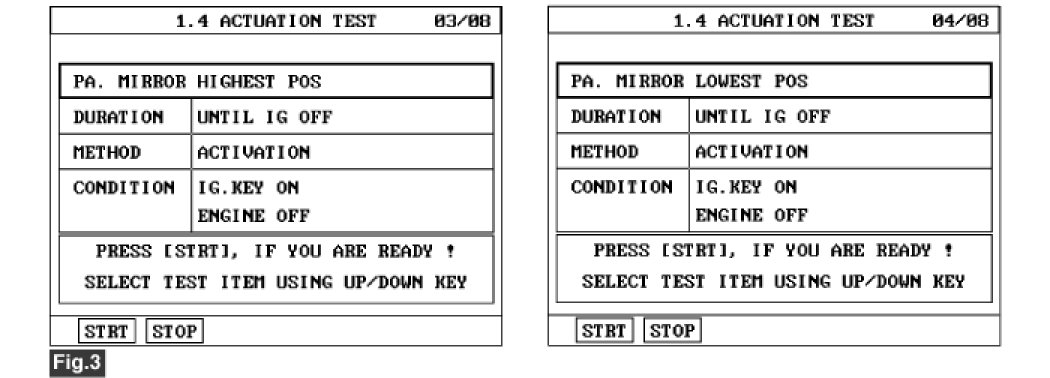

Fig.3) Actuation Test of right outside mirror.
4. Dose right outside mirror motor work properly?





Check right outside mirror sensor
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF".
3. Monitor the "MIRROR VERT. POS" Parameter on the Scantool. While operating right outside mirror switch.

Specification : The bottom -> Approx. 1.0 V,
The furthest right -> Approx. 3.5 V

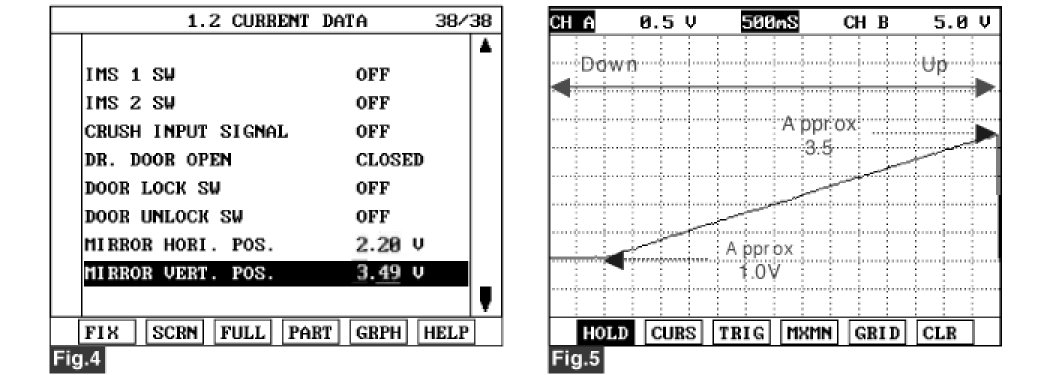

Fig.4) Current Data of right outside mirror vertical position.
Fig.5) Output voltage of outside mirror sensor as a function of vertical position of outside mirror
4. Is the measured voltage within specifications in Fig.5)?
