Power Seat Module - B1954 Slide Motor Or Sensor Error Component Inspection

Component Inspection

Check power seat slide switch
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Monitor the "SLIDE FORWARD (BACKWARD) SW " Parameter on the Scantool. While operating power seat slide switch.

Specification : Refer the specifications in Fig.1), Fig.2)

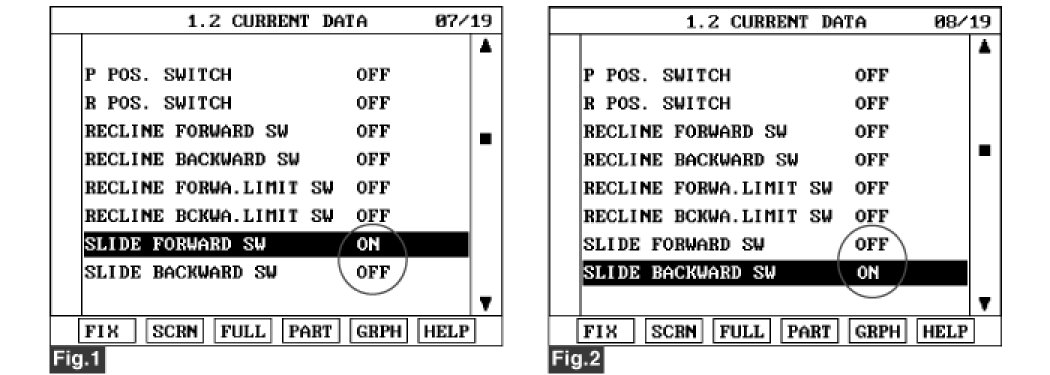

Fig.1) When FWD switch is pressed
Fig.2) When Back switch is pressed
Fig.1), Fig.2) Current Data of power seat slide switch.
4. Is the measured current data within specifications?





Check power seat slide motor
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Select "ACTUATION TEST" mode on scantool and press [F1] to start

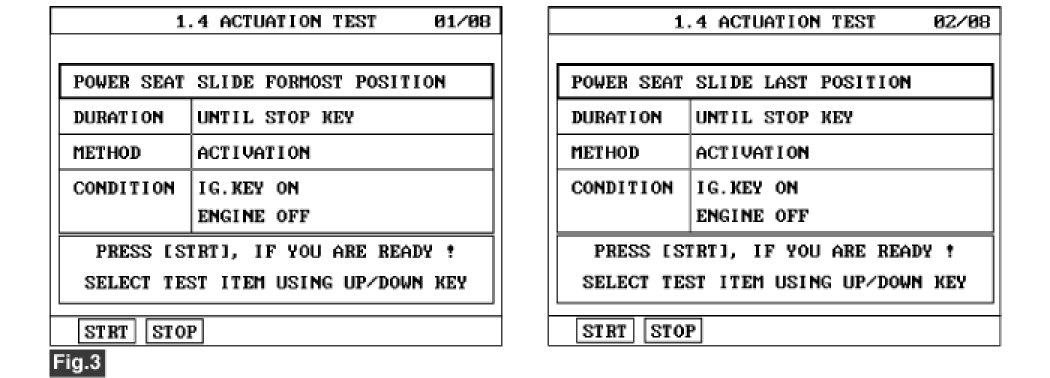

Fig.3) Actuation Test of power seat slide motor
4. Dose power seat slide motor work properly?





Check power seat slide sensor
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Monitor the "SLIDE POSITION" Parameter on the Scantool. While operating power seat slide switch.

Specification : Refer the specifications in Fig.5)

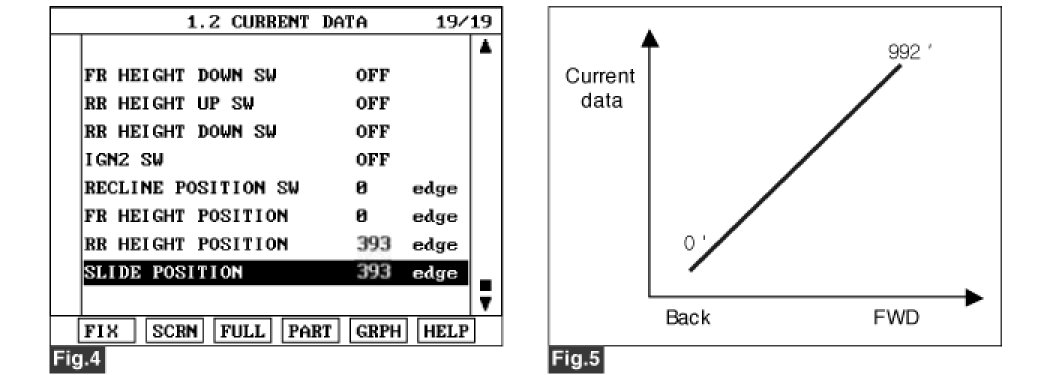

Fig.4) Current Data of power seat slide position
Fig.5) Current data of power seat slide sensor as a function of horizontal position of power seat.
4. Is the measured voltage within specifications in Fig.5)?
