Monitor Scantool Data
BrakeABS/ESC - C1102 Battery Voltage Low Monitor Scantool DataMonitor Scantool Data 1.
Connect scantool to Data Link Connector (DLC)
2.
Engine "ON".
3.
Monitor the "BATTERY VOLTAGE" parameter on the scantool.

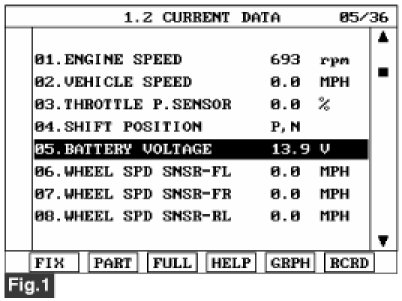

Specification : Above. 9.6 V Fig 1) Test Condition : Ignition "ON" & Engine "ON".
Normal Data
4.
Is parameter displayed within specifications?
