Monitor Scantool Data





Brake

ABS/ESC - C1205 Wheel Speed Sensor Front-RH Invalid/no Signal Monitor Scantool Data

Monitor Scantool Data

1. Engine "ON".
2. Connect scantool to Data Link Connector (DLC).
3. Start and drive vehicle in gear and maintain vehicle speed is approx. 50 km/h or more (31 mph or more)
4. Monitor the "WHEEL SPD SENSOR-FR" parameter on the Scantool.

Specification : Approx. 50 km/h or more (31 mph or more)

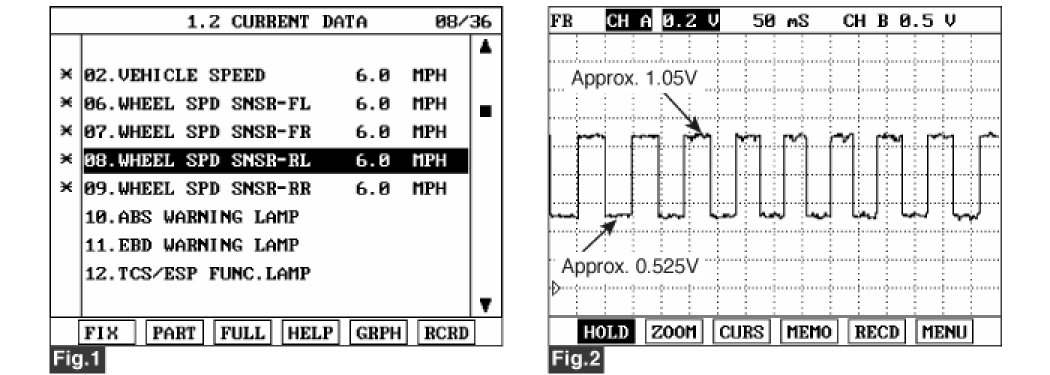

Fig 1) Test Condition : Drive vehicle in 50 km/h or more. (31 mph or more)
Normal Data
Fig 2) Test Condition : Low speed condition.
Normal waveform
5. Is parameter displayed within specifications?
