Evaporative Emission Control Canister: Service and Repair





Removal

1. Remove the fuel tank .
2. Disconnect the hoses connecting the canister.

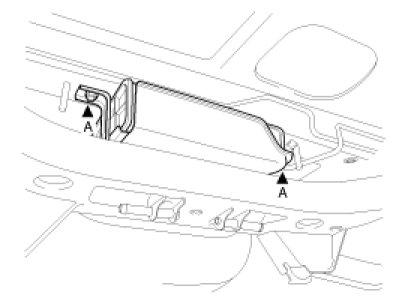

3. Remove the installation bolts (A), and then remove the canister.






Inspection

1. Check for the following items visually.
- Cracks or leakage of the canister
- Loose connection, distortion, or damage of the vapor hose/tube




A: Canister <-> Atmosphere
B: Canister <-> Fuel Tank
C: Canister <-> Intake Manifold

Installation

Installation is the reverse of removal.

Canister installation bolt/nut:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)
