Pressure Plate

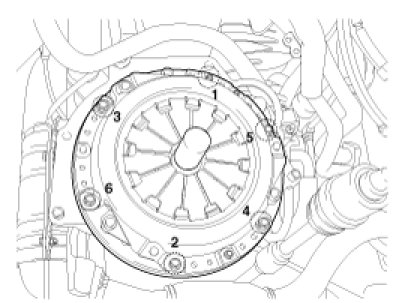

Pressure PlateInstall the clutch cover bolts. Gradually tighten the bolts according to the order specified in the illustration until the specified torque is reached.
Tightening torque
24.5 - 35.3 N.m (2.5 - 3.6 kgf.m, 18.1 - 26.0 lb-ft)
