Front Lower Arm





Replacement

1. Remove the front wheel & tire.

Tightening torque:
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

CAUTION:
Be careful not to damage to the hub bolts when removing the front wheel & tire.

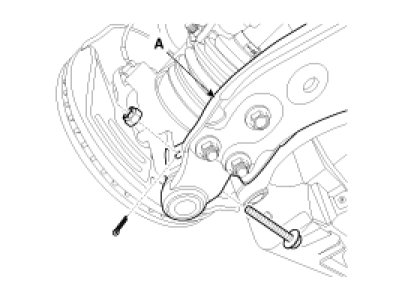

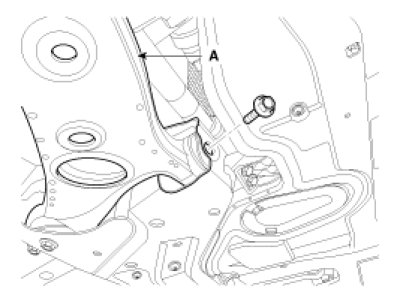

2. Loosen the bolt & nut and then remove the lower arm (A).

Tightening torque:
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

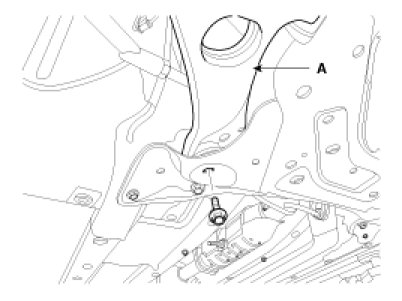

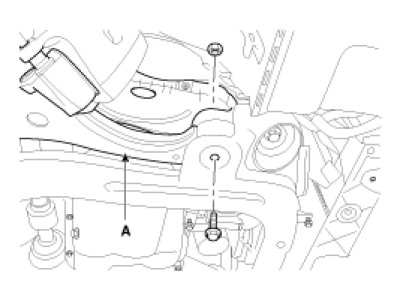

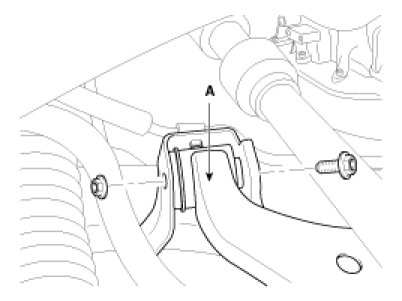

3. Remove the front lower arm (A) and then loosen the bolts & nuts.

Tightening torque
Front:
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)
Rear:
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)








4. Installation is the reverse of removal.

Replacement

1. Remove the front wheel & tire.

Tightening torque:
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

CAUTION:
Be careful not to damage to the hub bolts when removing the front wheel & tire.

2. Loosen the bolt & nut and then remove the lower arm (A).

Tightening torque:
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)




3. Remove the front lower arm (A) and then loosen the bolts & nuts.

Tightening torque
Front:
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)
Rear:
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)








4. Installation is the reverse of removal.

Inspection

1. Check the bushing for wear and deterioration.
2. Check the all bolts and nuts.
