Cruise Control Servo: Testing and Inspection
ASCD Actuator/ASCD Pump:
1.
Disconnect A.S.C.D. actuator/A.S.C.D. pump connector.
2.

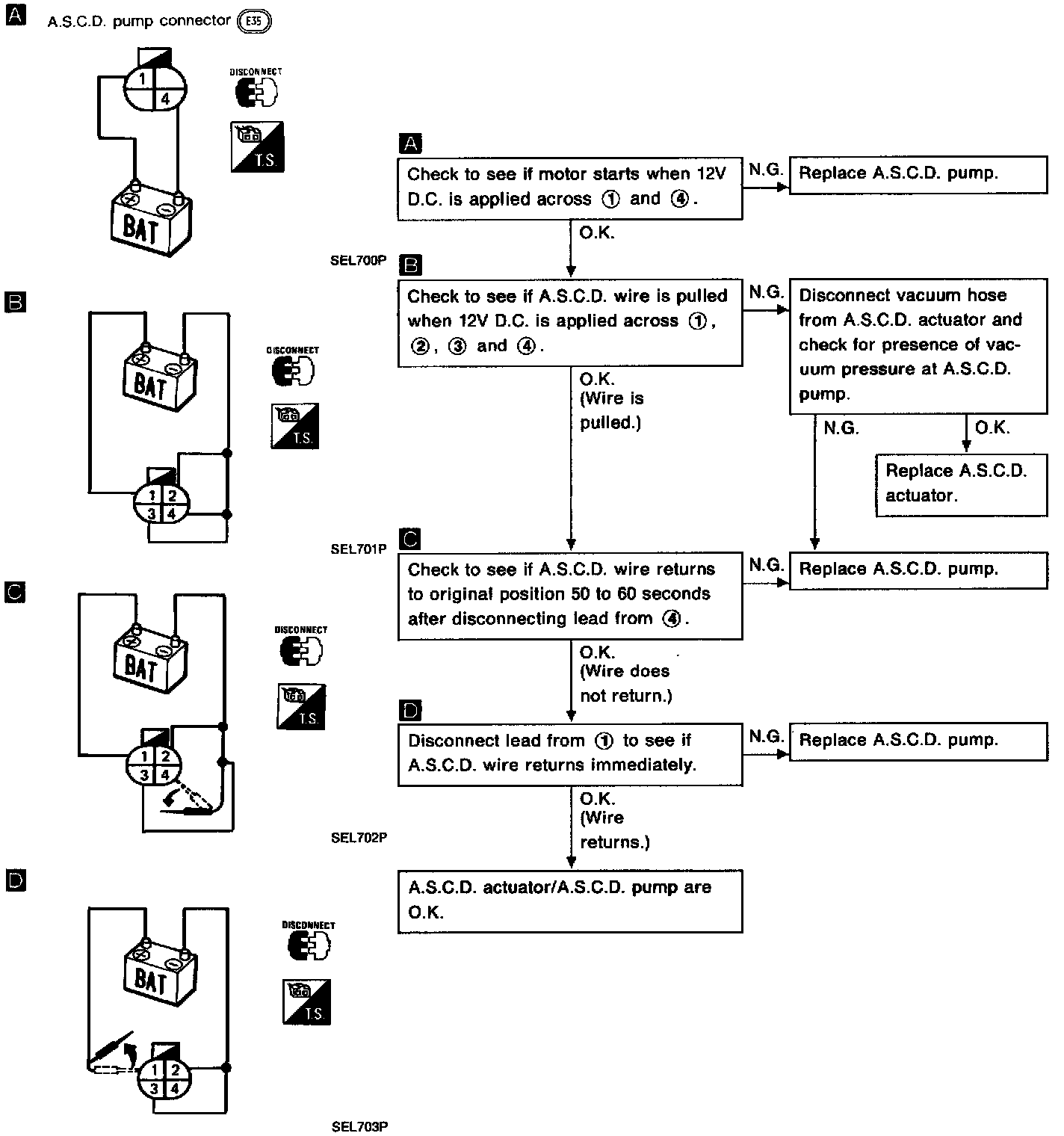

Check A.S.C.D. actuator/A.S.C.D. pump operations as shown.
