Ignition Timing - Adapter Service Tool

Models: 1993-94 J30
Section: Engine Fuel
Classification: EF&EC93-003
Bulletin No.: ITB93-064
Date: December 9, 1993

J30 (JY32) IGNITION TIMING ADAPTER SERVICE TOOL

APPLIED MODELS:
1993-4 J30 (JY32) with VG30 Engine

SERVICE INFORMATION:

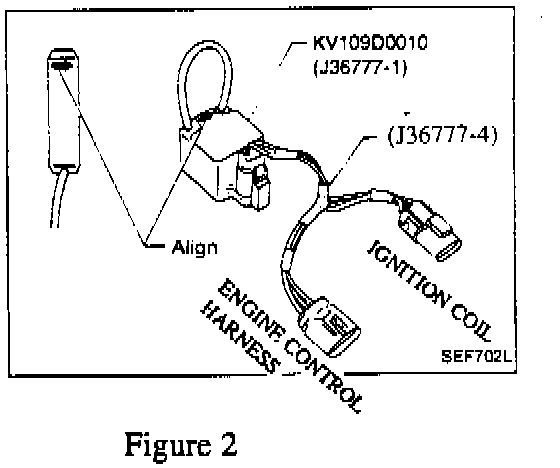

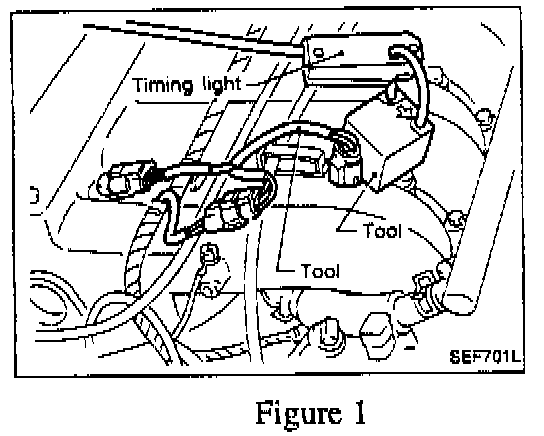

The 1993-4 J30 (JY32) with VG30 Engine has a new shape power transistor harness connector on the ignition coil side (Figure 1). Evaluation of ignition timing on this vehicle requires a different Adapter Service Tool, P/N J36777-4 (Figure 2).

NOTE:
The above-referenced Special Adapter Tool, P/N J36777-4, may be ordered from Kent-Moore [1-800-345-2233]. It is included in J36777-INF, Ignition Timing Adapter Kit, which was shipped as an "Essential Tool."
