Diode Check

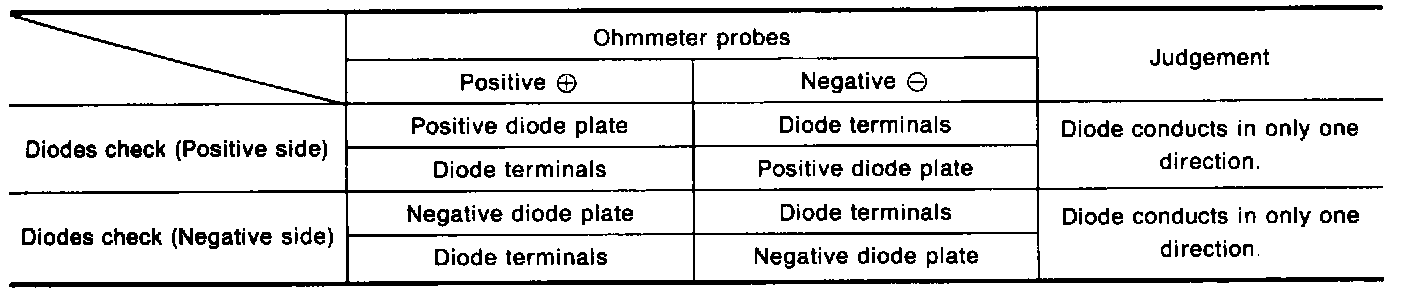

Diode Check Chart:

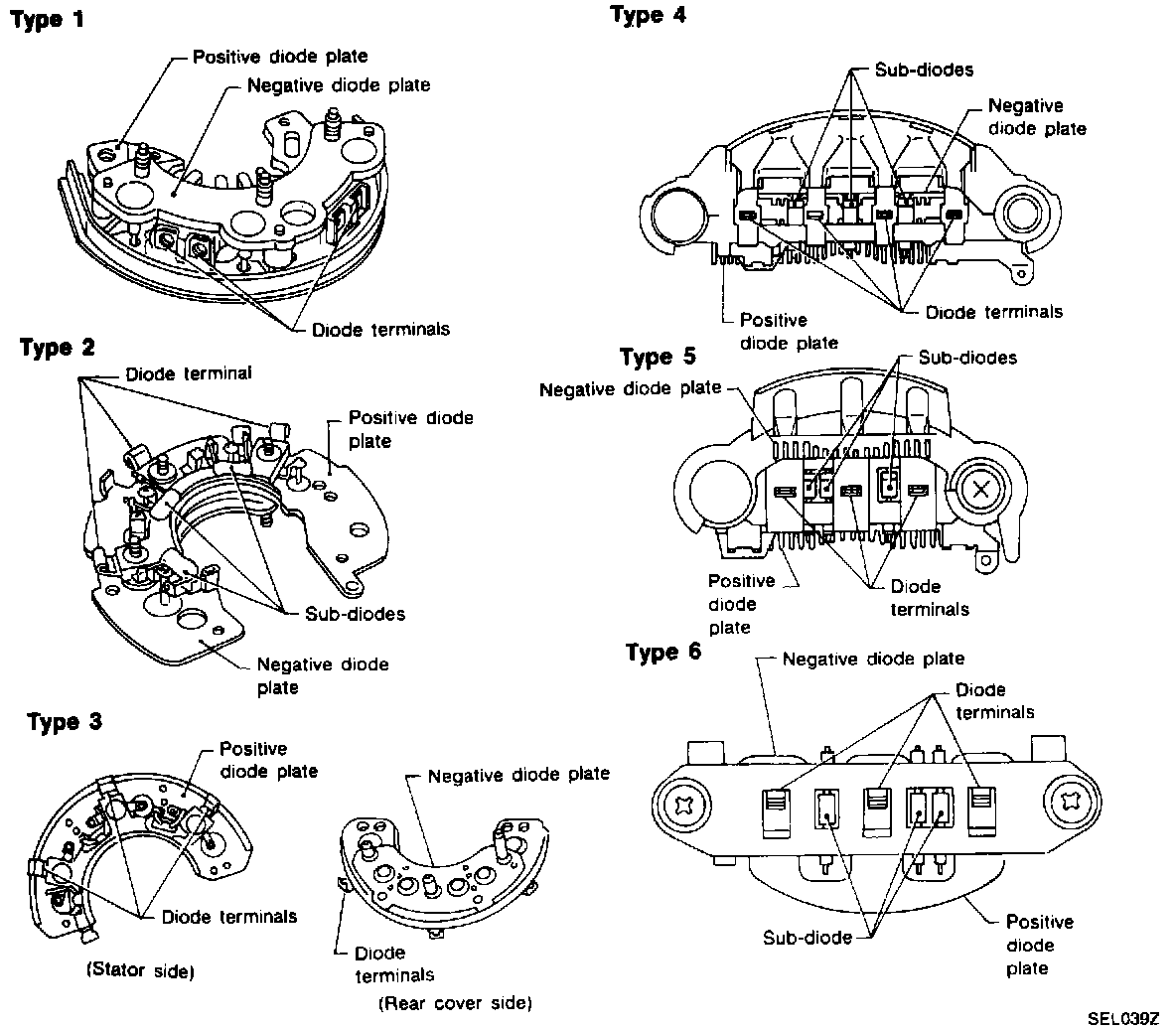

Diode Check:




^ Use an ohmmeter to check condition of diodes as indicated in chart below.
^ If any of the test results is not satisfactory, replace diode assembly.
