Symptom Matrix Chart

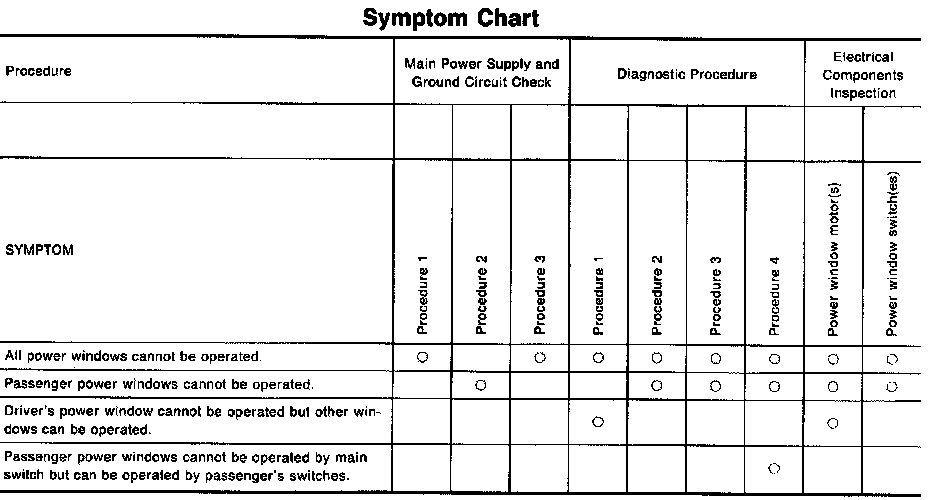

Symptom Chart:
Since left and right component parts are basically the same, harness layout and methods for electrical components inspection are shown for one side only. Although methods for checking component parts on both sides are described in the flow chart, making it easier to troubleshoot, apply checking procedures to either side that have malfunction during trouble diagnoses.
