Access Cover: Service and Repair

ENGINE ROOM COVER





Removal and Installation

REMOVAL
^ Remove clips on back with clip driver for air duct.

CAUTION: Do not damage or scratch cover when installing or removing.

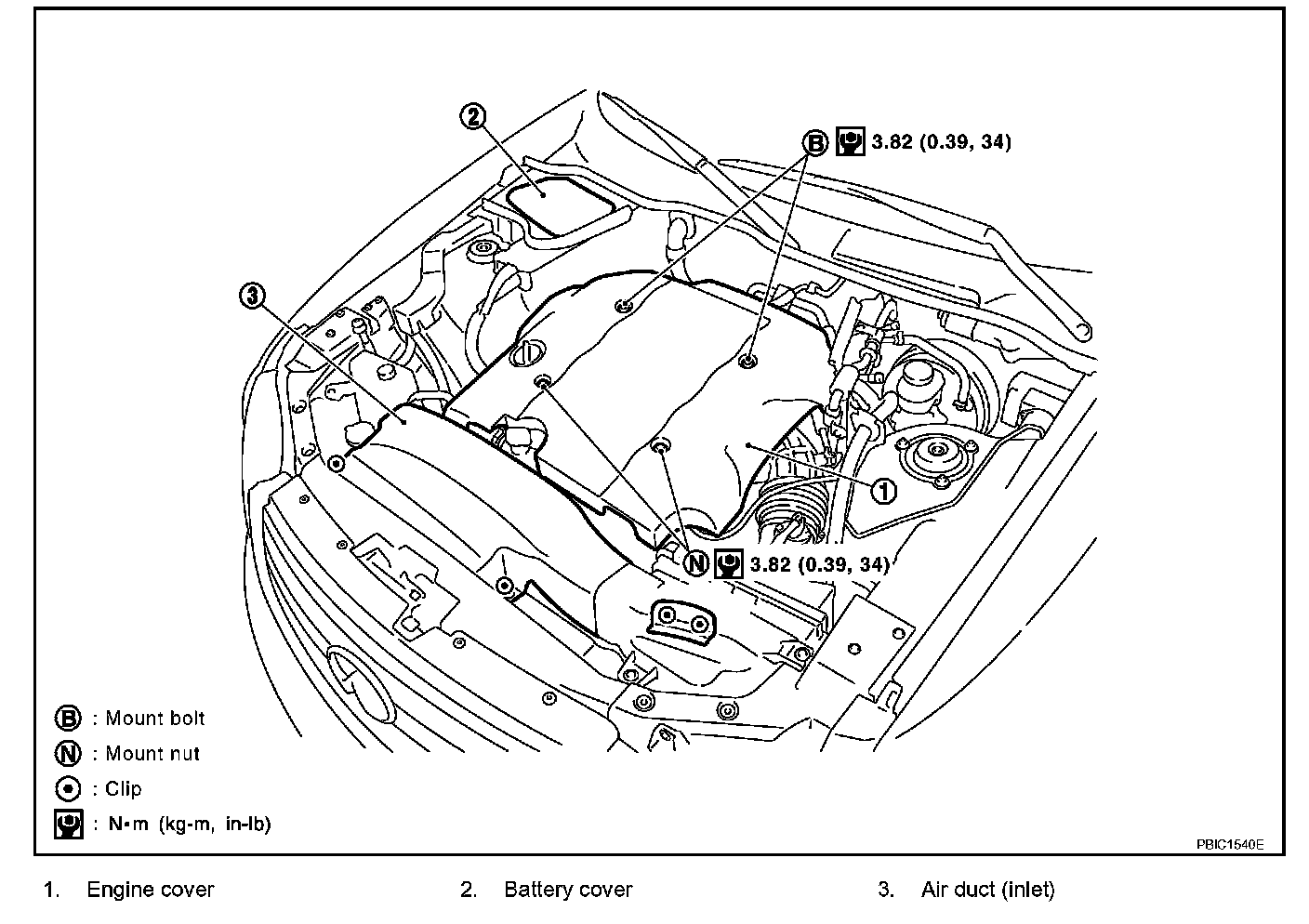

^ Major parts and inspection points under each cover are as follows; (numbered as in illustration)

1. Upper side of engine assembly and power steering reservoir tank
2. Relay and Battery
3. Engine assembly front side, drive belts and cooling fan

INSTALLATION
Install in the reverse order of removal.
