Oil Pan, Engine

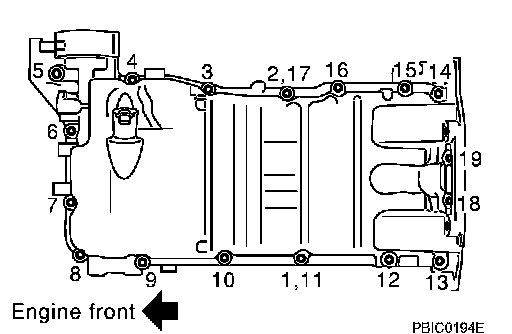

Tighten bolts in numerical order as shown.
Tighten bolts No. 1 and No. 2 in two steps. The numerical order No. 11 and No. 17 shown second steps.
NOTE: Refer to the below for locating bolts.
M6 x 30 mm (1.18 inch): No. 18,19
M8 x 100 mm (3.94 inch): No. 5, 9
M8 x 45 mm (1.77 inch): Except the above
