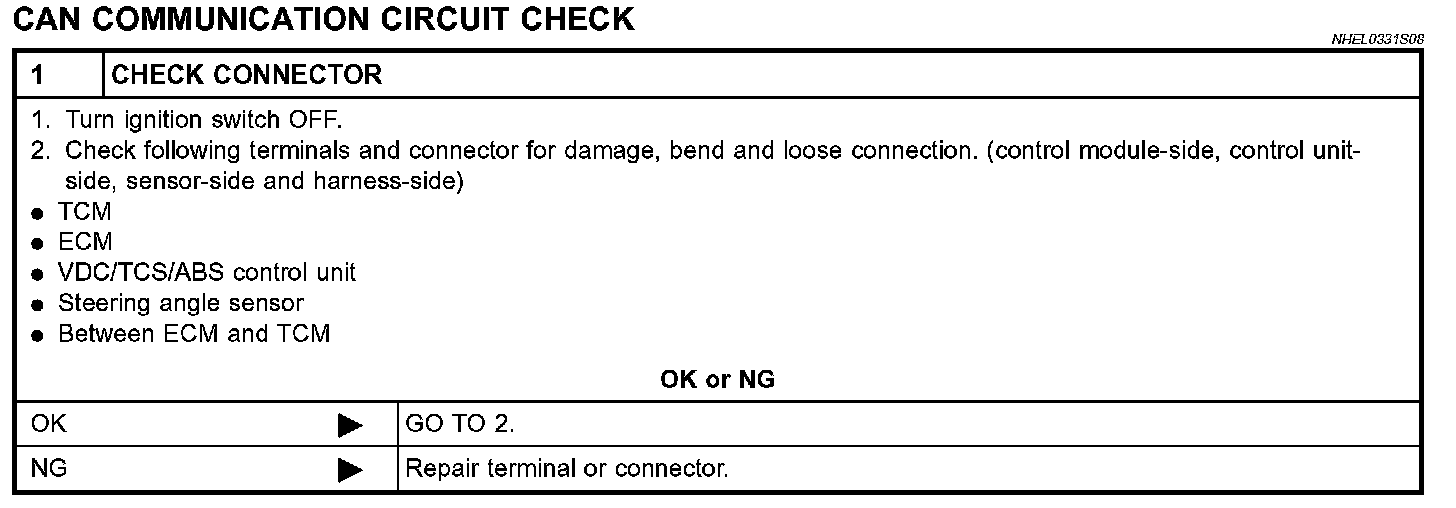

CAN Communication circuit Check

CAN Communication Circuit Check (EL-471):




CAN Communication Circuit Check (EL-472):




CAN Communication Circuit Check (EL-473):




CAN Communication Circuit Check (EL-474):




CAN Communication Circuit Check (EL-475):




CAN Communication Circuit Check (EL-476):
