Initial Inspection (Basic Inspection)

Step 1 - 2:

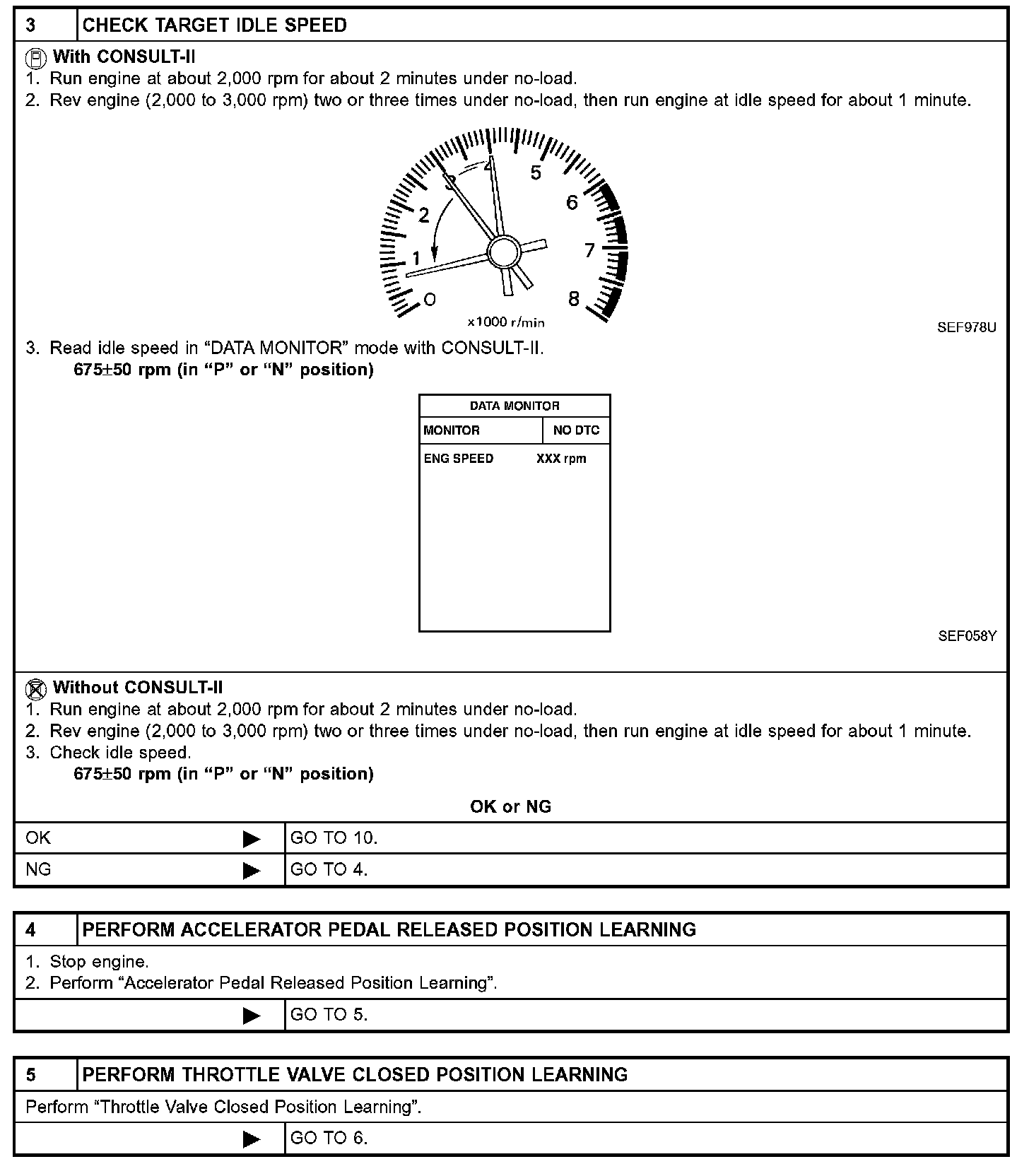

Step 3 - 5:

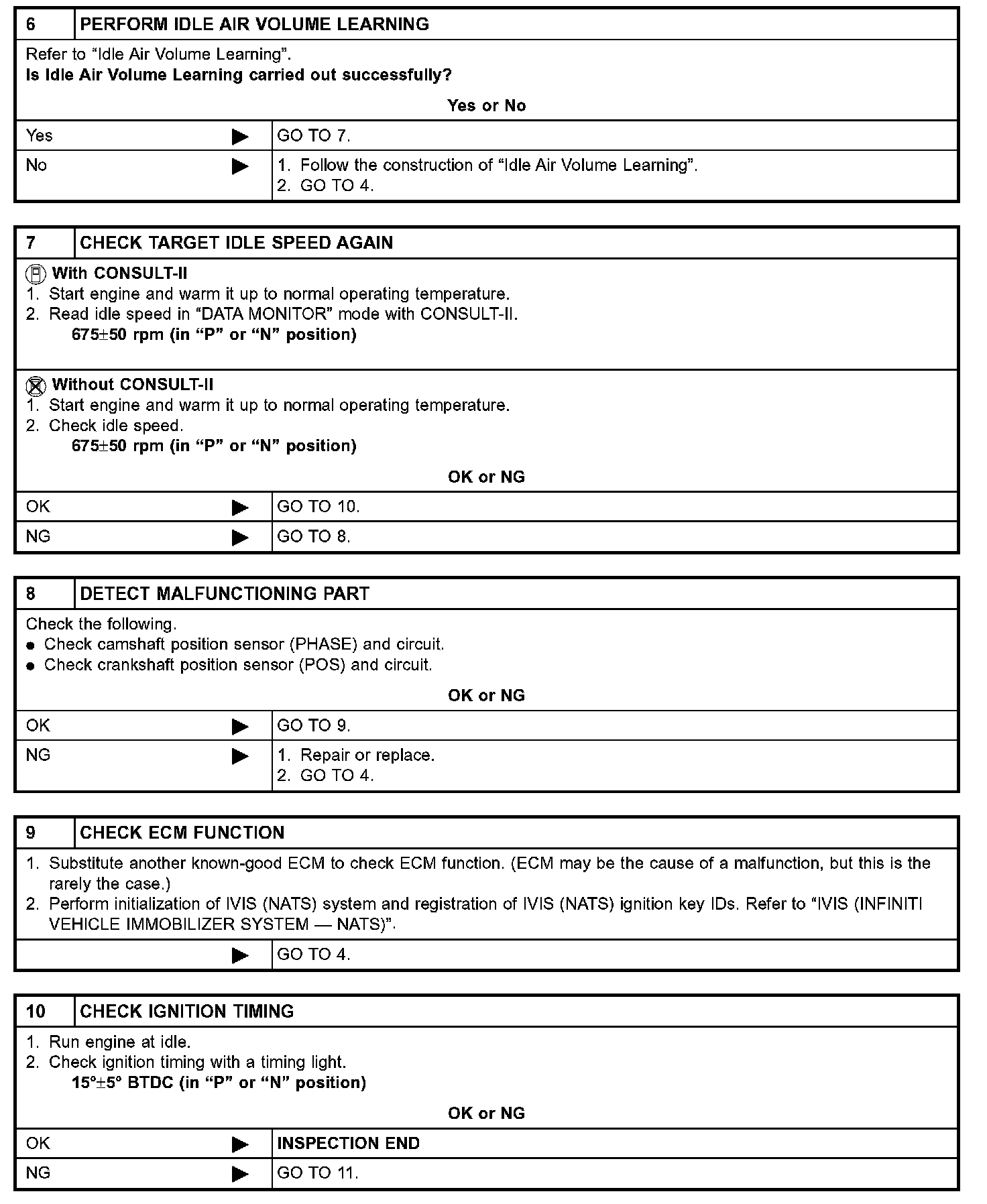

Step 6 - 10:

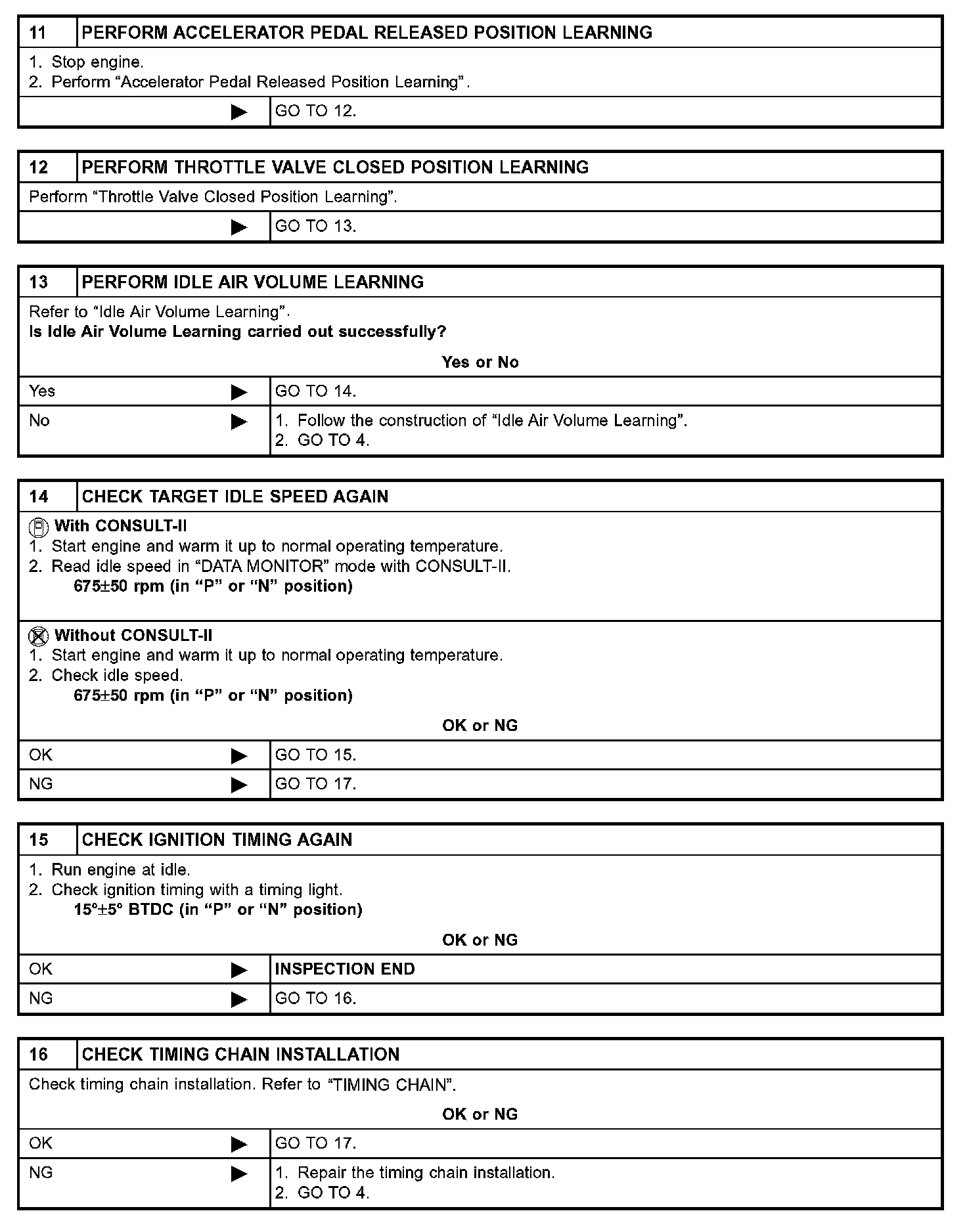

Step 11 - 16:

Step 17 - 18:

Precaution:
Perform Basic Inspection without electrical or mechanical loads applied;
- Headlamp switch is OFF,
- Air conditioner switch is OFF,
- Rear window defogger switch is OFF,
- Steering wheel is in the straight-ahead position, etc.
