Navigation Module: Service and Repair
Removal and Installation of AV and NAVI Control UnitREMOVAL 1.
Refer to "Precautions for AV and NAVI Control Unit Replacement". Take a note of necessary items.
2.
Remove trunk front finisher.
3.

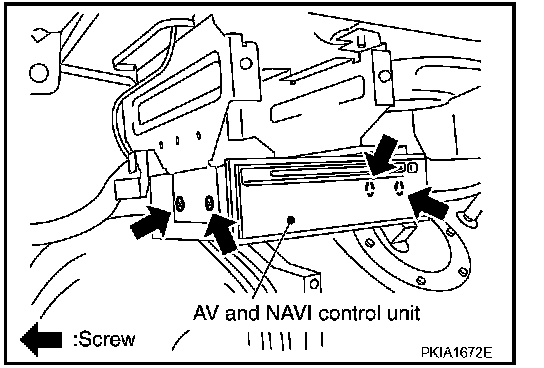

Remove screws (4), and remove AV and NAVI control unit with power tool.
INSTALLATIONInstall in the reverse order of removal.
