Oil Pan, Engine

Oil Pan

AWD Models:







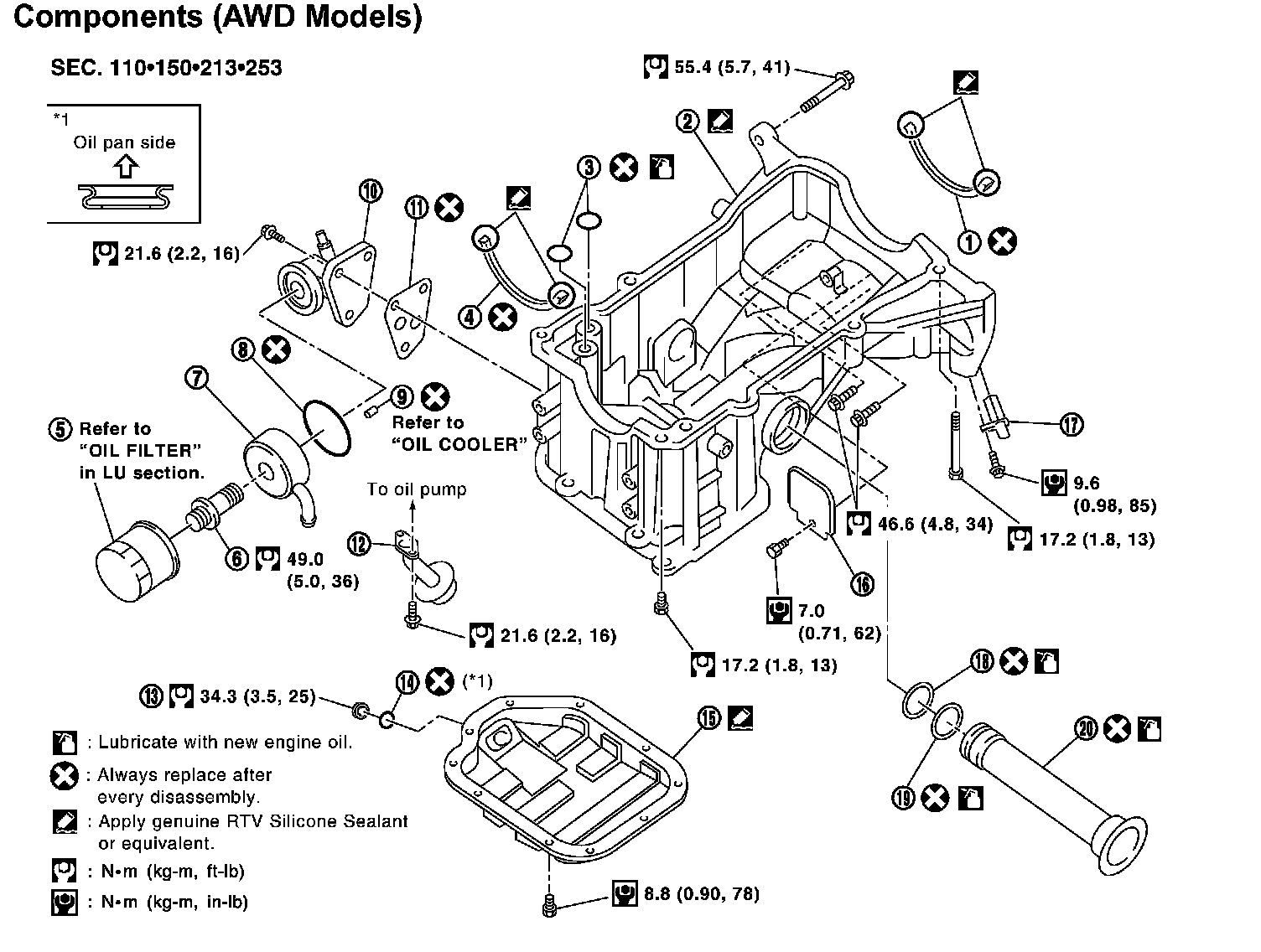

Image Symbols:





Oil pan (upper)





Tighten mounting bolts in numerical order as shown in the figure.
There are two types of mounting bolts. Refer to the following for locating bolts.
M8 x 100 mm (3.94 inch): 5, 7, 8, 11
M8 x 25 mm (0.98 inch): Except the above





Oil pan (lower).
Tighten mounting bolts in numerical order as shown in the figure.
Install oil pan drain plug. Refer to the figure of components for installation direction of drain plug washer. Refer to EM-35, Components (AWD Models).
Install in the reverse order of removal after this step.
