Front Fender: Service and Repair

FRONT FENDER

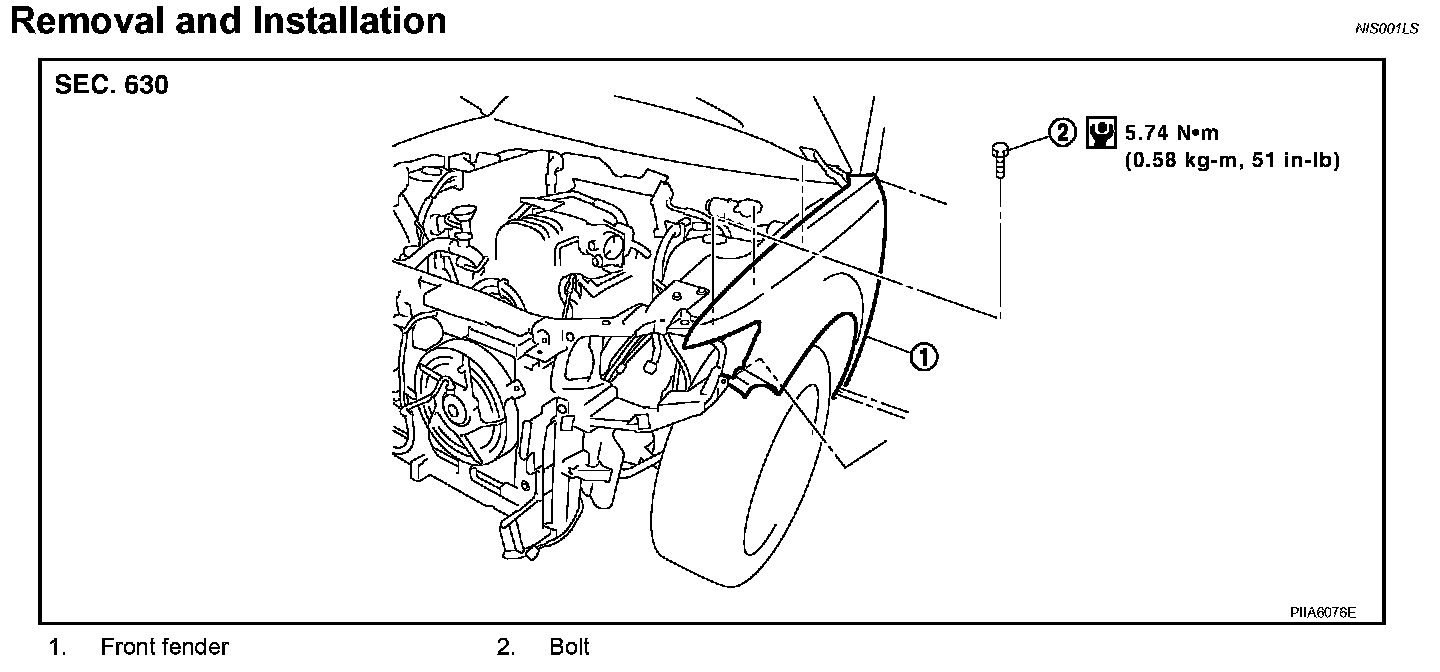

Removal and Installation

REMOVAL
1. Remove the front bumper.
2. Remove the headlamp.
3. Remove the front fender protector.
4. Remove the mounting bolt and remove the front fender.

CAUTION: While removing use a shop cloth to protect body from damaging.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- After installing, apply touch-up paint (the body color) onto the head of the front fender mounting bolts.
- After installing, check front fender adjustment. Refer to "Fitting Adjustment".
