Radiator Support: Service and Repair

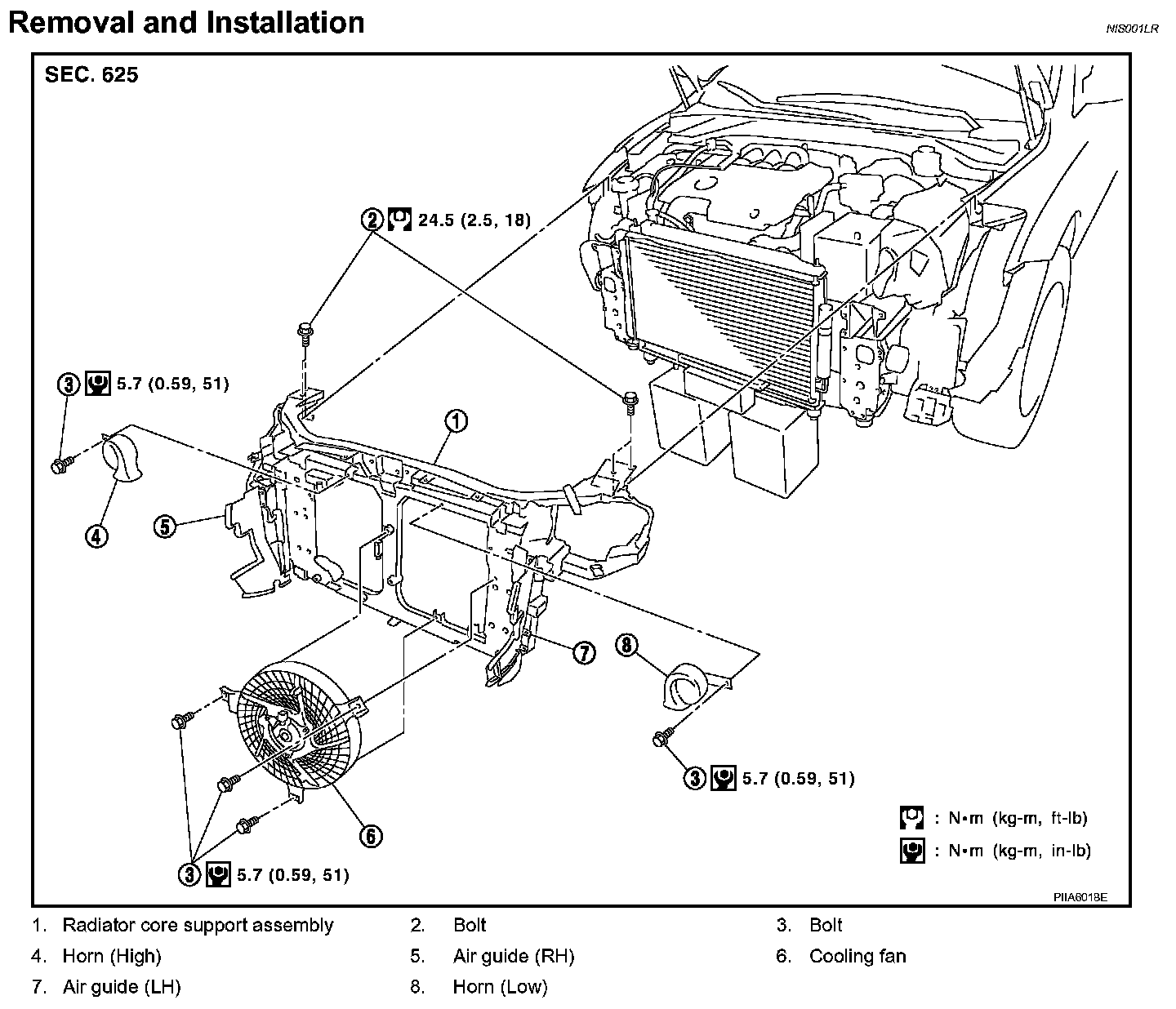

RADIATOR CORE SUPPORT




Removal and Installation

REMOVAL
1. Remove the front fender protector.
2. Remove the front bumper.
3. Remove the ICC.
4. Remove the headlamp.
5. Remove the washer tank.
6. Remove the resonator. Refer to "AIR CLEANER AND AIR DUCT" or "AIR CLEANER AND AIR DUCT".
7. Remove the power steering oil cooler. Refer to "HYDRAULIC LINE".
8. Remove the ambient sensor.
9. Remove the crash zone sensor.
10. Remove the horn connector, cooling fan connector and harness clip.
11. Remove the hood lock and disconnect hood lock control cable.
12. Remove the reservoir tank.
13. Remove mounting blots and remove radiator core support. Remove mounting bolts with power tool.
14. After remove radiator core support, remove the horn, cooling fan.

INSTALLATION
Install in the reverse order of removal.
