System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)

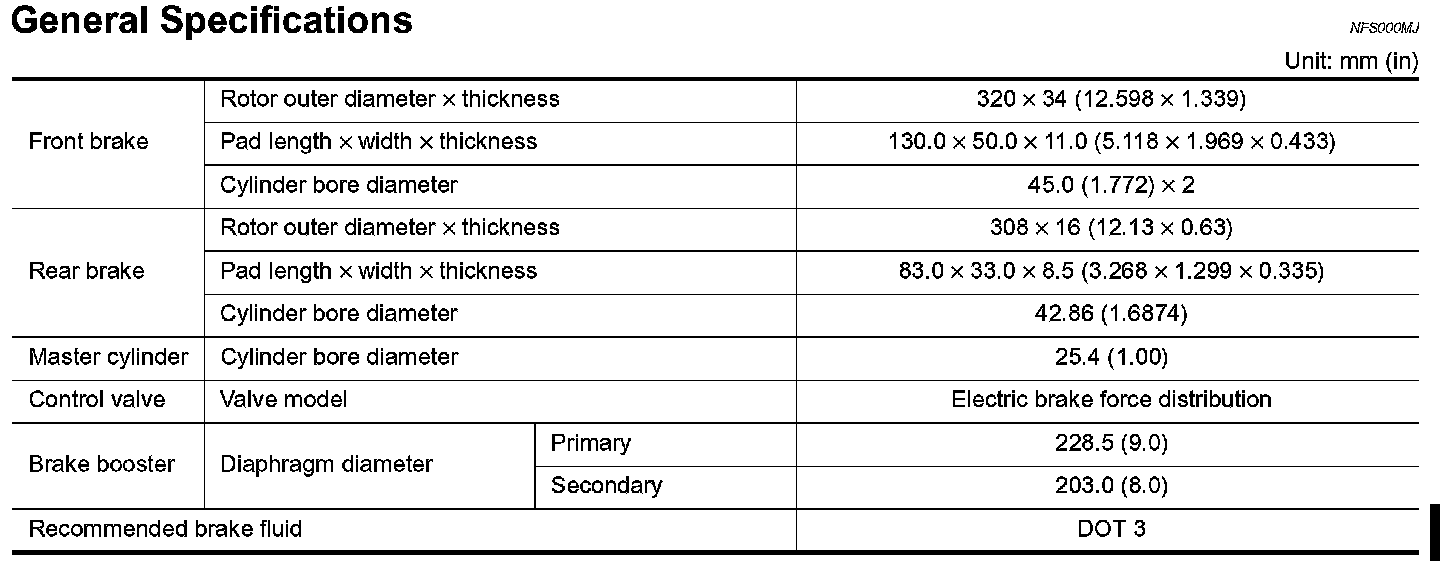

General Specifications

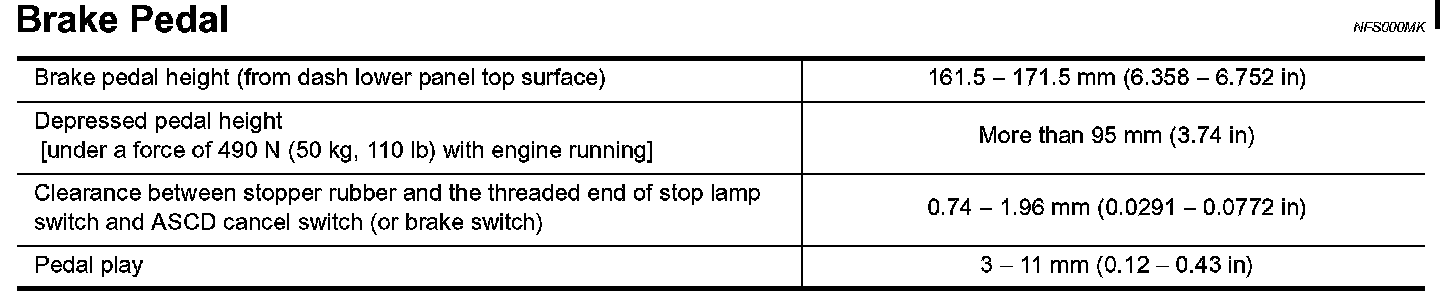

Brake Pedal

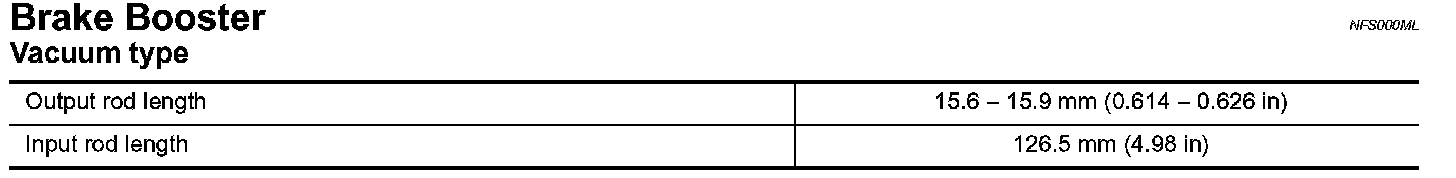

Brake Booster





Vacuum type

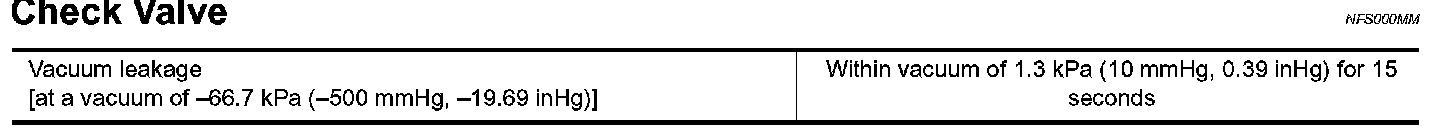

Check Valve

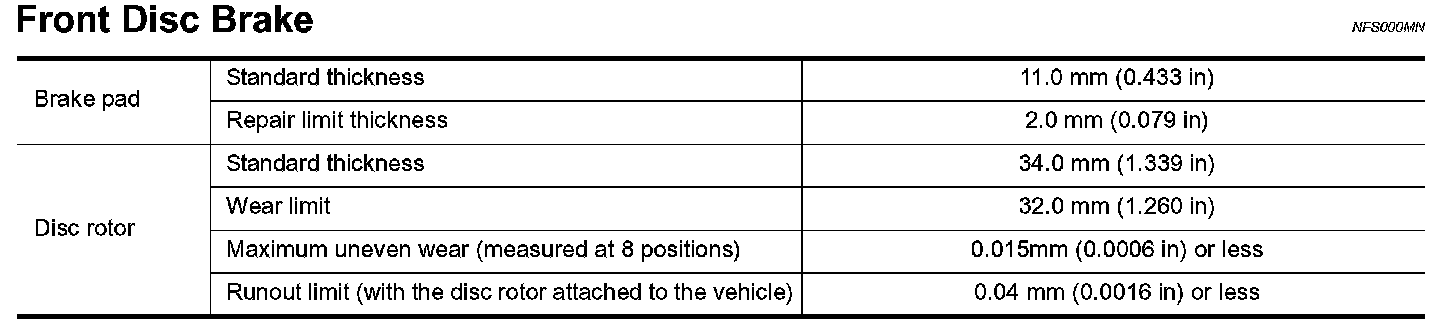

Front Disc Brake

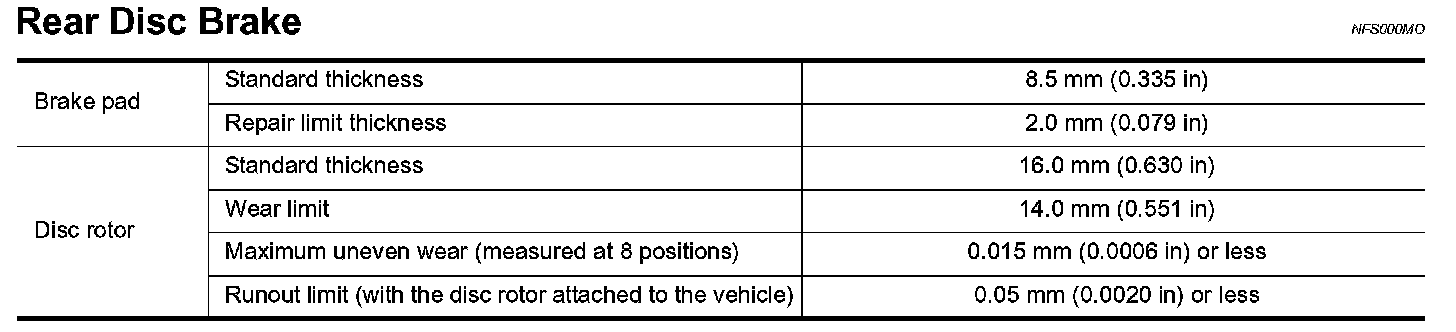

Rear Disc Brake
