Keyless Entry Receiver: Service and Repair

Exploded View IP-11 (Part 1):

Exploded View IP-11 (Part 2):

Exploded View

REMOTE KEYLESS ENTRY RECEIVER

Exploded View
Refer to Exploded View IP-11.

Removal and Installation

REMOVAL
1. Remove the instrument assist lower panel.

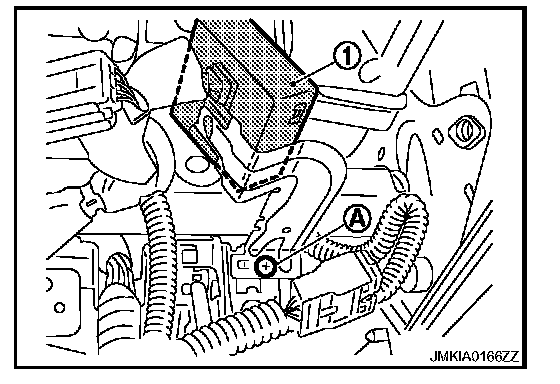

2. Remove the remote keyless entry receiver mounting bolt (A), and then remove remote keyless entry receiver (1).

INSTALLATION
Install in the reverse order of removal.
