Campaign P7220 - Intellignet Key Replacement: Overview

Reference:
ITB07-026

Date:
September 3, 2007

VOLUNTARY SERVICE CAMPAIGN 2007 G35 SEDAN INTELLIGENT KEY

CAMPAIGN ID #
P7220

APPLIED VEHICLES:
2007 G35 (V36) Sedan only

Excludes G35 Coupe (CV35)

APPLIED VINs:
JNKBV61E(*)7M 700042 to 725130

JNKBV61F(*)7M 800017 to 819614

Use Infiniti Net to confirm campaign eligibility

INTRODUCTION

For the 2007 G35 Sedan; Infiniti has determined that some cell phones if allowed to touch the Intelligent Key when receiving or sending a call may alter the electronic code contained in the Intelligent Key. If this happens the Intelligent Key may be damaged and would no longer lock or unlock the doors or start the engine. To correct this potential condition Infiniti is conducting a Voluntary Service Campaign to replace the Intelligent Keys. The improved replacement Intelligent Keys are not susceptible to this type of cell phone interference.

IDENTIFICATION NUMBER

Infiniti has assigned identification number P7220 to this campaign. This number must appear on all communications and documentation of any nature dealing with this Campaign.

DEALER RESPONSIBILITY

Infiniti recommends that dealers correct each vehicle falling within the range of this campaign that enters the service department. This includes vehicles purchased from private parties or presented by transient (tourist) owners and vehicles in a dealer's inventory.

PREPARATION

1. Get new Intelligent Keys from your Parts Department (Kit P/N B85E3 - JK62A)

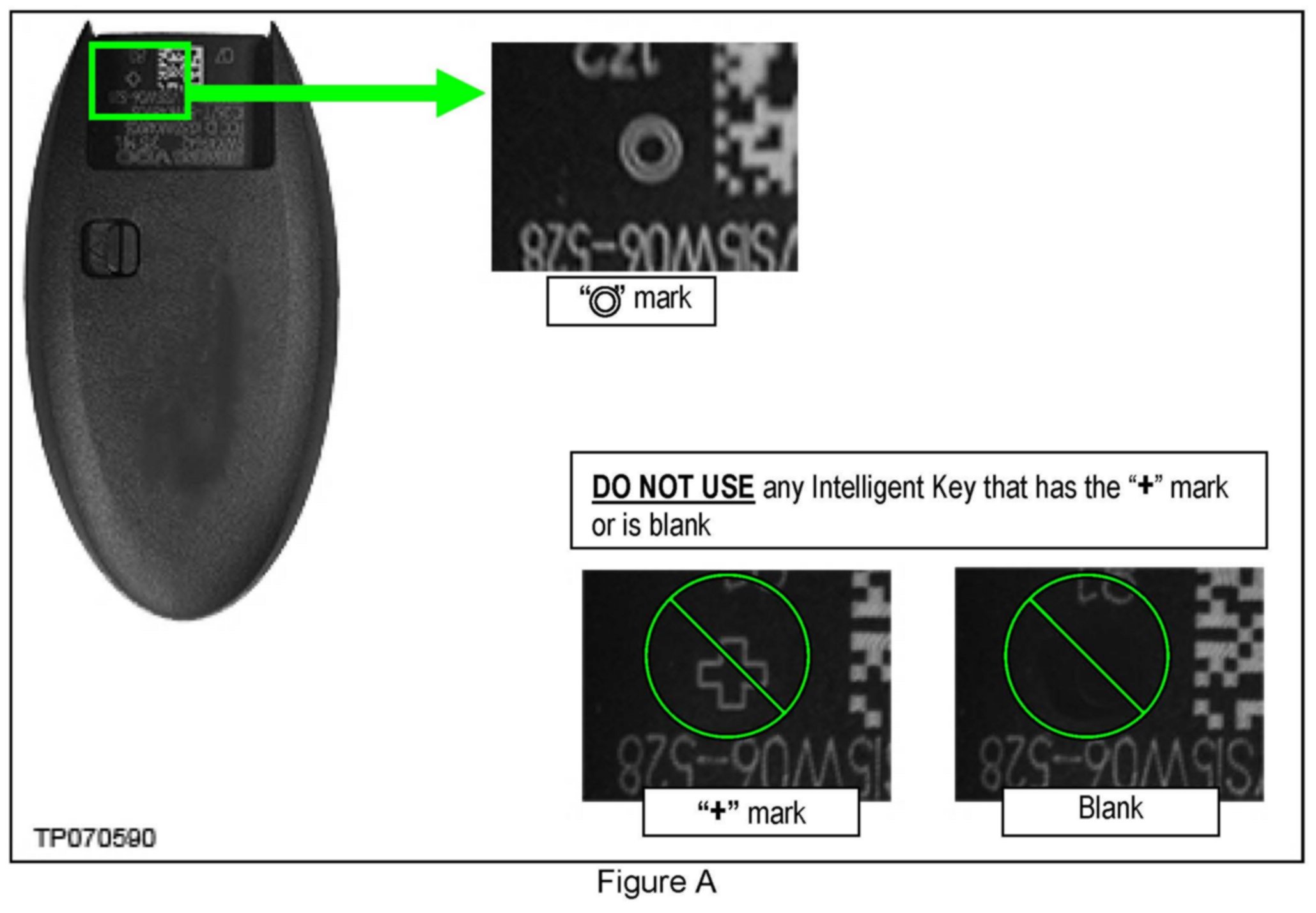

2. Make sure all of the keys you will be registering have the "double circle" marks as shown.

^ The new keys from your parts department should have the "double circle" mark. DO NOT USE any Intelligent key that has the "+" mark or is blank..

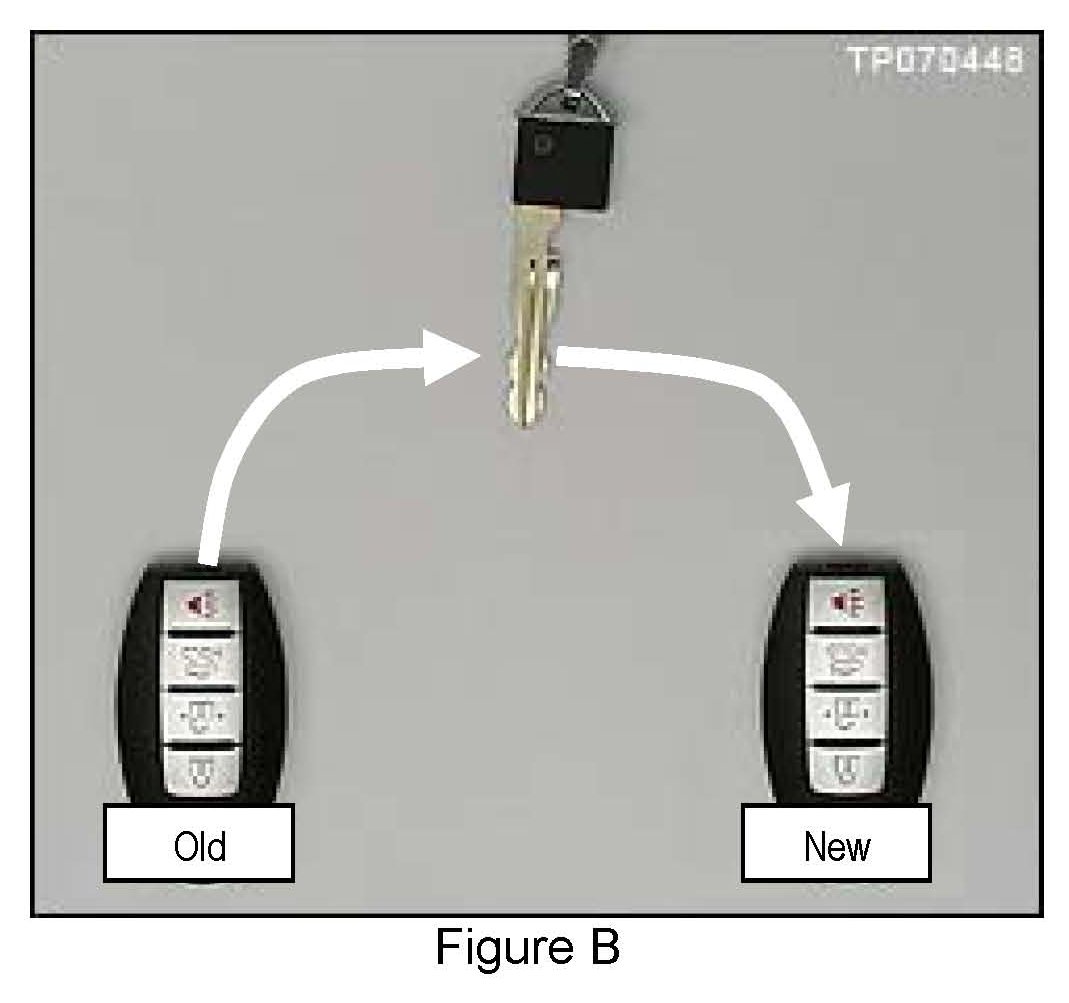

3. The new Intelligent Keys do not come with metal keys.

^ Swap the metal key from the old Intelligent Key to the new Intelligent Key.

4. The CONSULT-III (C-III) PC will be used to perform the Service Procedure in this bulletin.

^ The following must be completed before performing the procedure:

--> Perform all C-III Start-Up procedures.

--> Synchronize C-III with ASIST within the last 10 days.

^ If you need additional information regarding the above items please refer to the CONSULT-III Start-up Guide or information at website or call the ASIST support desk.

5. To perform the Intelligent Key registration Service Procedure in this bulletin you will need the following C-III items:

> AC Adapter

> USB Cable

> Vehicle Interface (VI)

> ASIST Key

> CONSULT-III Card Adapter (for Security Card)

> CONSULT-III Security Card

6. Before starting this procedure:

^ Have all Intelligent Keys to be registered inside the vehicle during the registration process.

^ A maximum of four (4) Intelligent Keys can be registered.

^ Remove any other transponders from the vehicle (such as a Mobil Speed Pass etc.).

^ If this is your first time it is strongly recommended that you read through the entire Service Procedure before starting.
