Parking Assist Control Module

CAMERA CONTROL UNIT

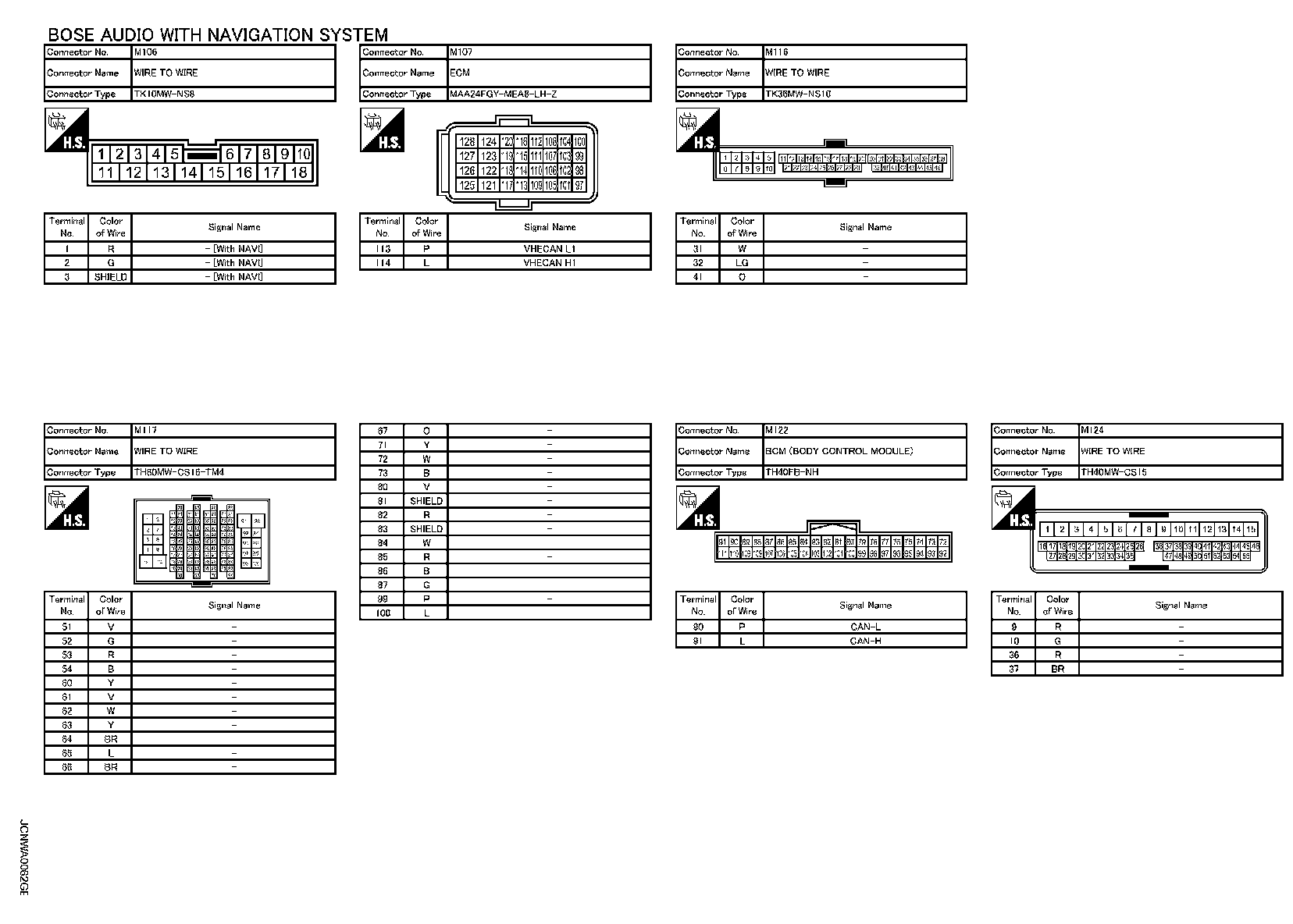

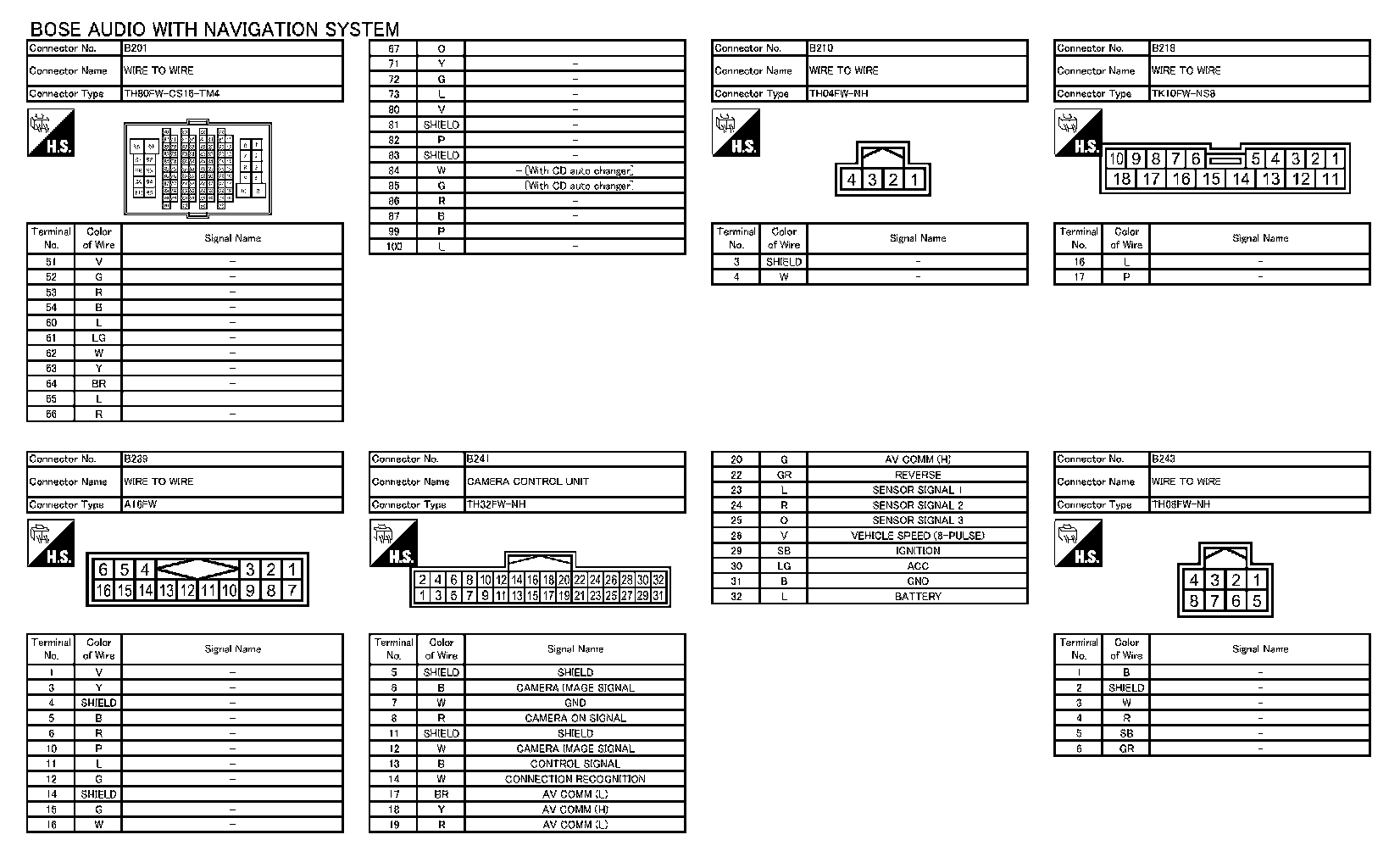

Wiring Diagram - Bose Audio With Navigation System (Part 1):

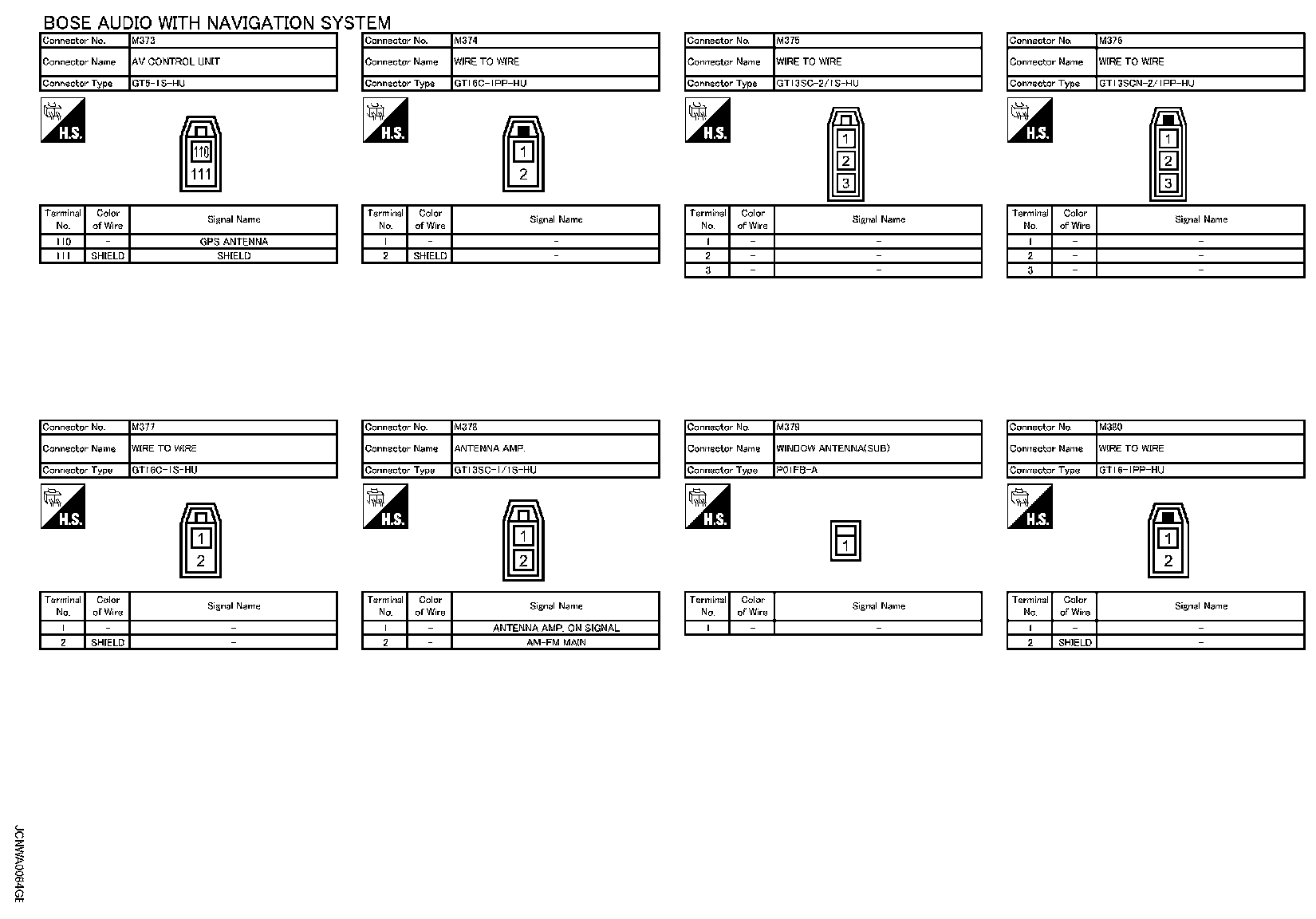

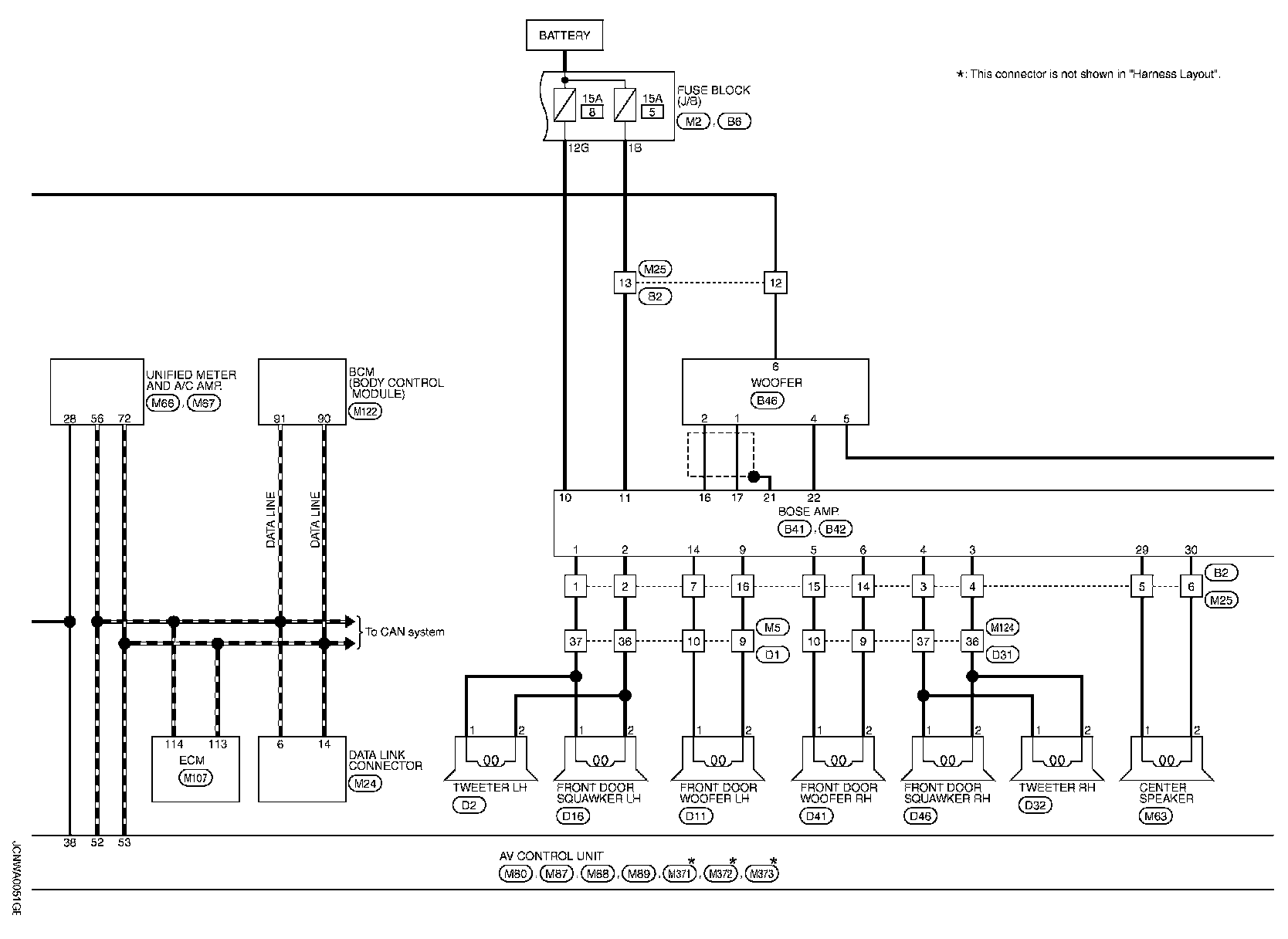

Wiring Diagram - Bose Audio With Navigation System (Part 2):

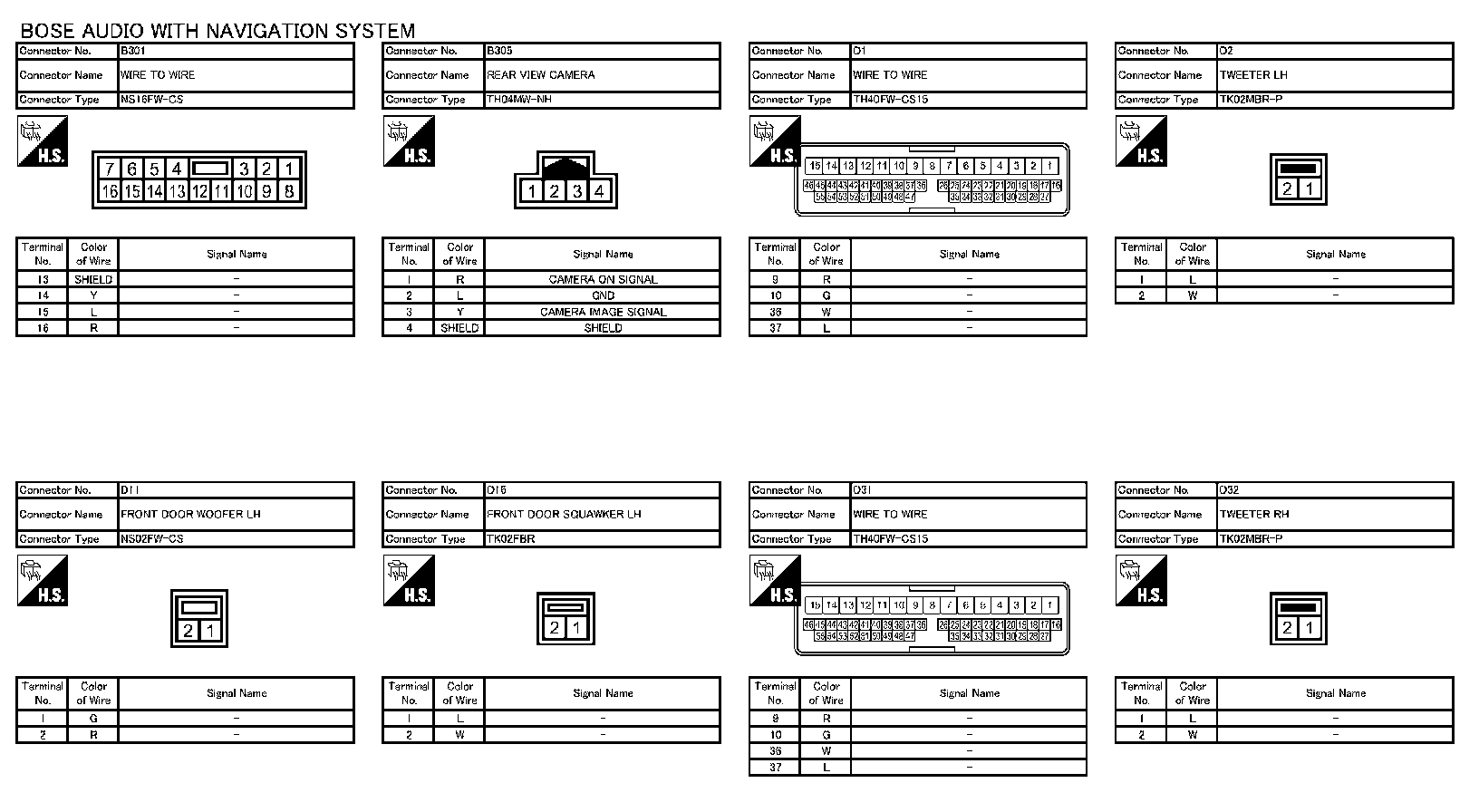

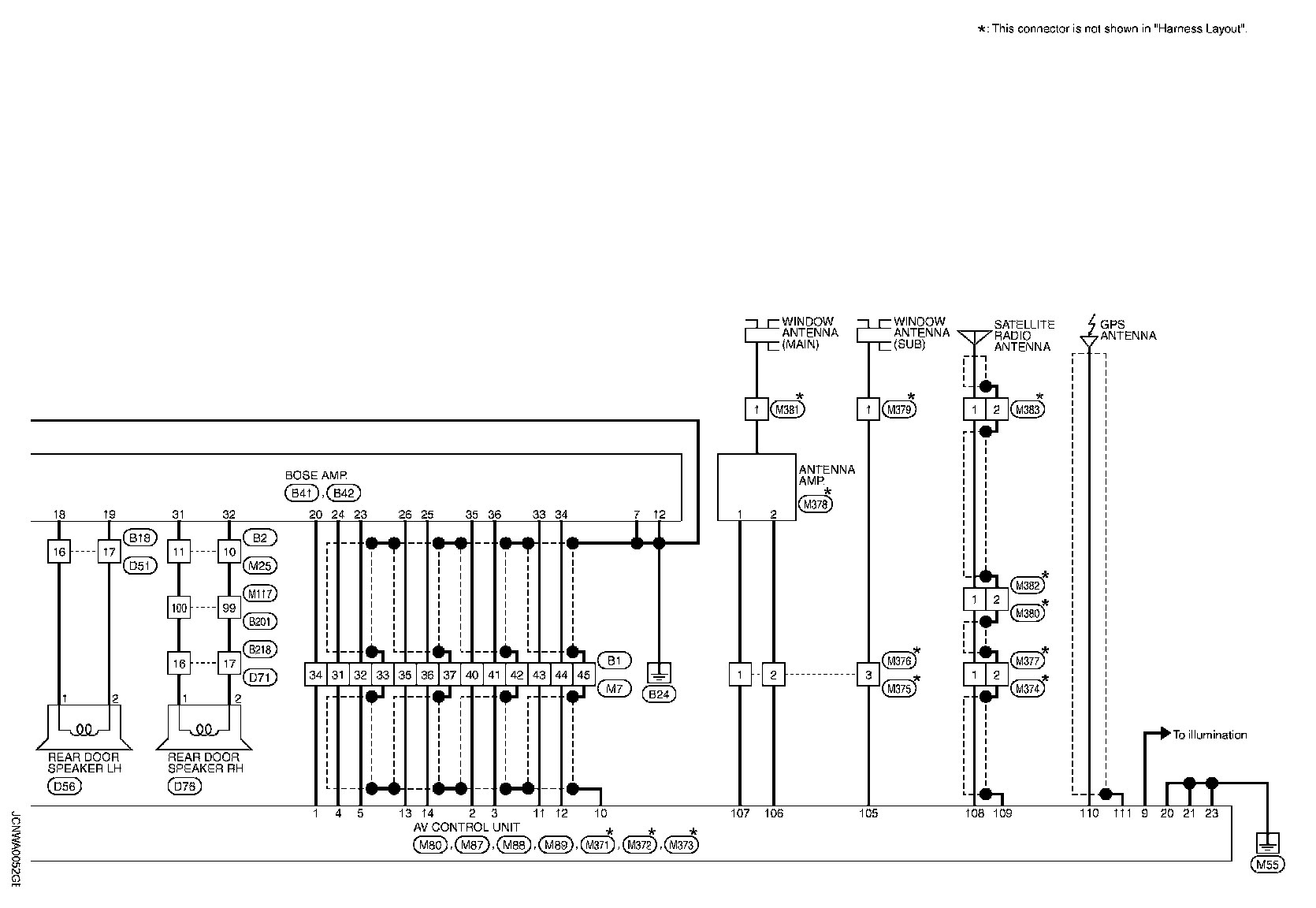

Wiring Diagram - Bose Audio With Navigation System (Part 3):

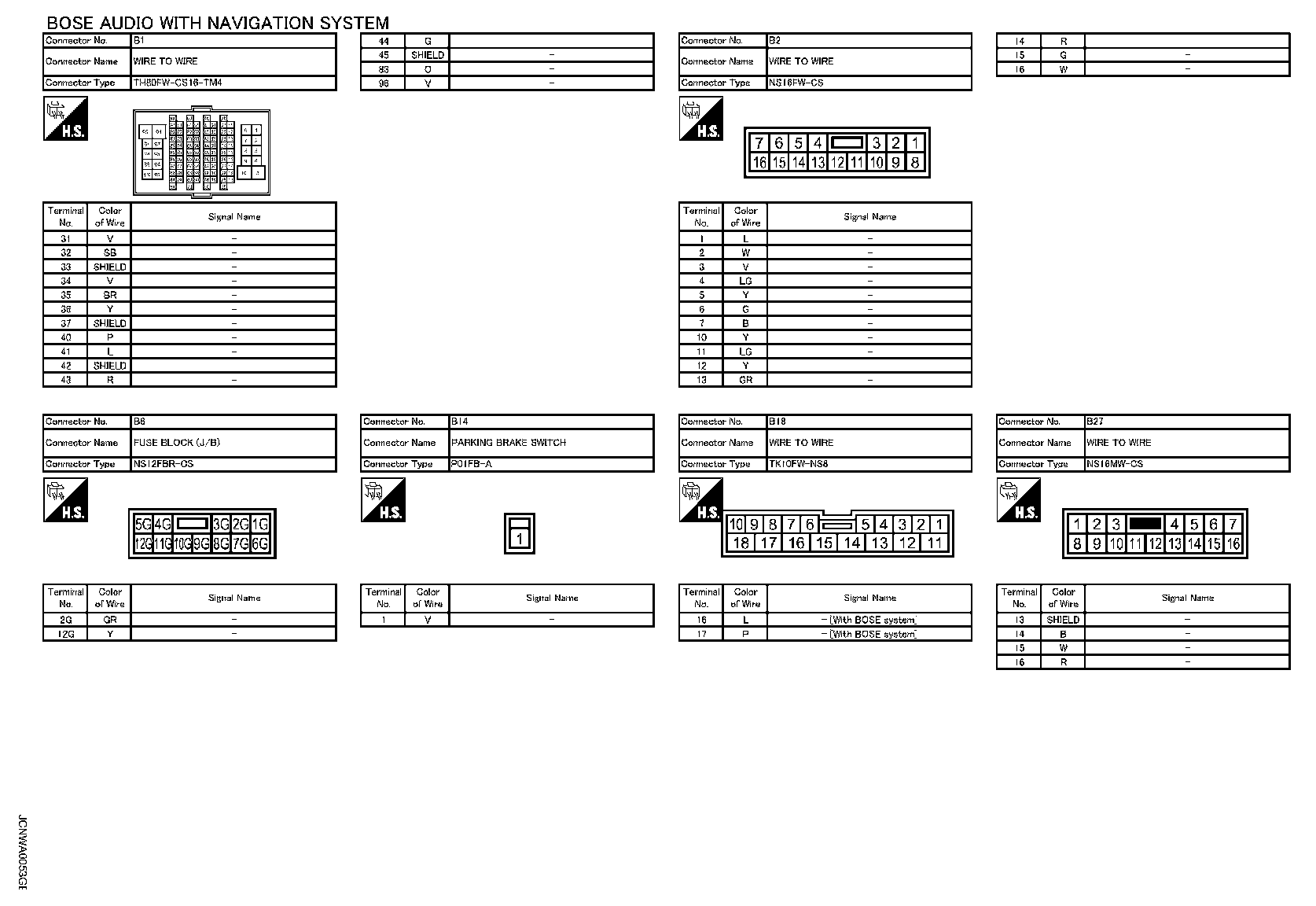

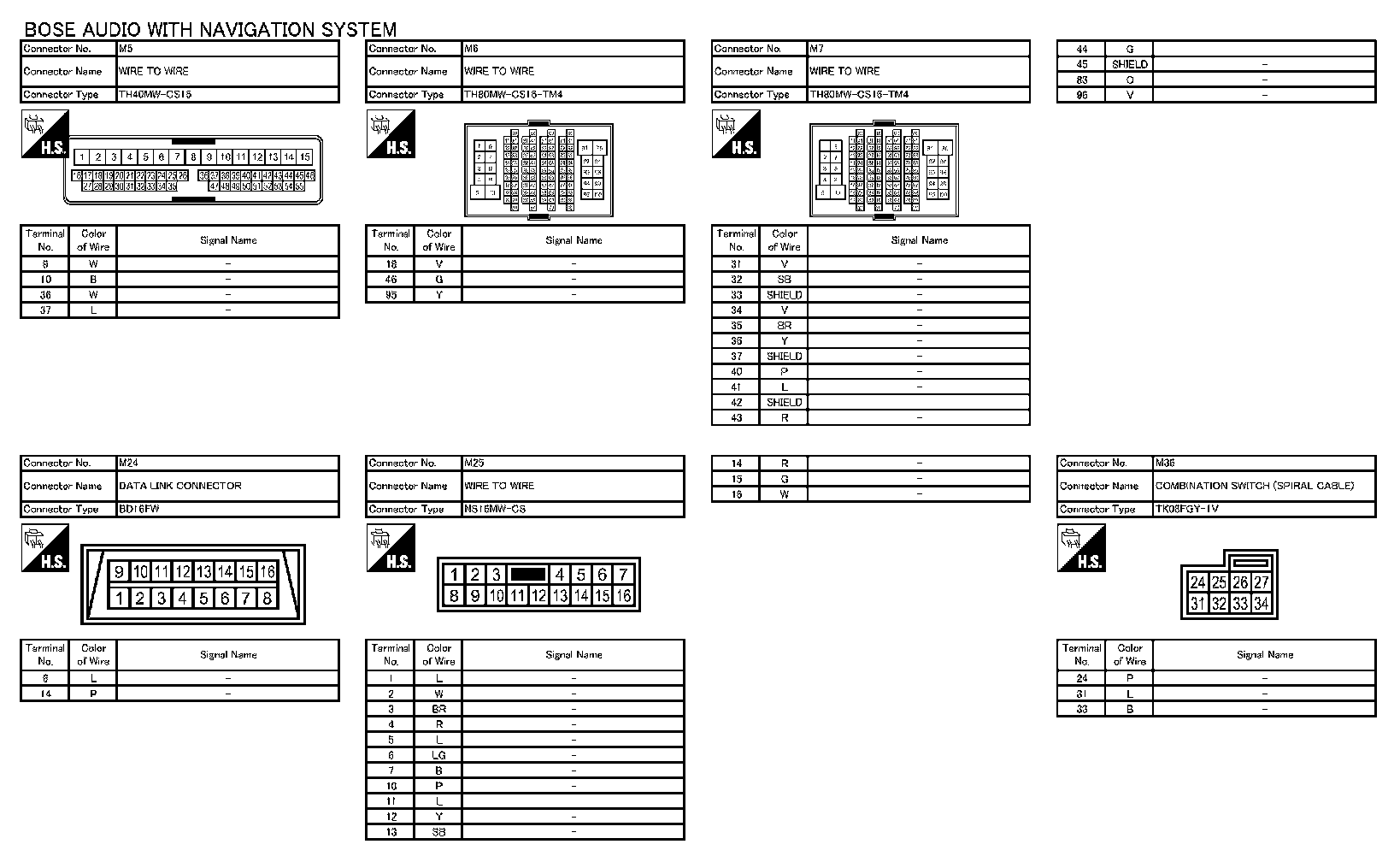

Wiring Diagram - Bose Audio With Navigation System (Part 4):

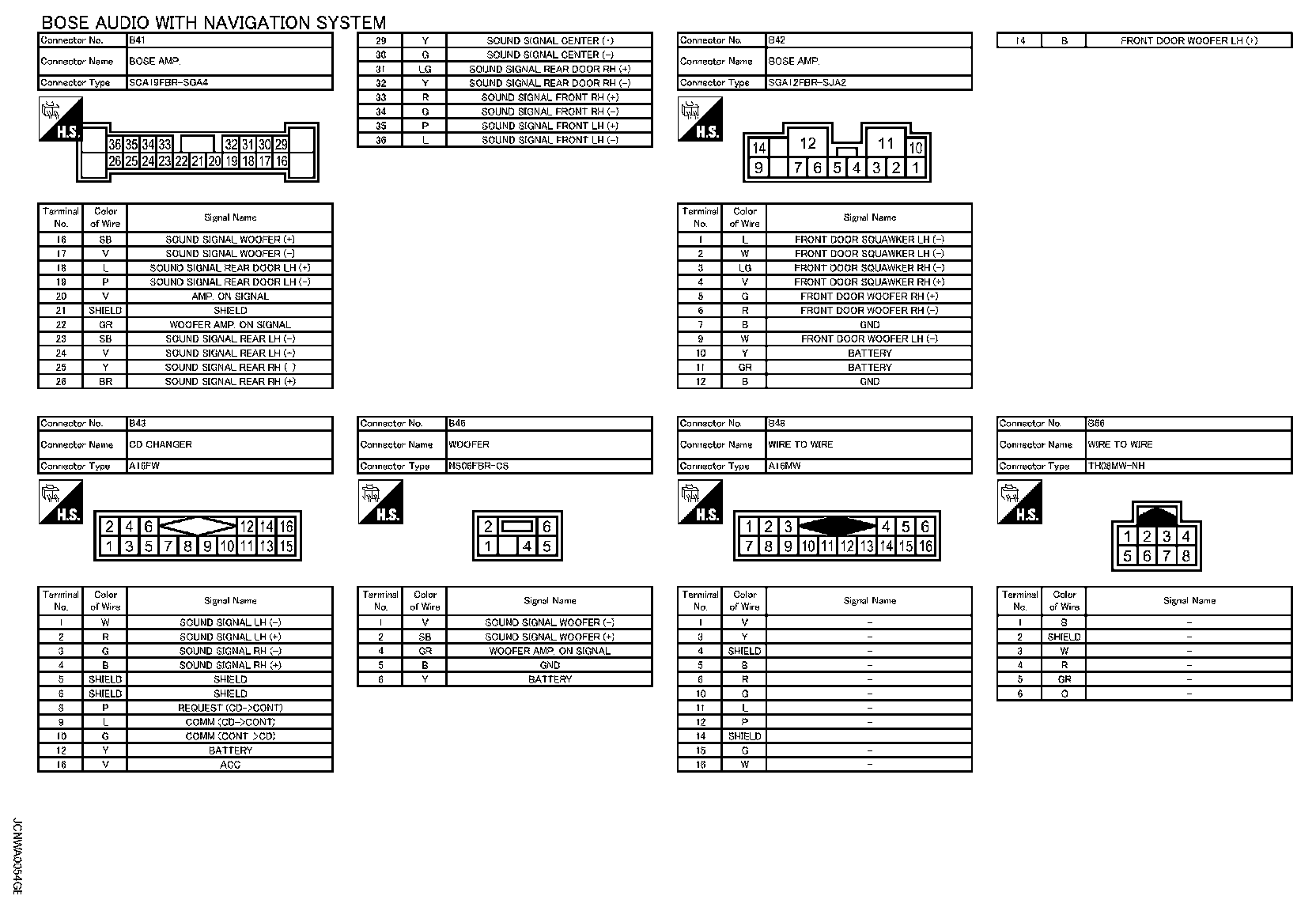

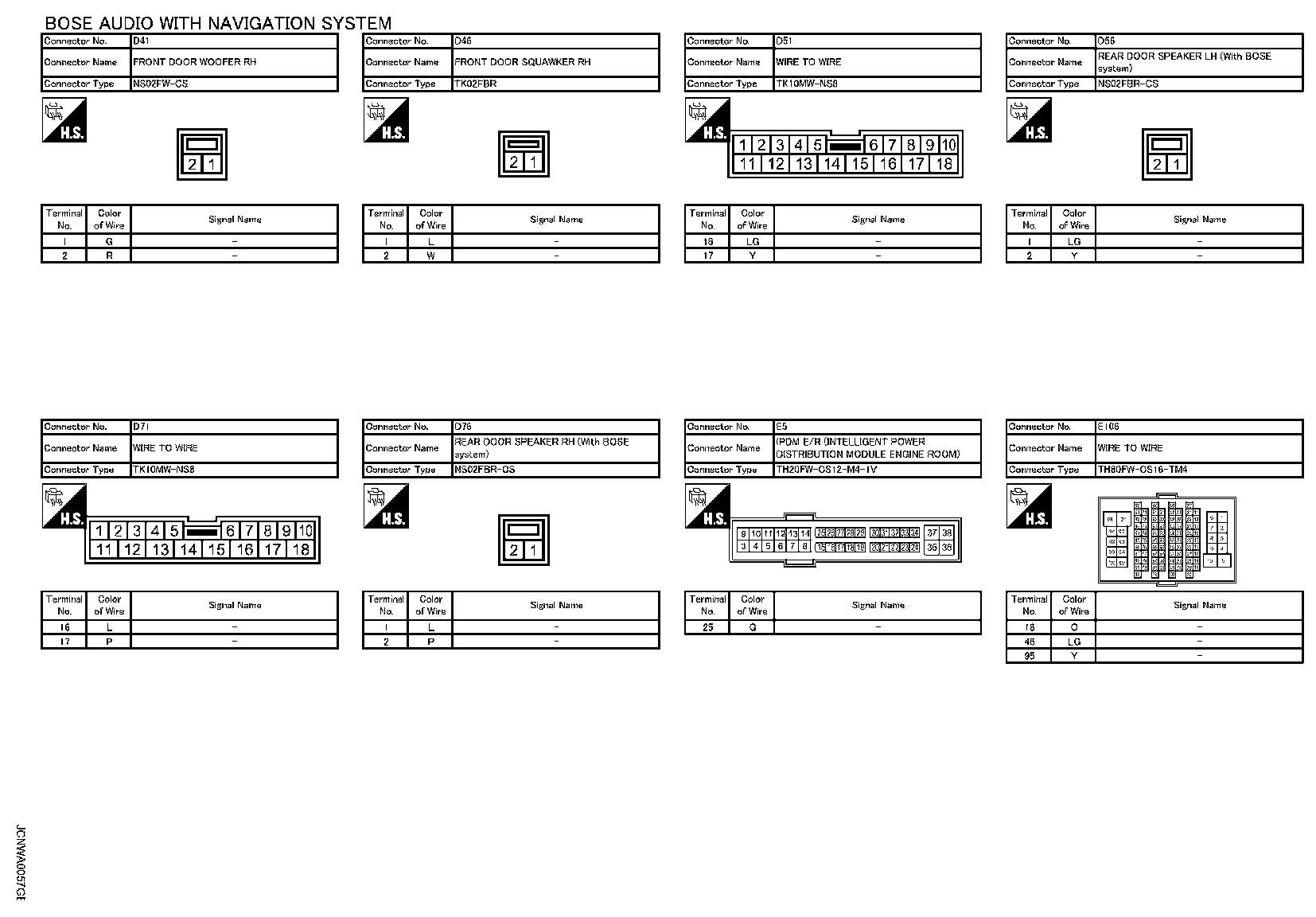

Wiring Diagram - Bose Audio With Navigation System (Part 5):

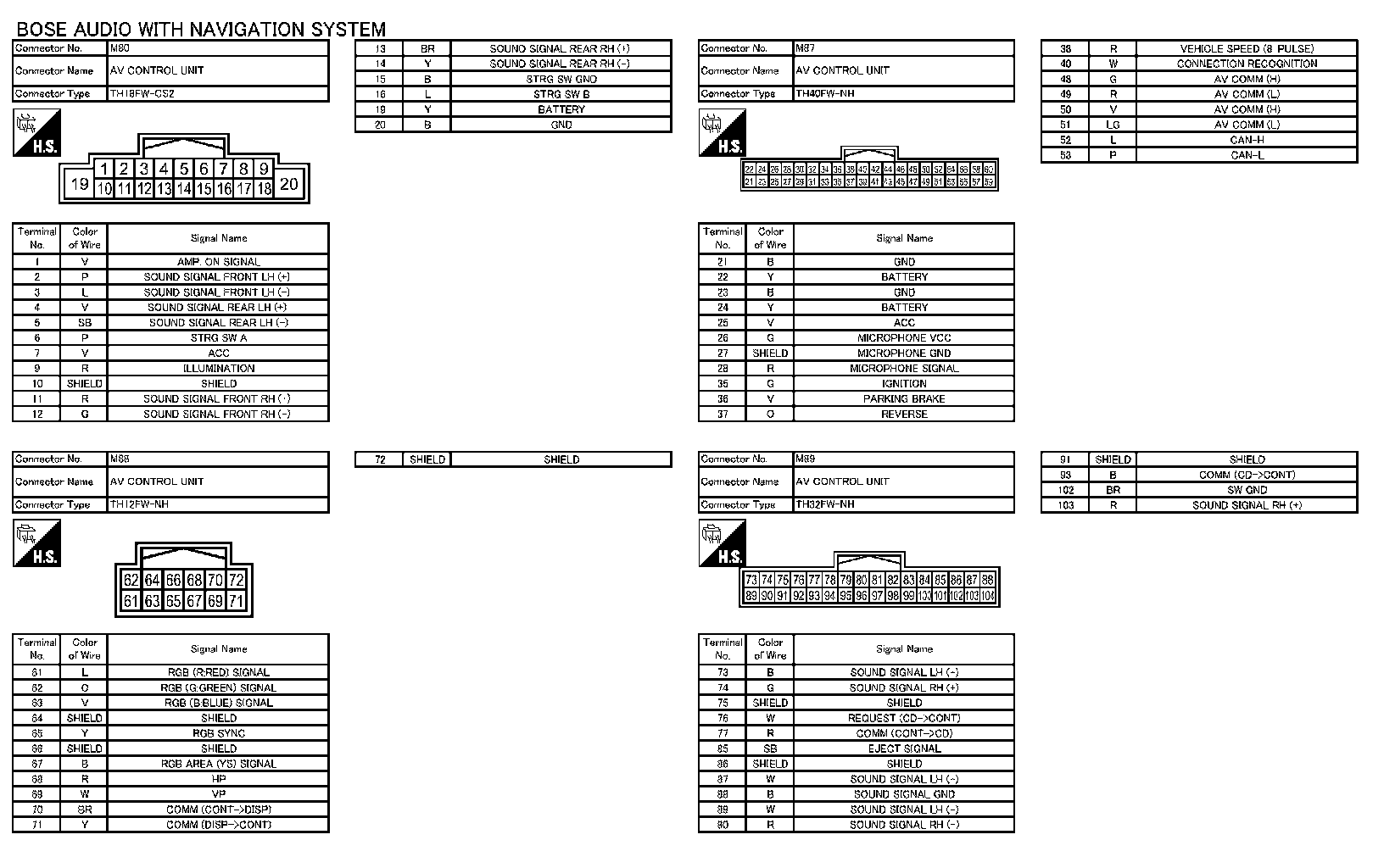

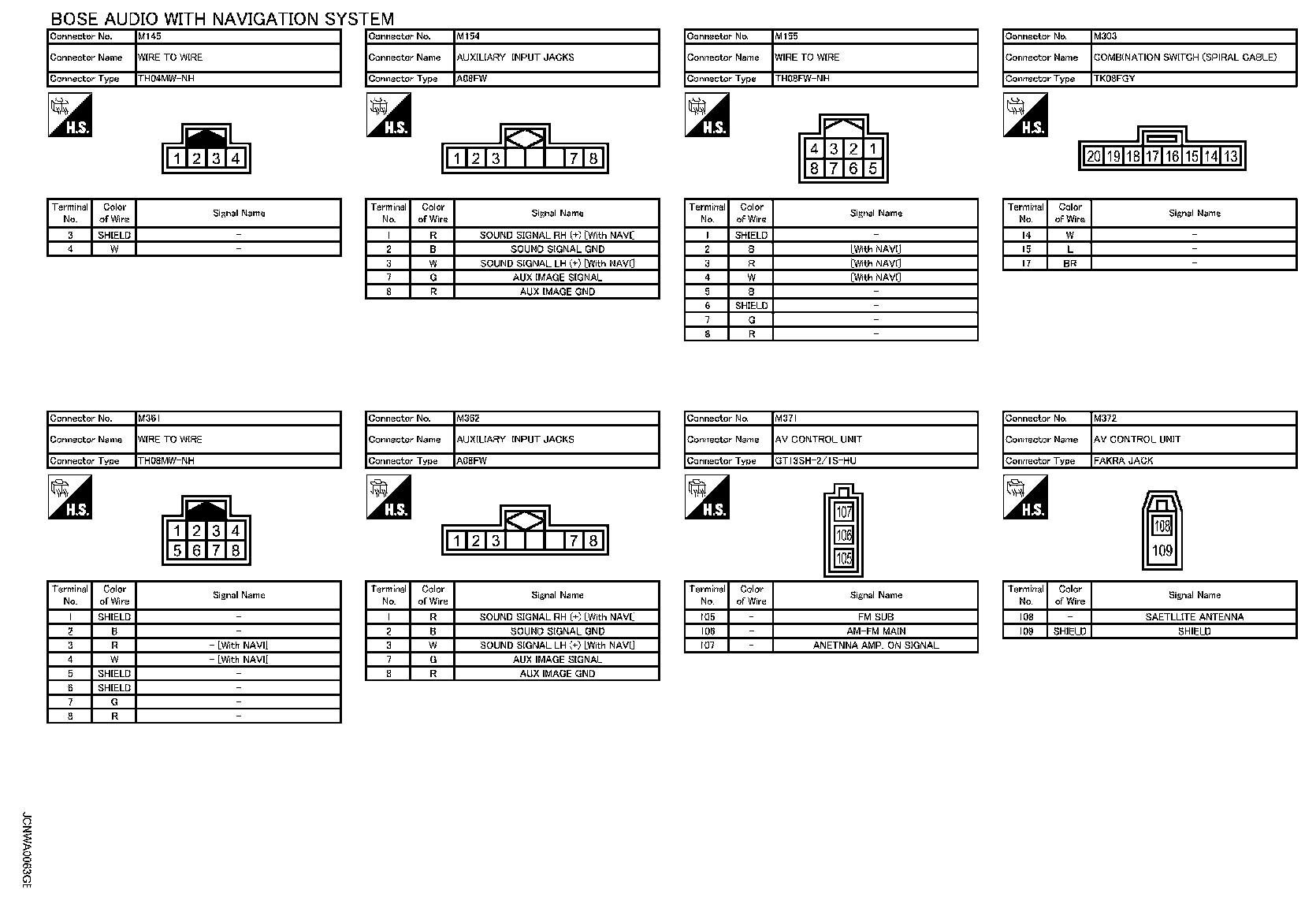

Wiring Diagram - Bose Audio With Navigation System (Part 6):

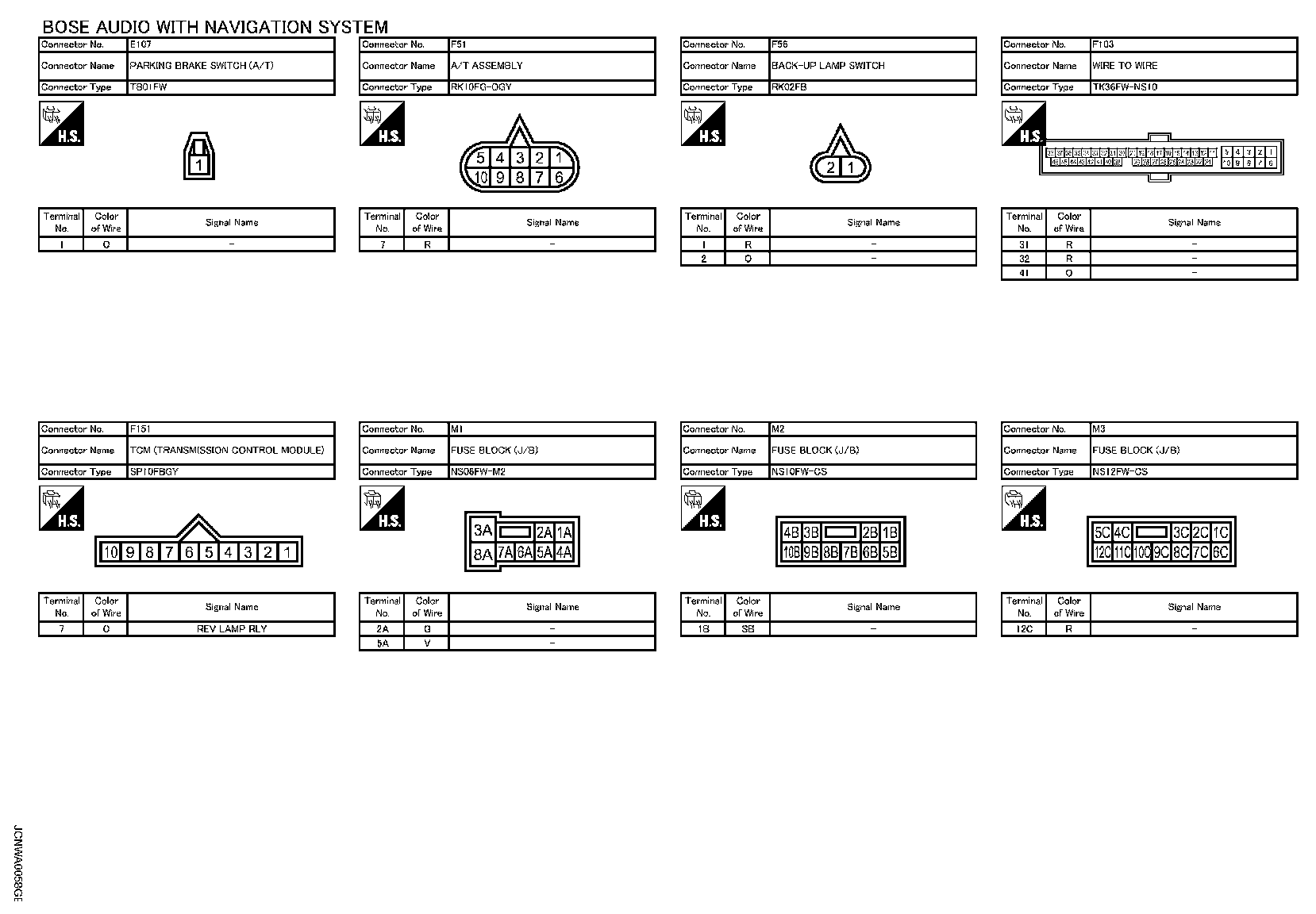

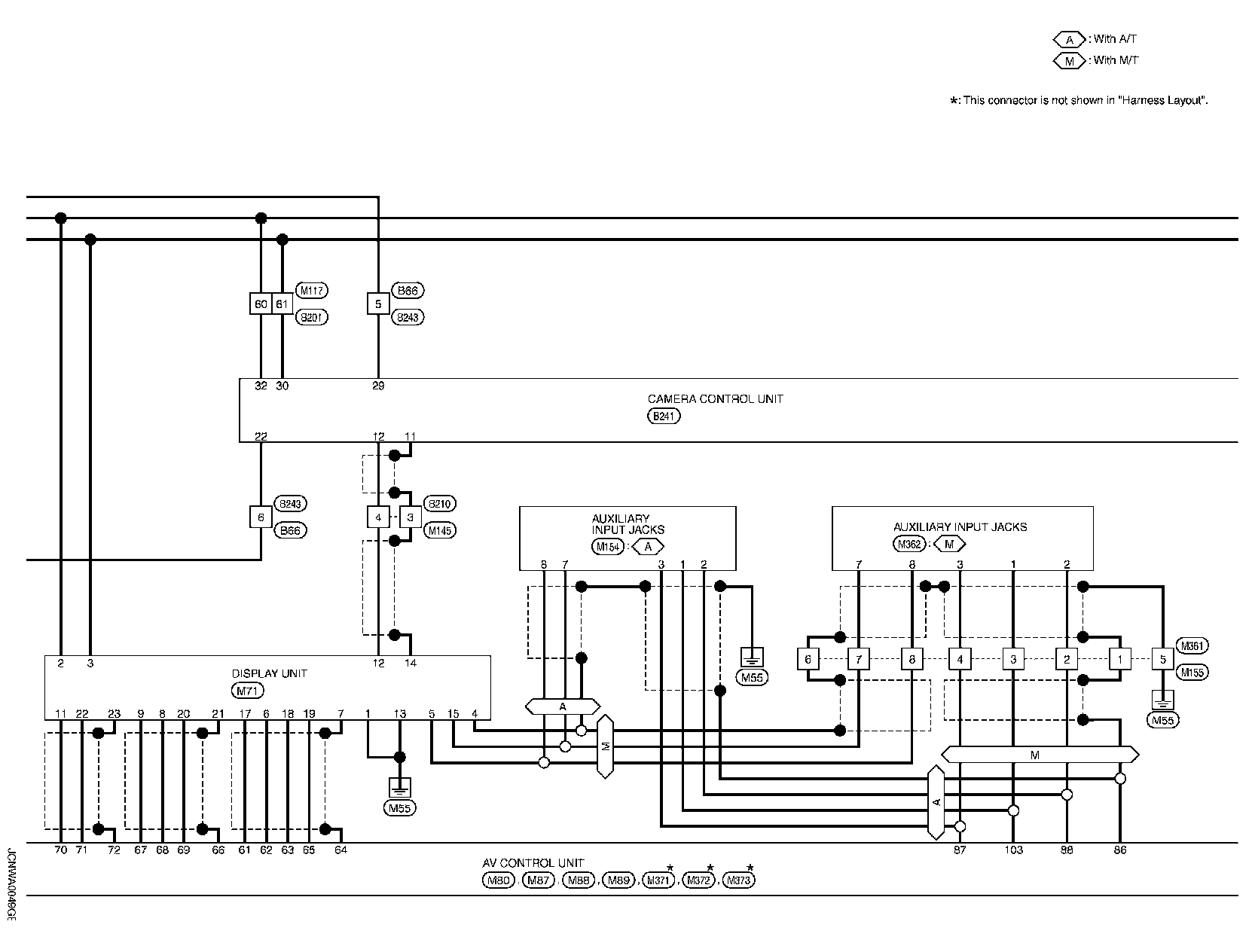

Wiring Diagram - Bose Audio With Navigation System (Part 7):

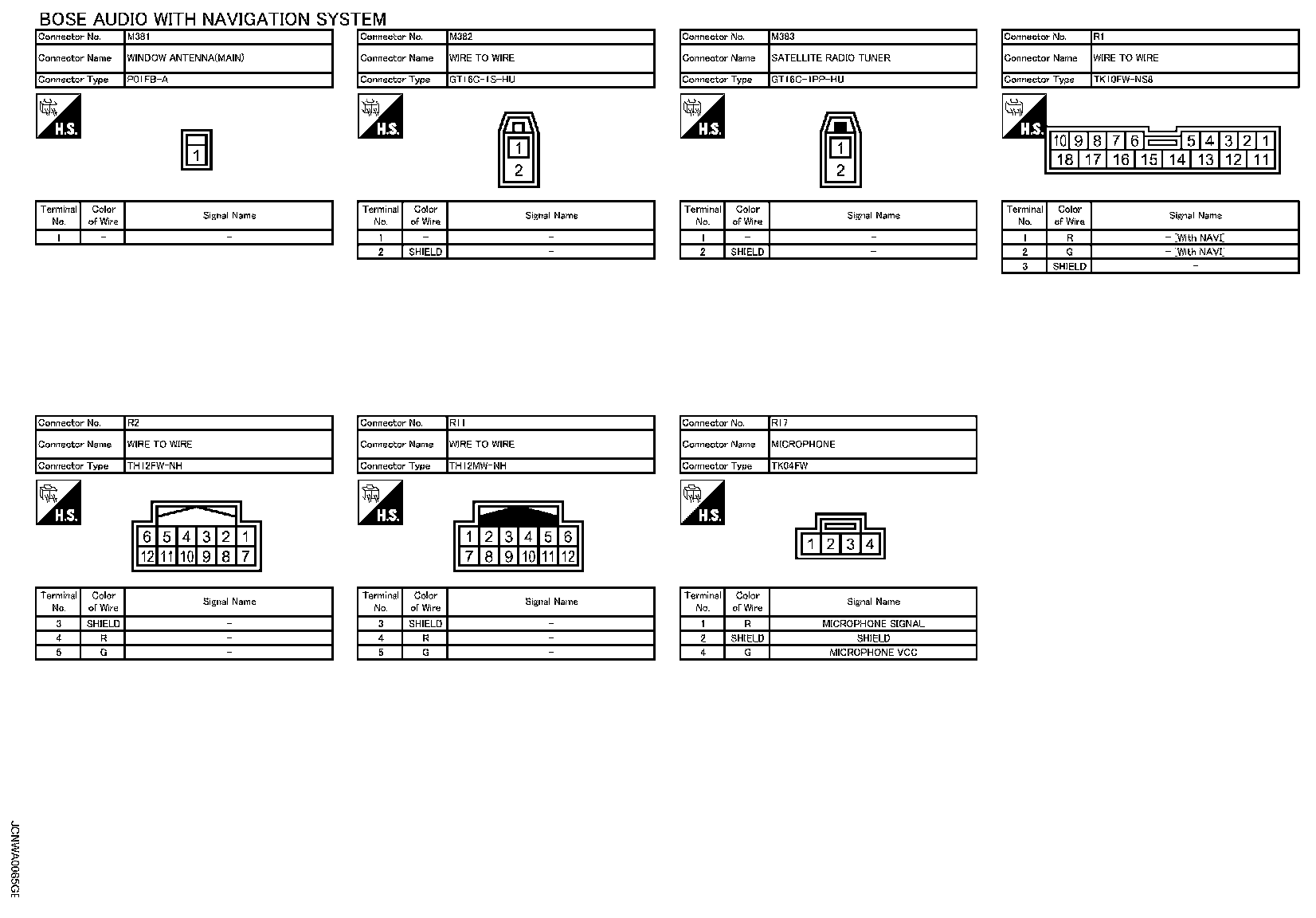

Wiring Diagram - Bose Audio With Navigation System (Part 8):

Wiring Diagram - Bose Audio With Navigation System (Part 9):

Wiring Diagram - Bose Audio With Navigation System (Part 10):

Wiring Diagram - Bose Audio With Navigation System (Part 11):

Wiring Diagram - Bose Audio With Navigation System (Part 11):

Wiring Diagram - Bose Audio With Navigation System (Part 12):

Wiring Diagram - Bose Audio With Navigation System (Part 13):

Wiring Diagram - Bose Audio With Navigation System (Part 14):

Wiring Diagram - Bose Audio With Navigation System (Part 15):

Wiring Diagram - Bose Audio With Navigation System (Part 16):

Wiring Diagram - Bose Audio With Navigation System (Part 17):

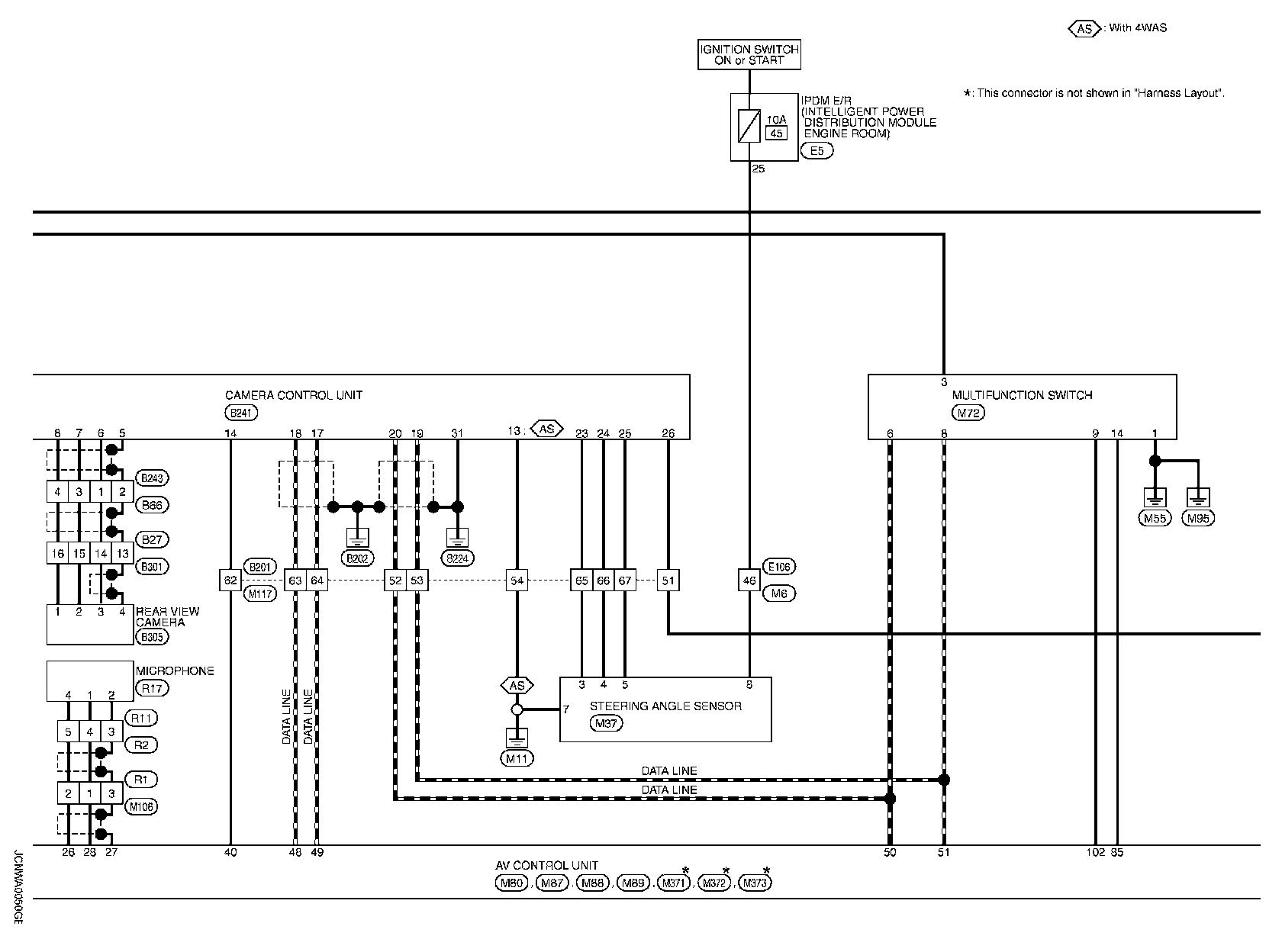

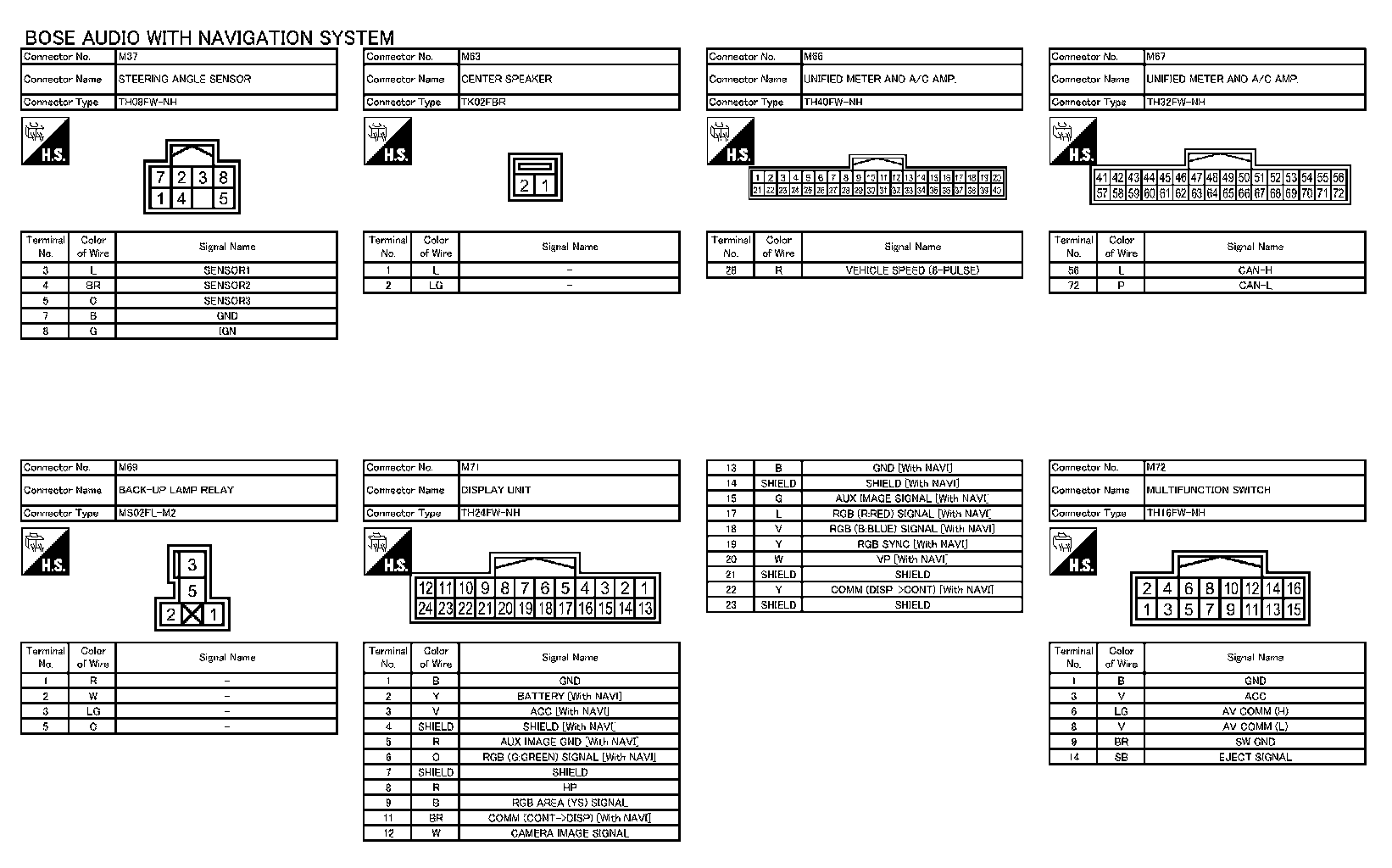

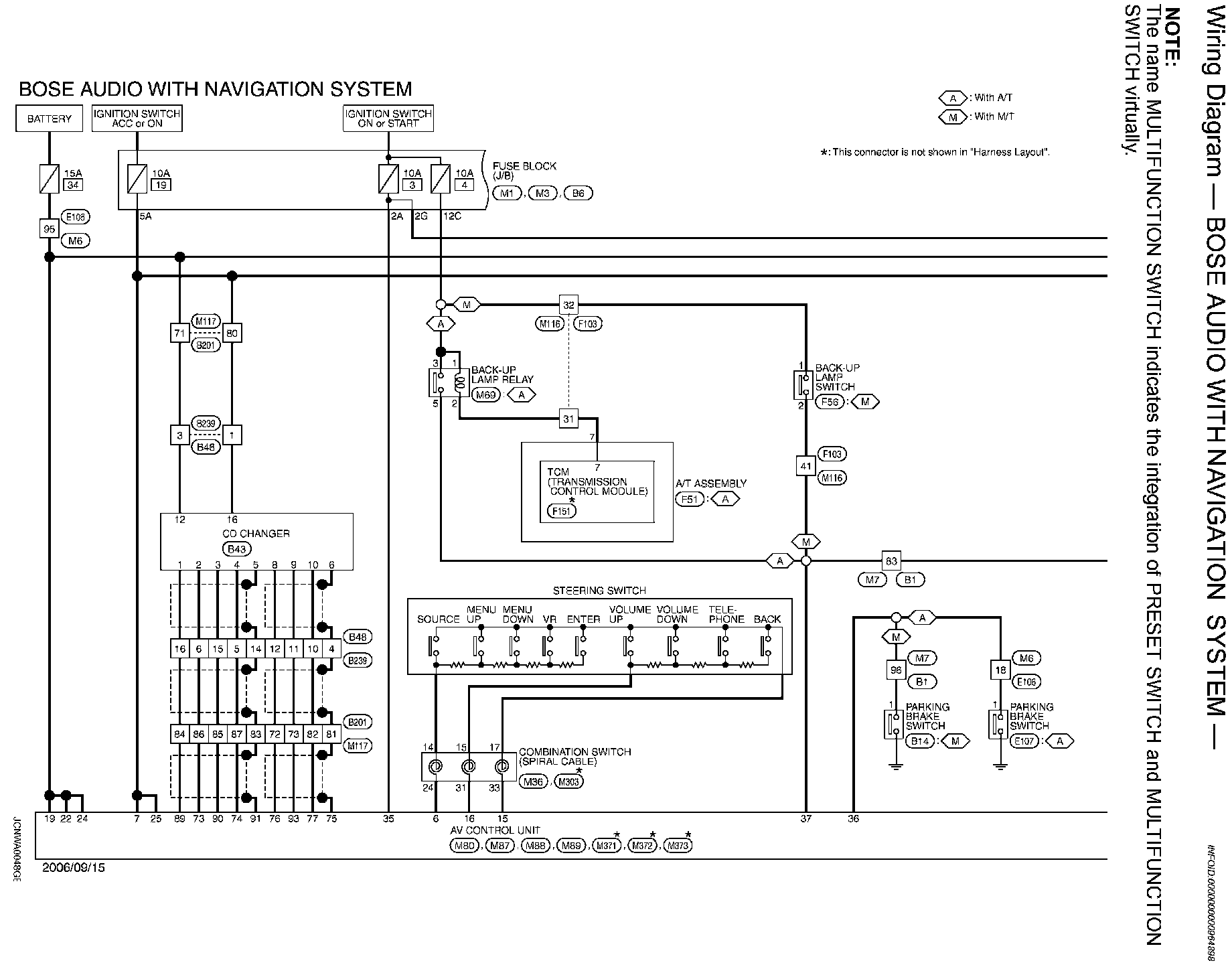

Wiring Diagram - BOSE AUDIO WITH NAVIGATION SYSTEM
