Manual Transmission/Transaxle
TRANSMISSION ASSEMBLY
Exploded View
CASE AND EXTENSION

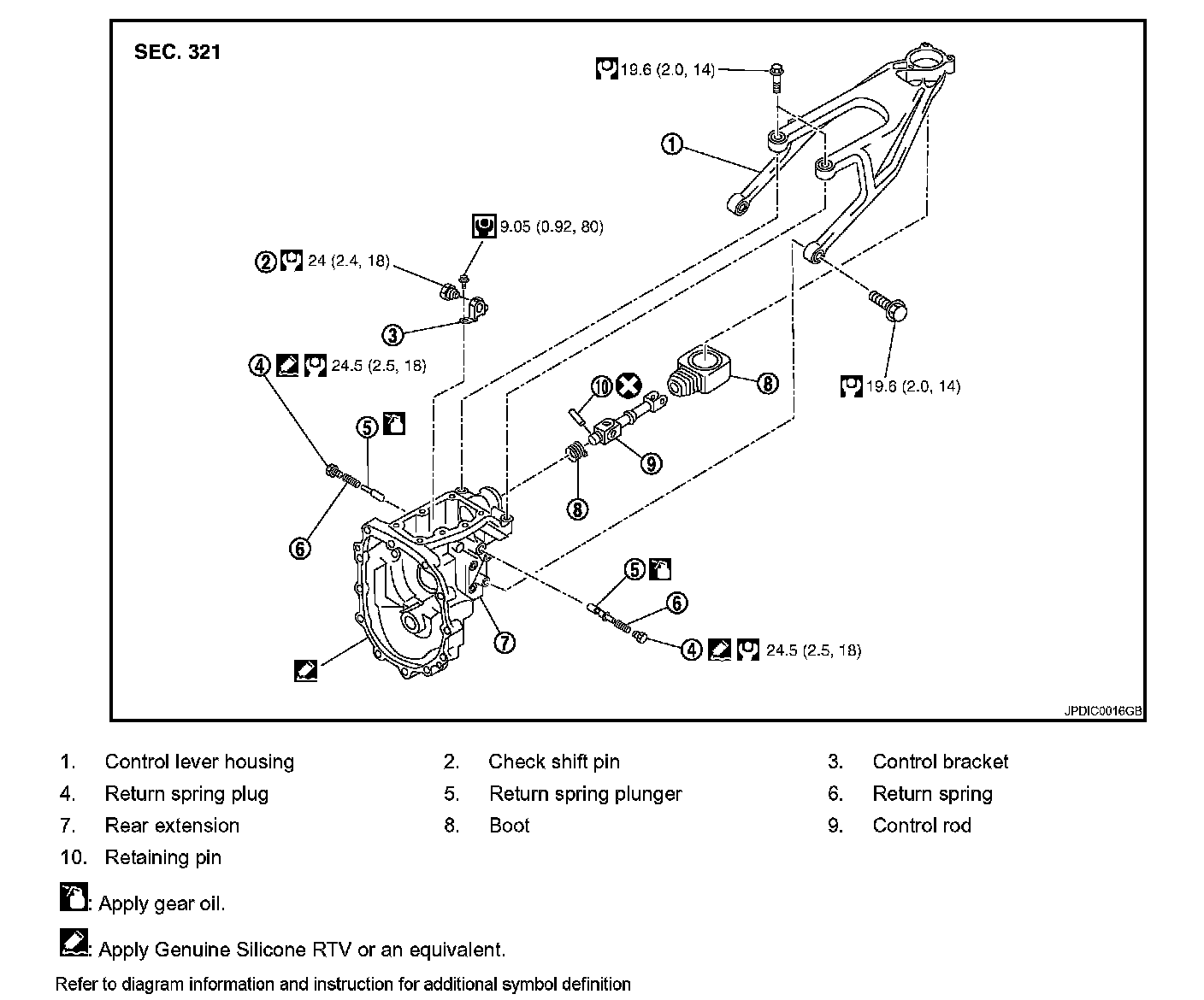

Exploded View TM-30 (Part 1):

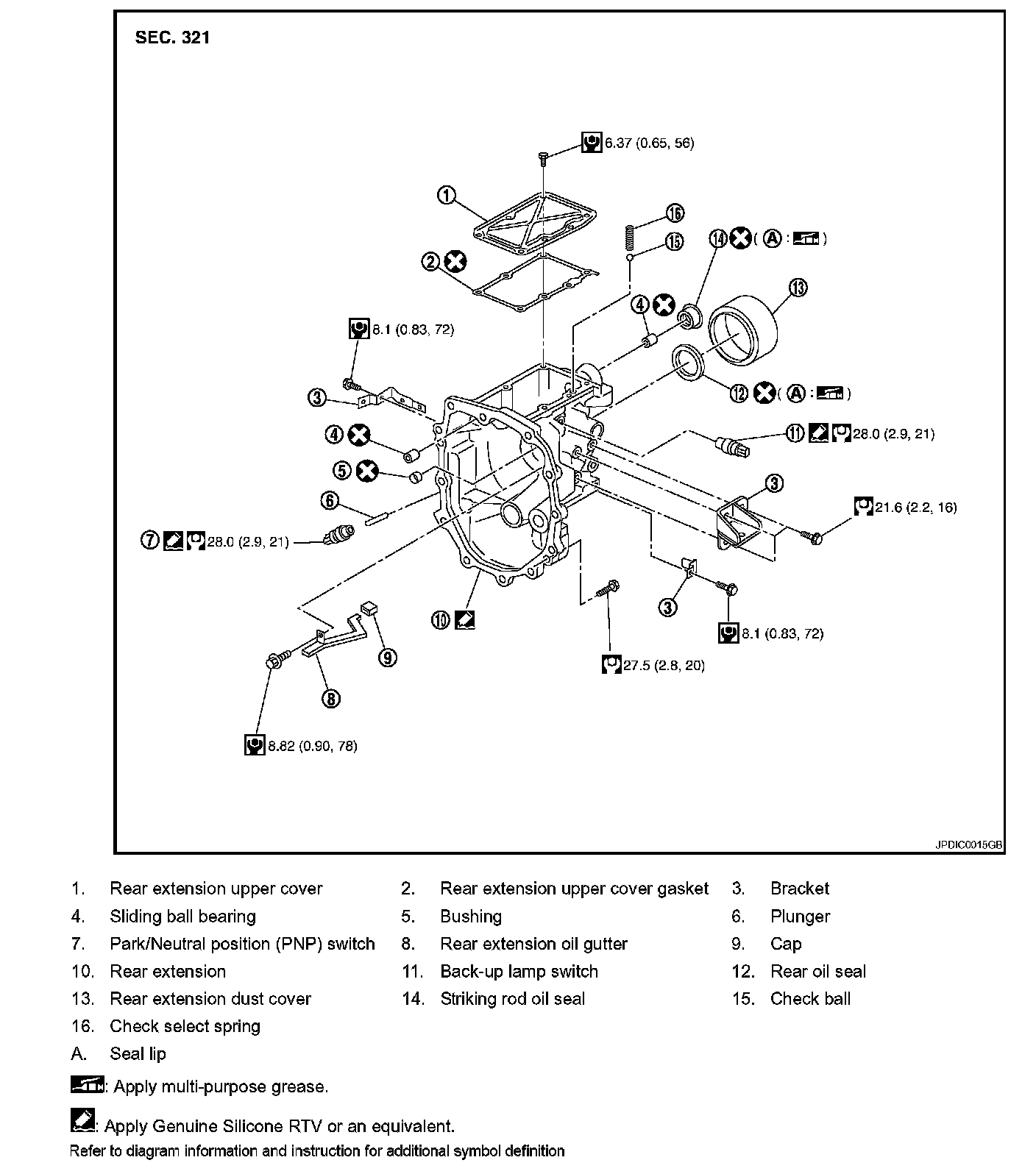

Exploded View TM-30 (Part 2):

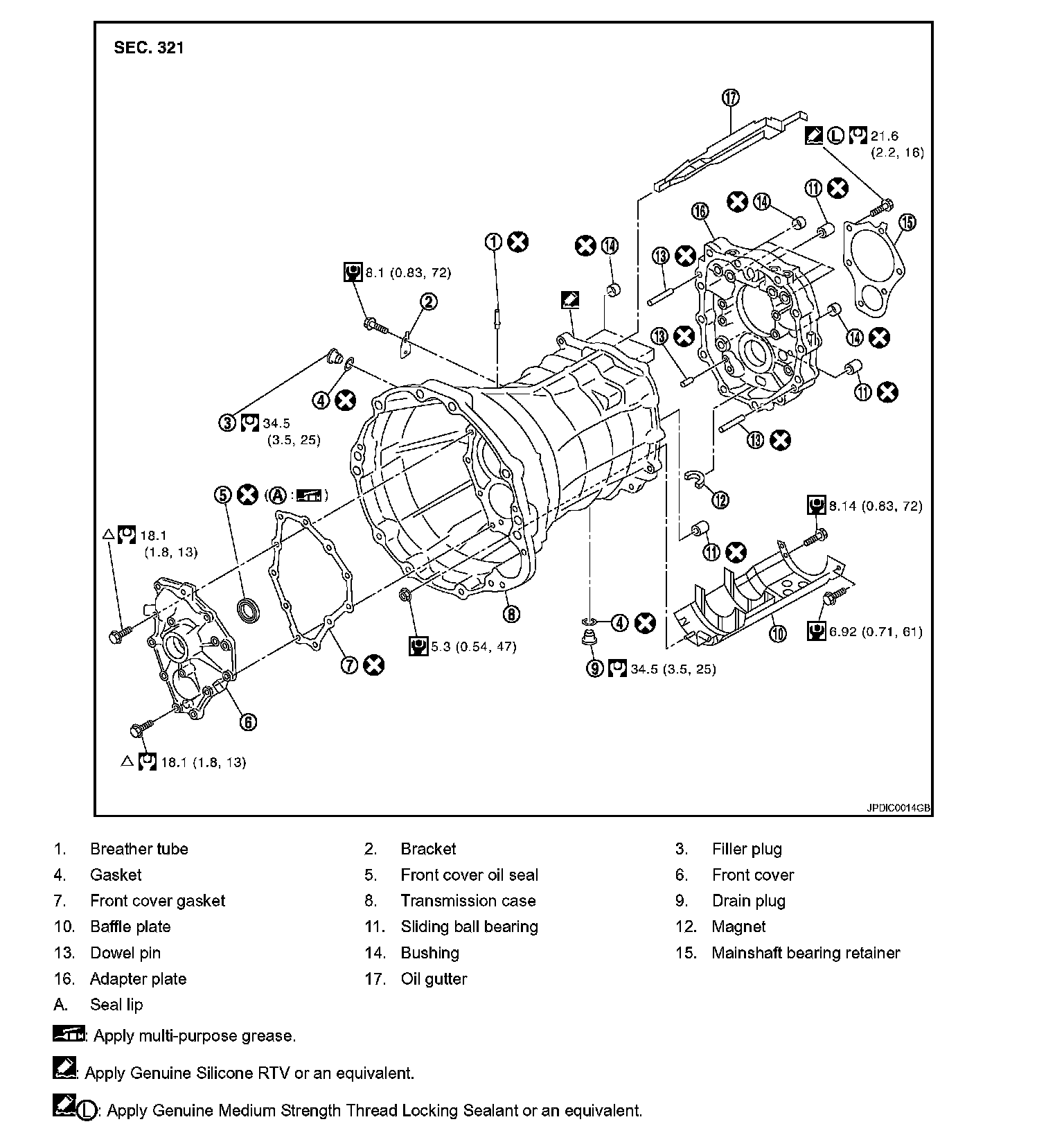

Exploded View TM-31:
SHAFT AND GEAR

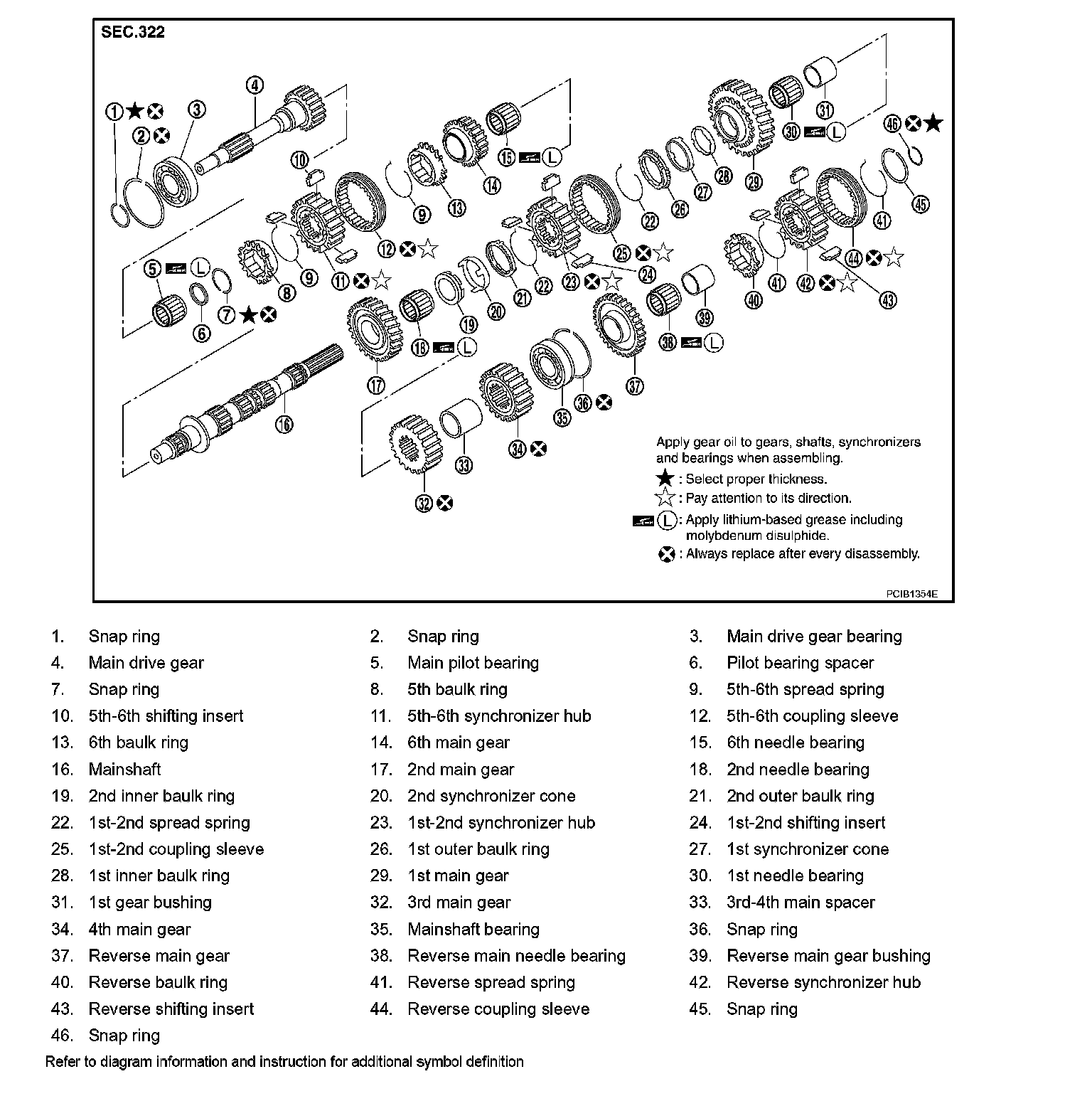

Exploded View TM-32:
Exploded View TM-33:
SHIFT FORK AND FORK ROD

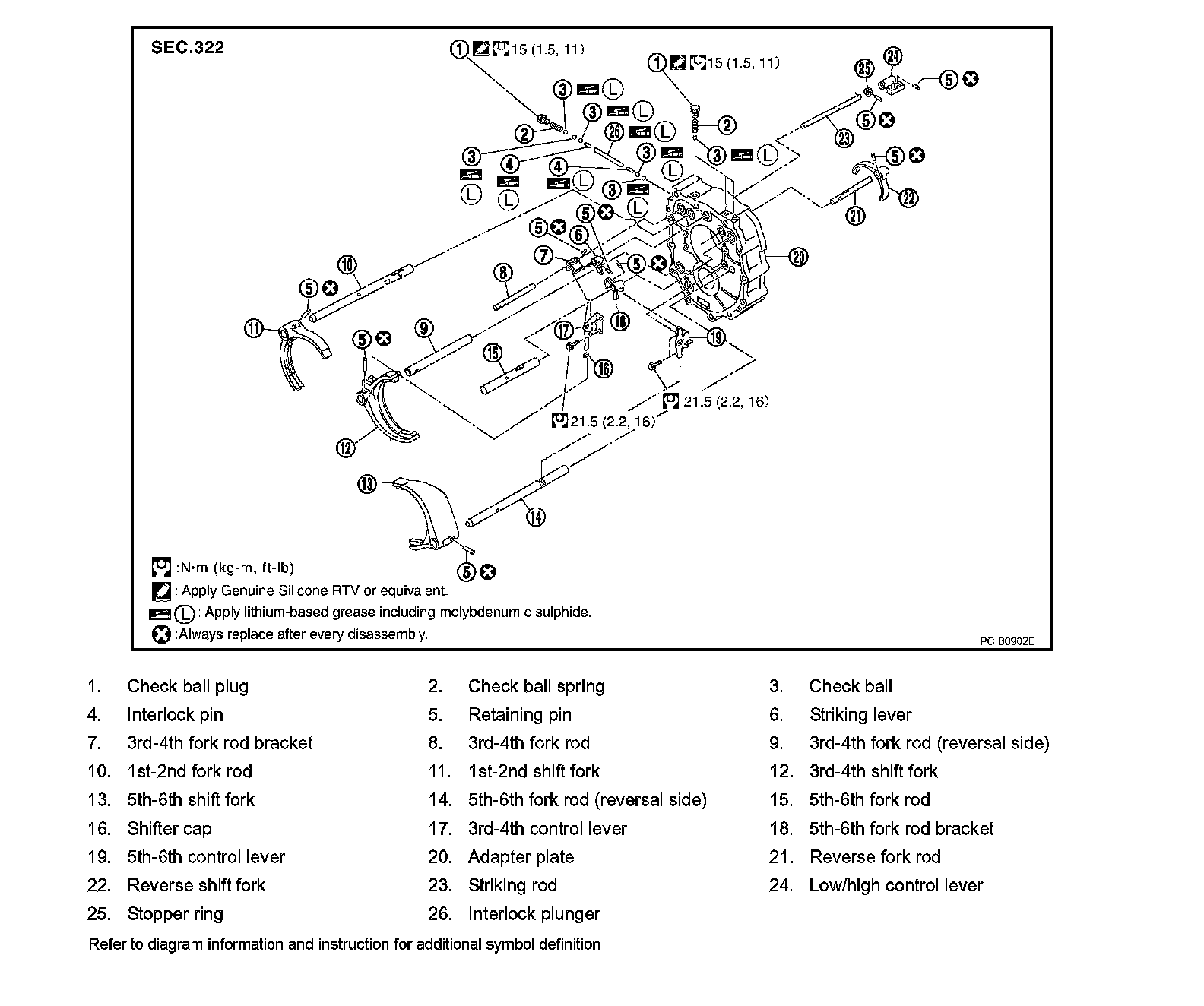

Exploded View TM-34:
Exploded View TM-35:
