BCM (Body Control Module)

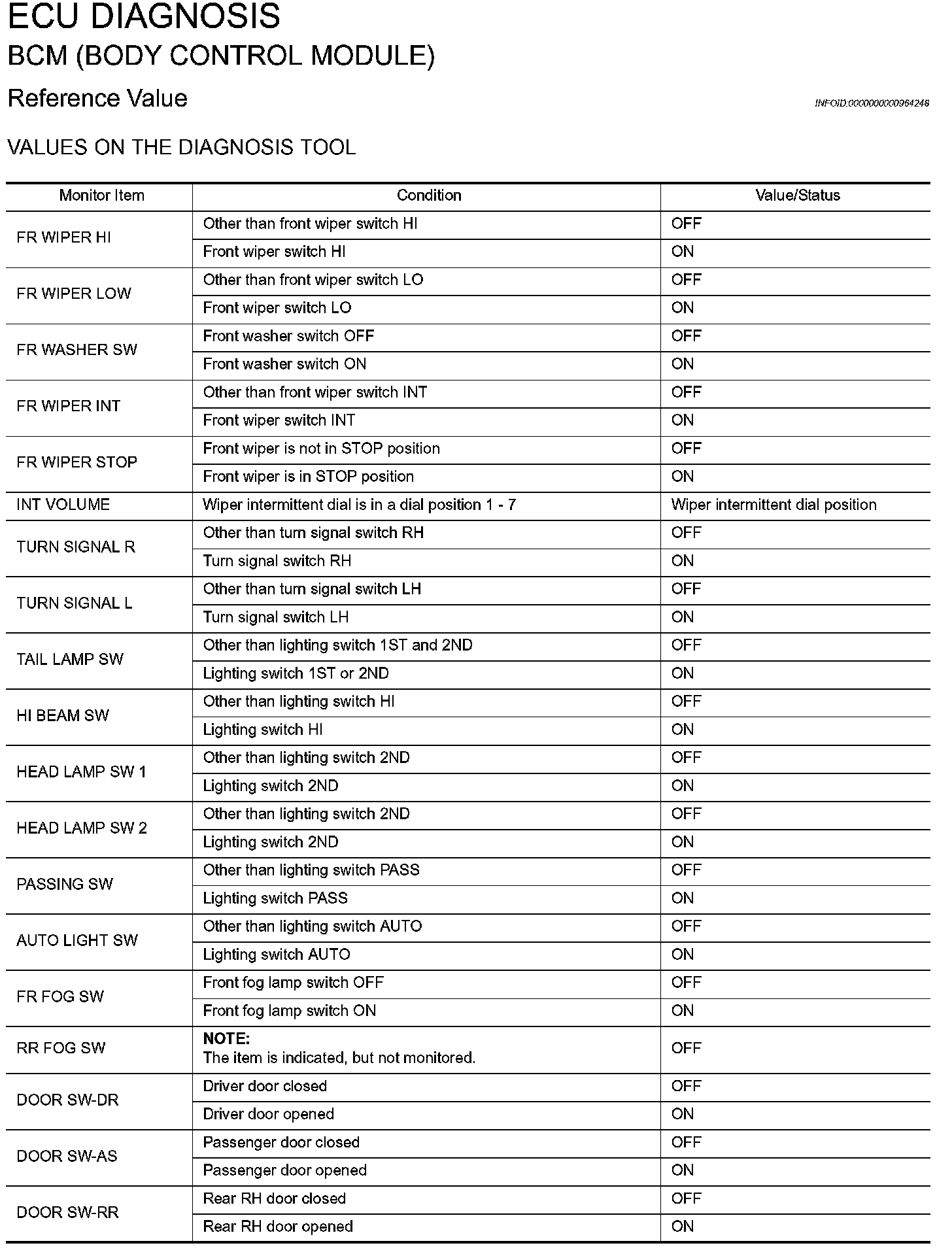

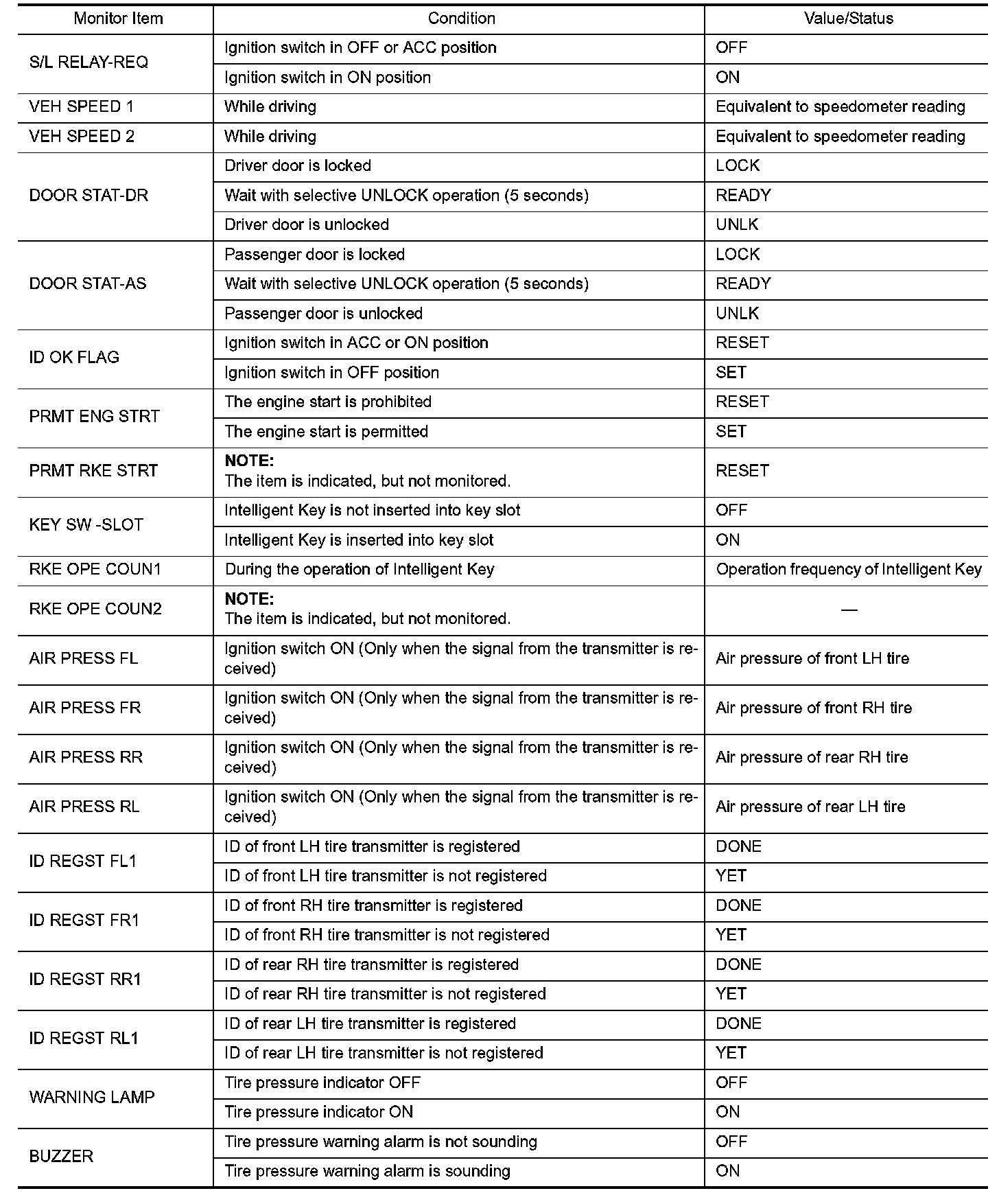

BCM (Body Control Module) Values On The Diagnosis Tool (Part 1):

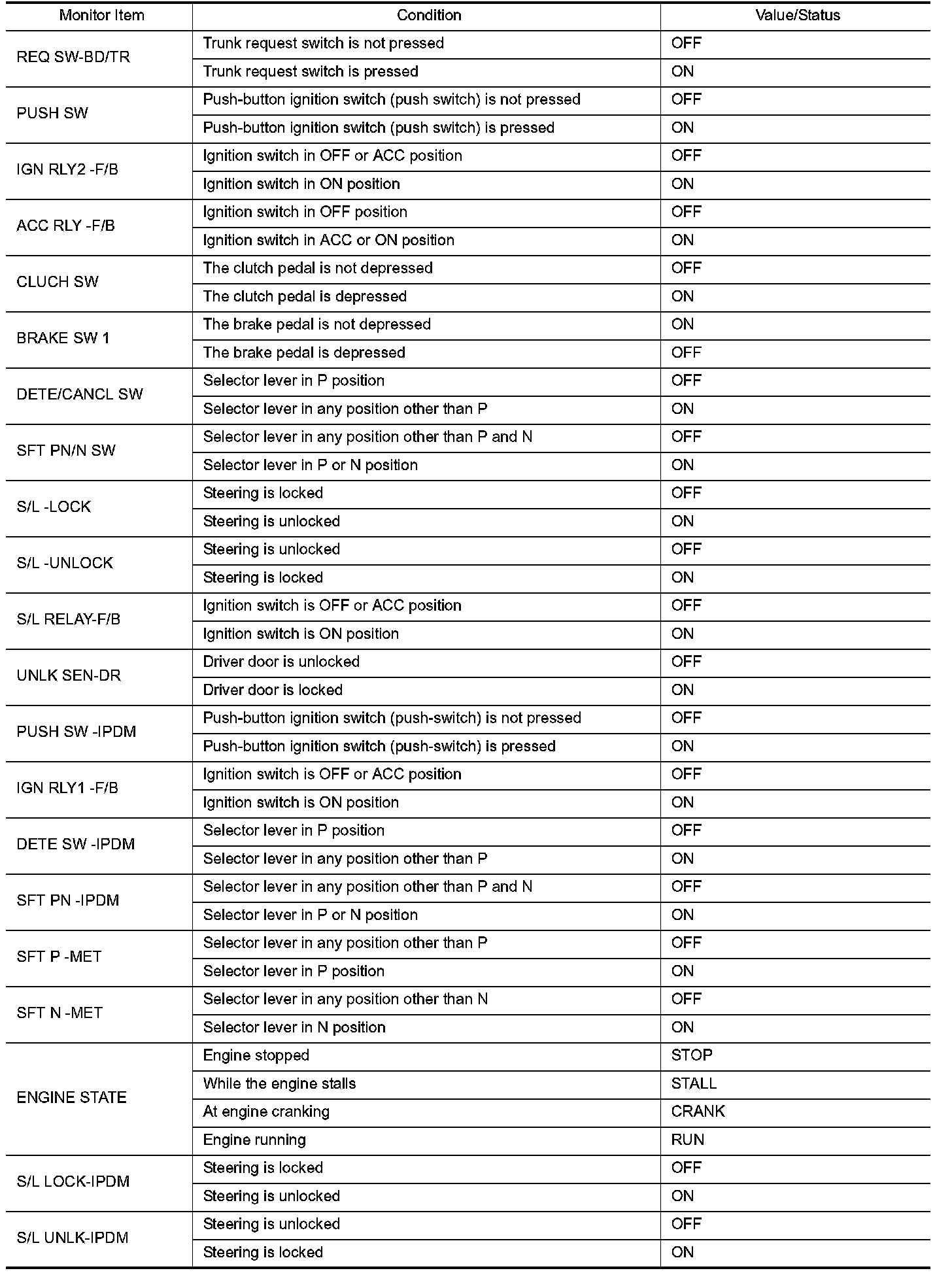

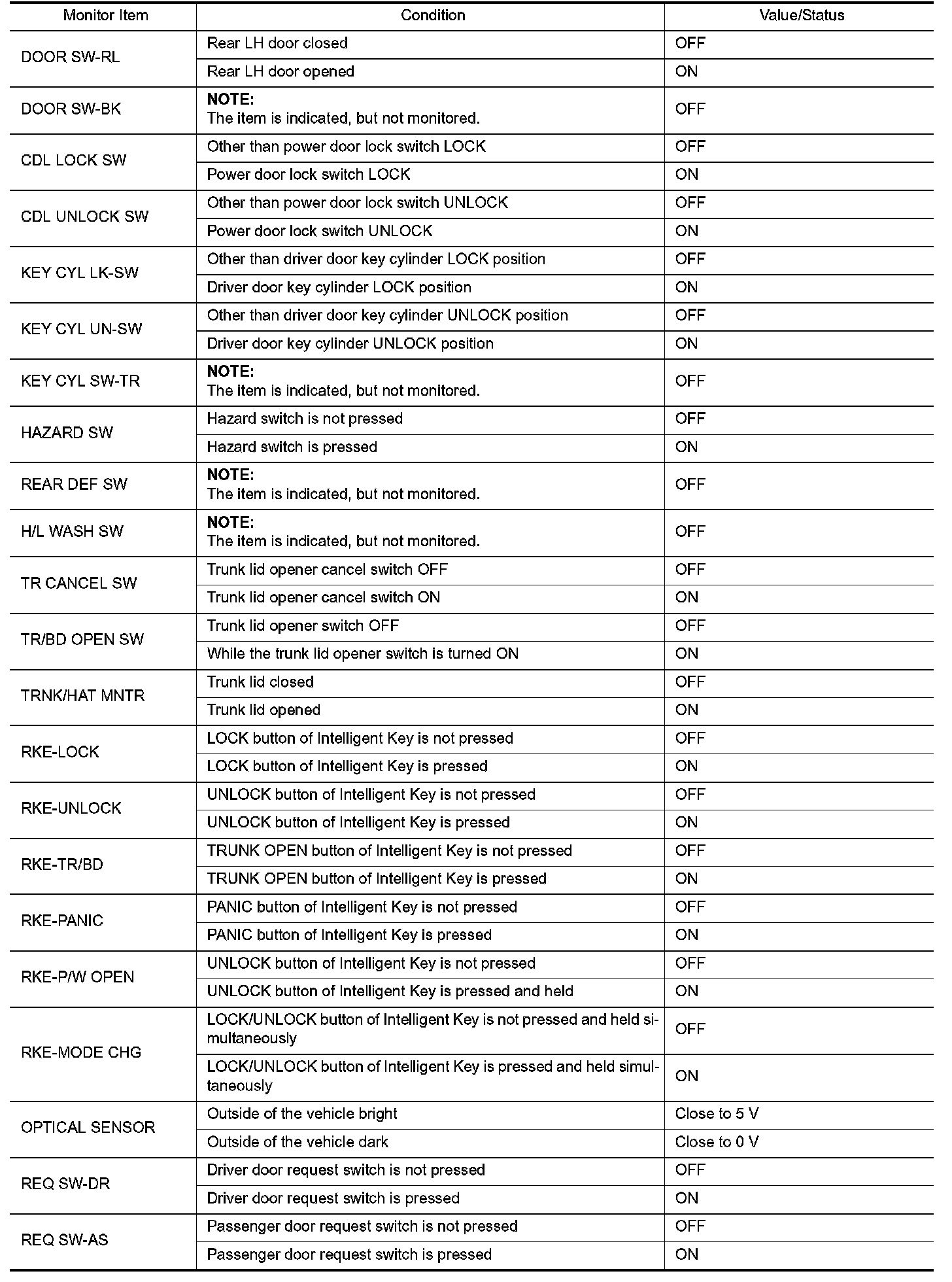

BCM (Body Control Module) Values On The Diagnosis Tool (Part 2):

BCM (Body Control Module) Values On The Diagnosis Tool (Part 3):

BCM (Body Control Module) Values On The Diagnosis Tool (Part 3):

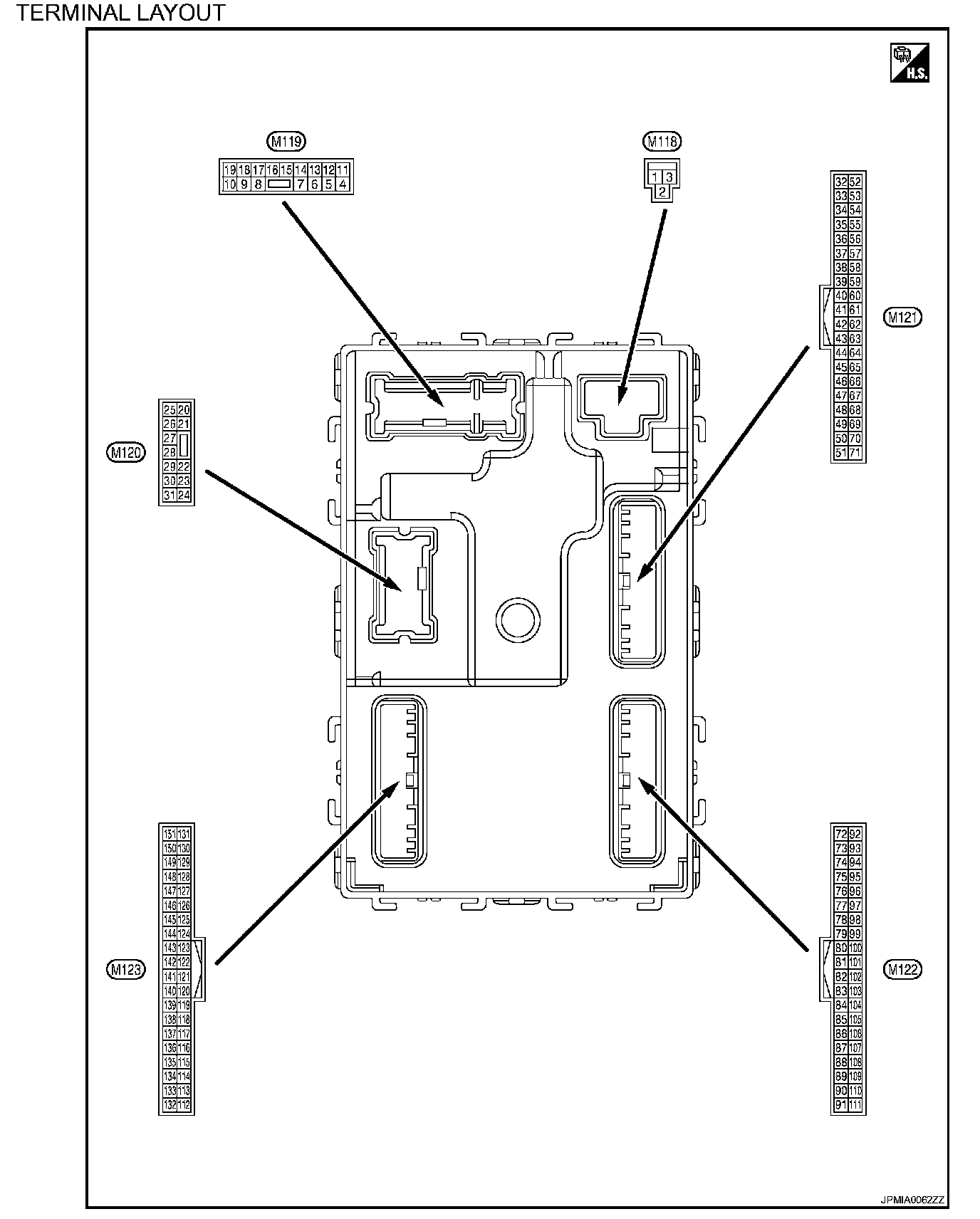

BCM (Body Control Module) Terminal Layout:

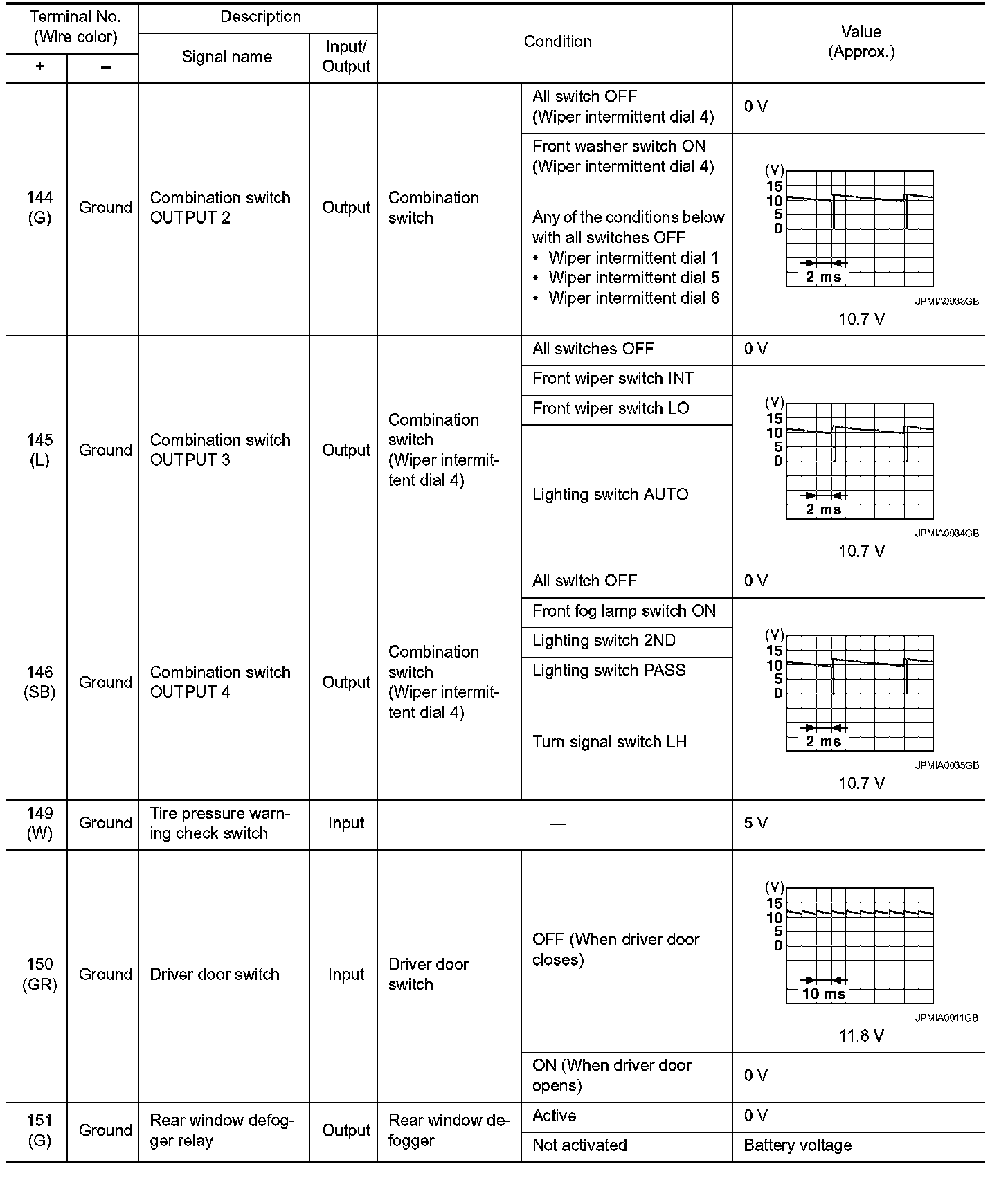

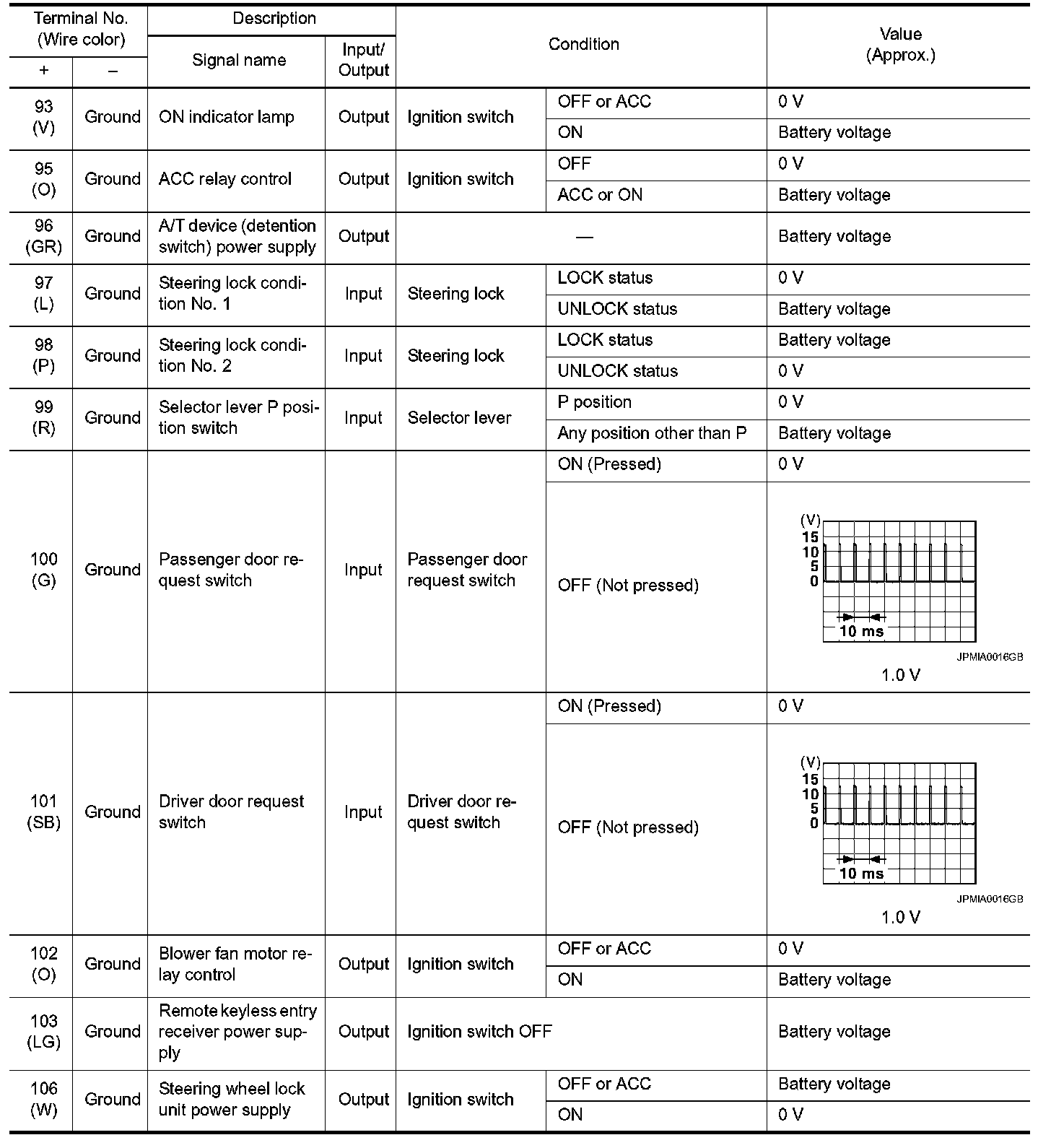

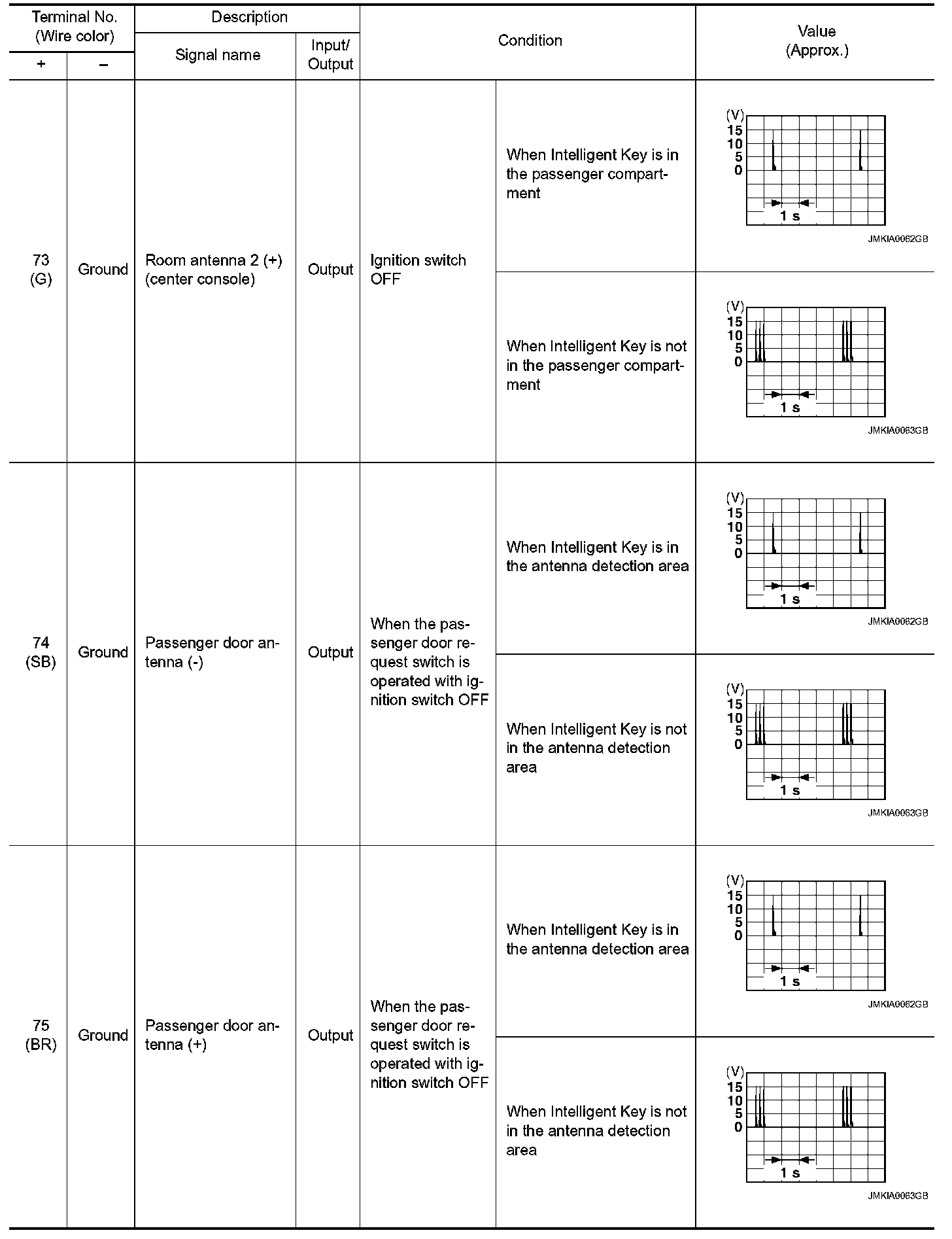

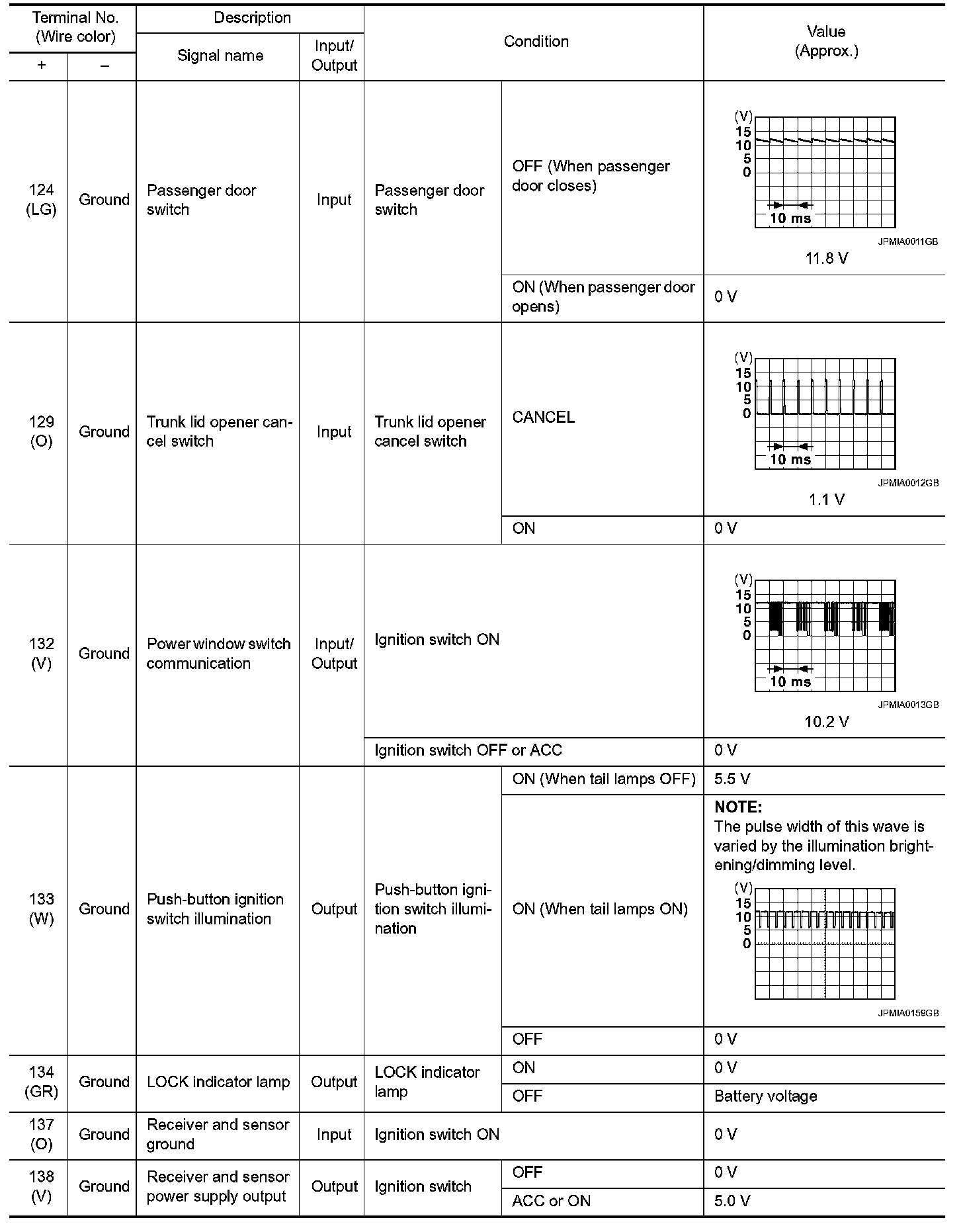

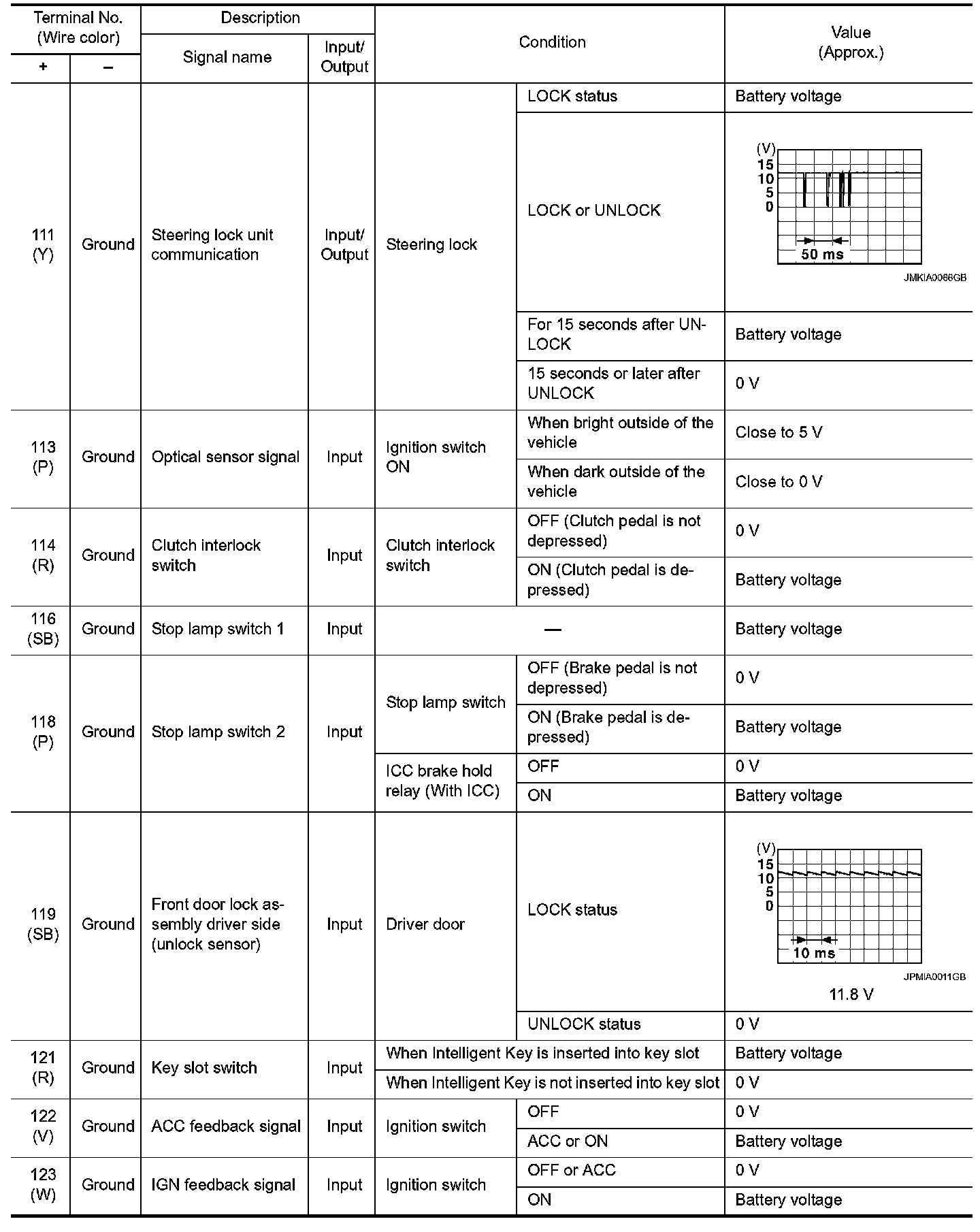

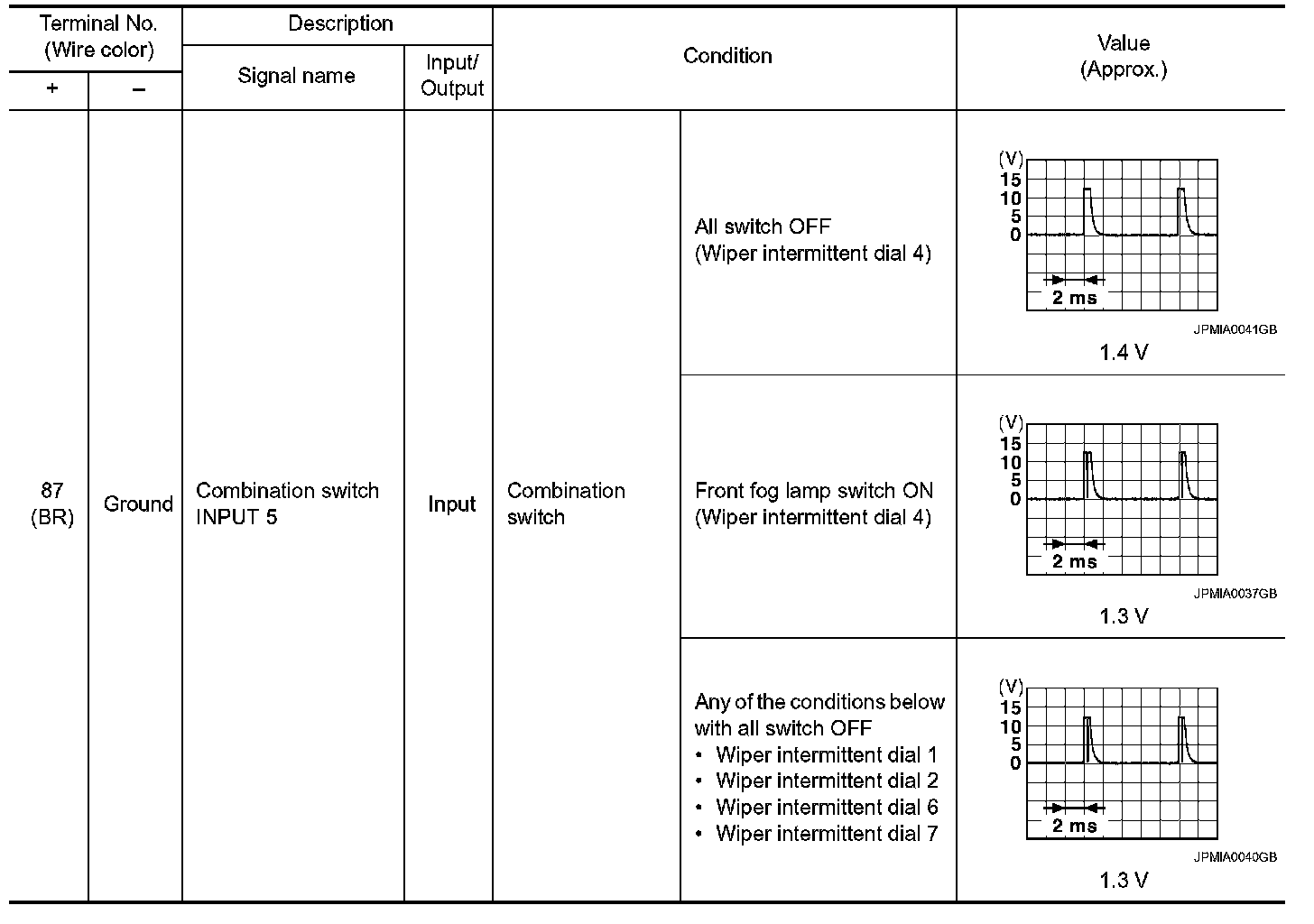

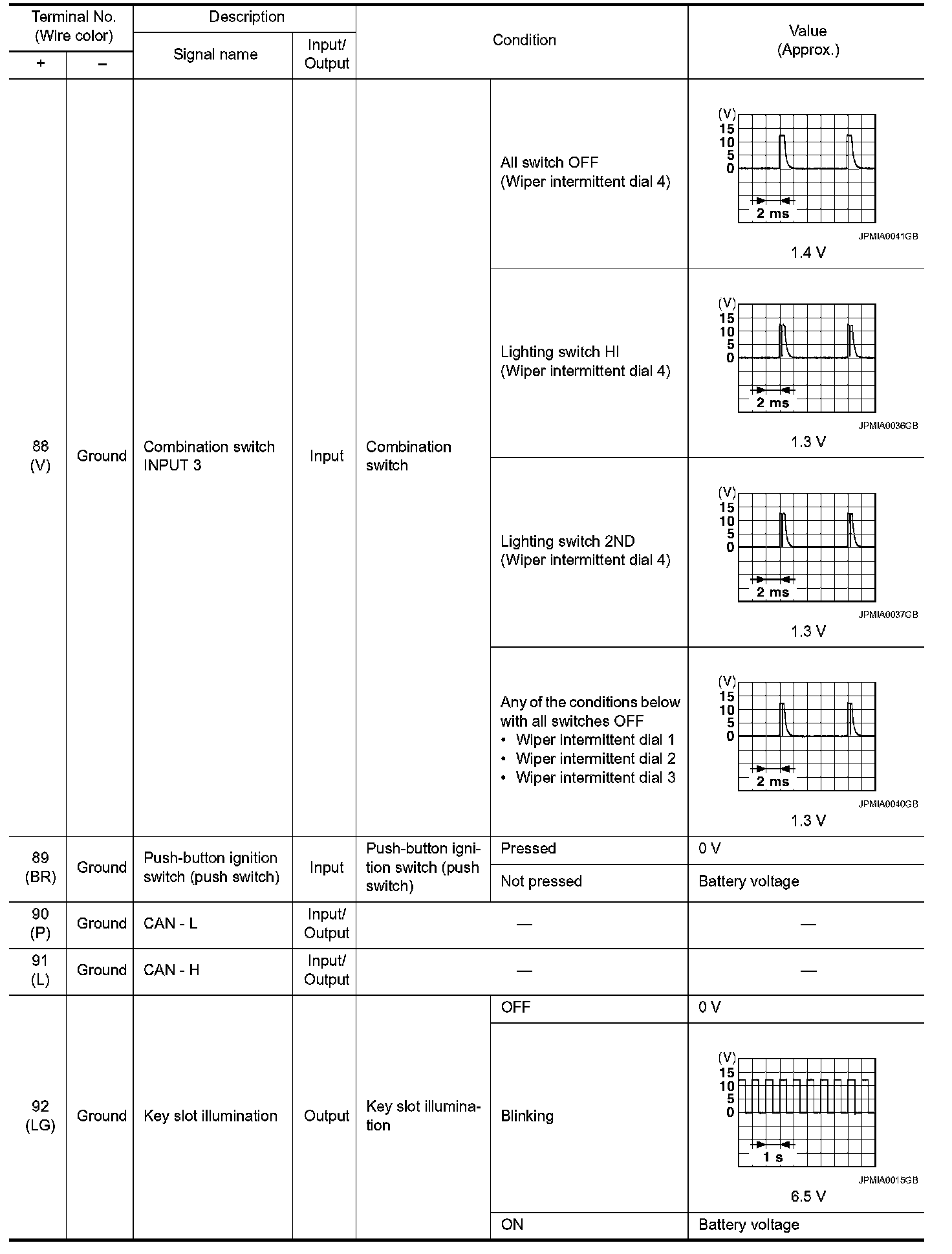

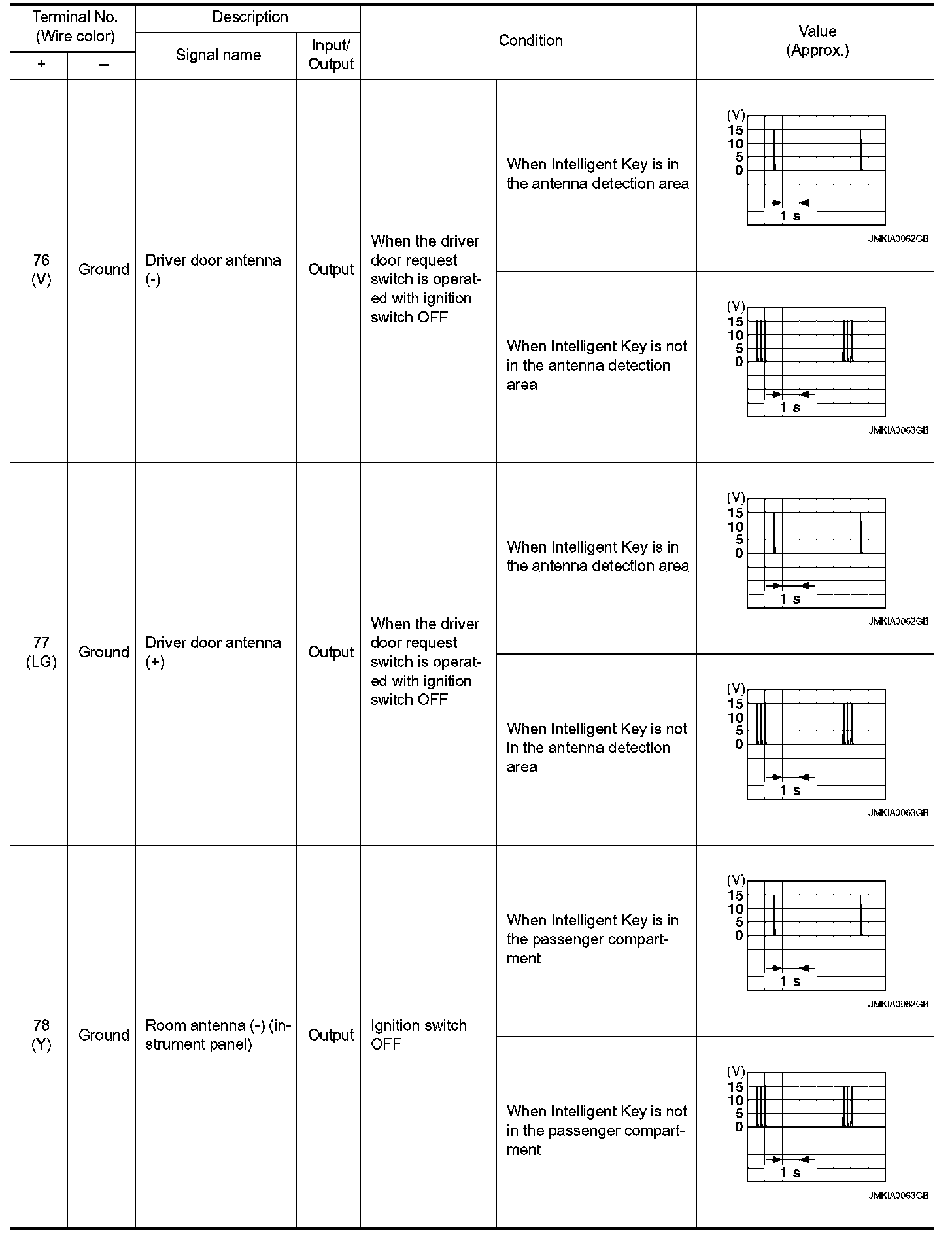

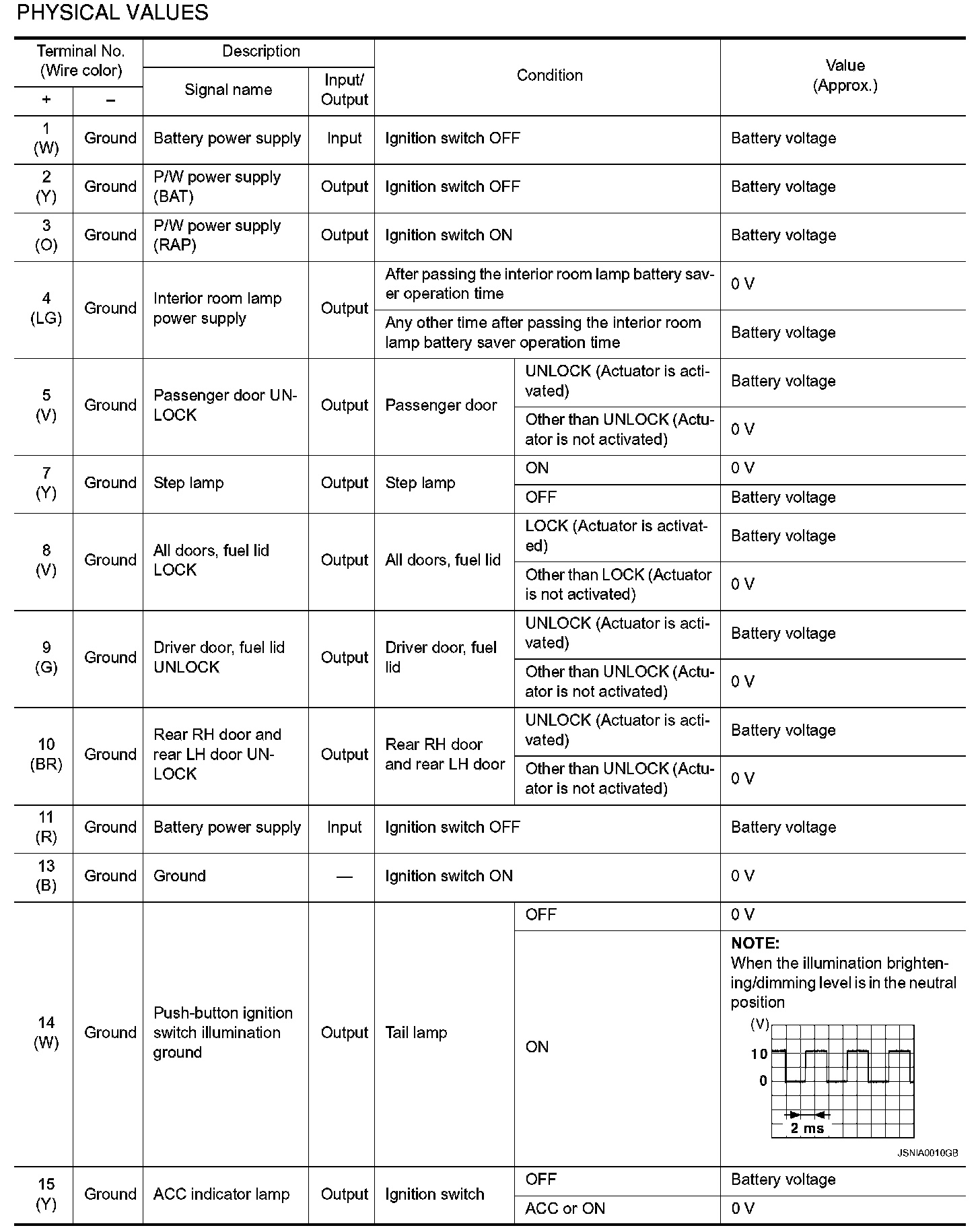

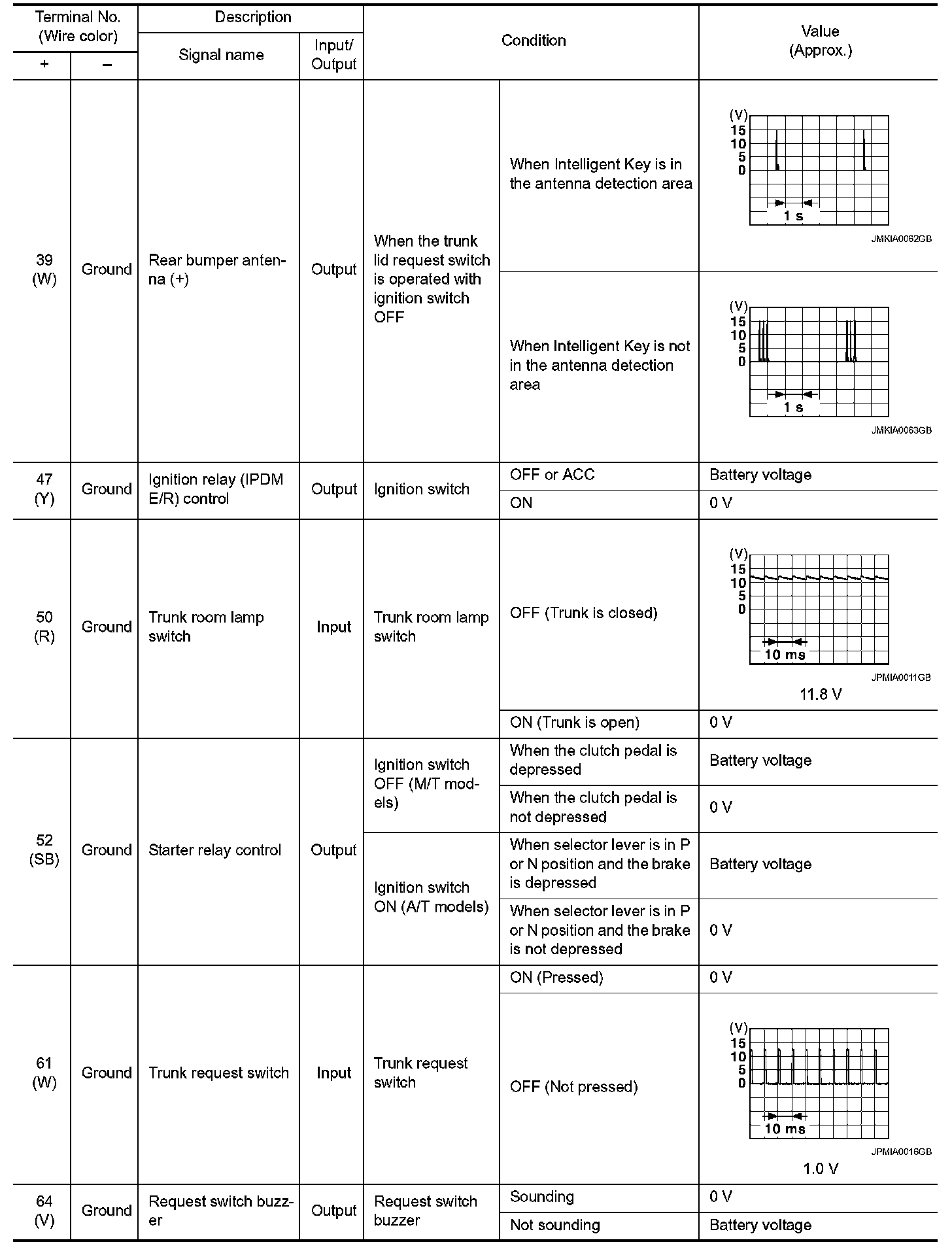

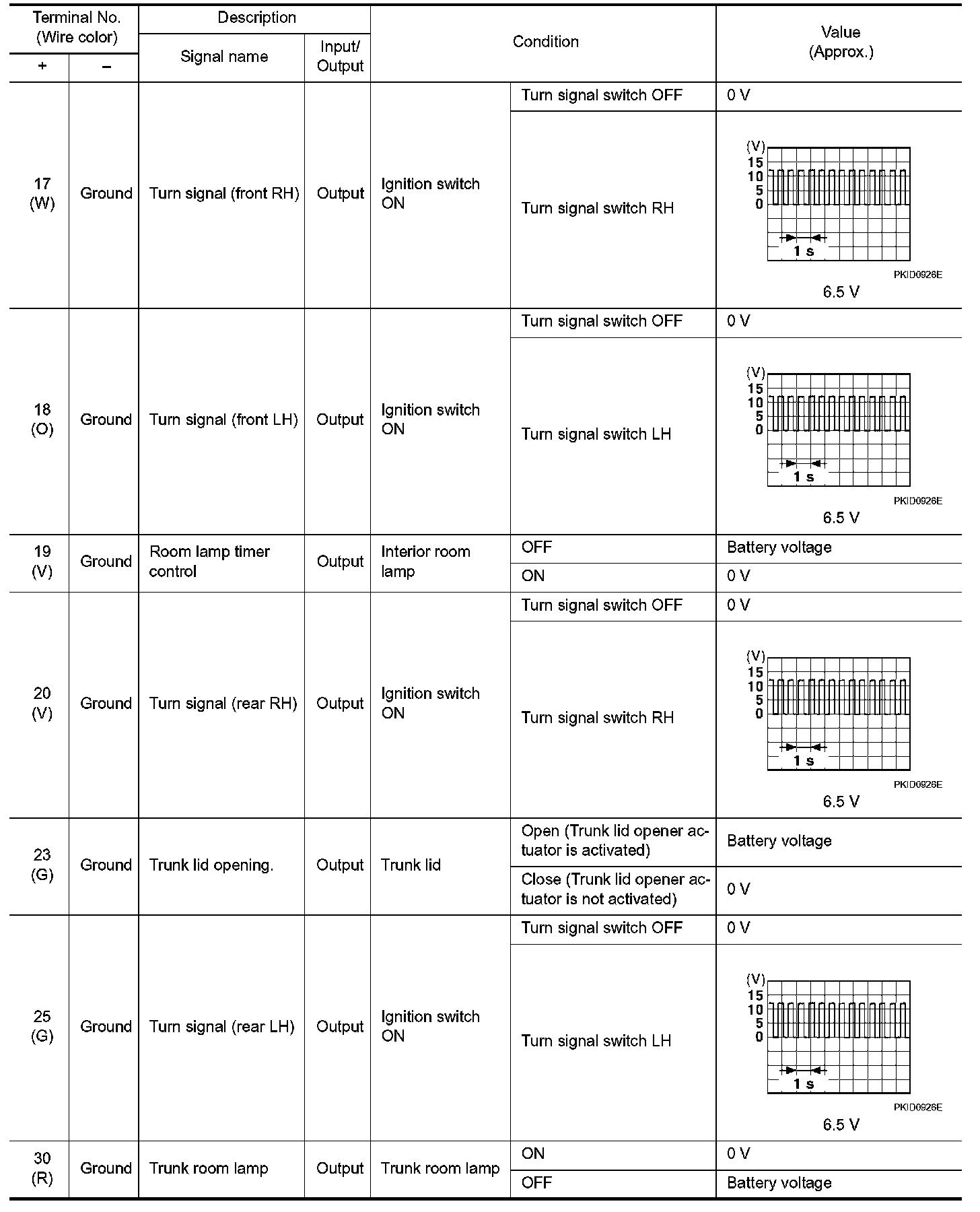

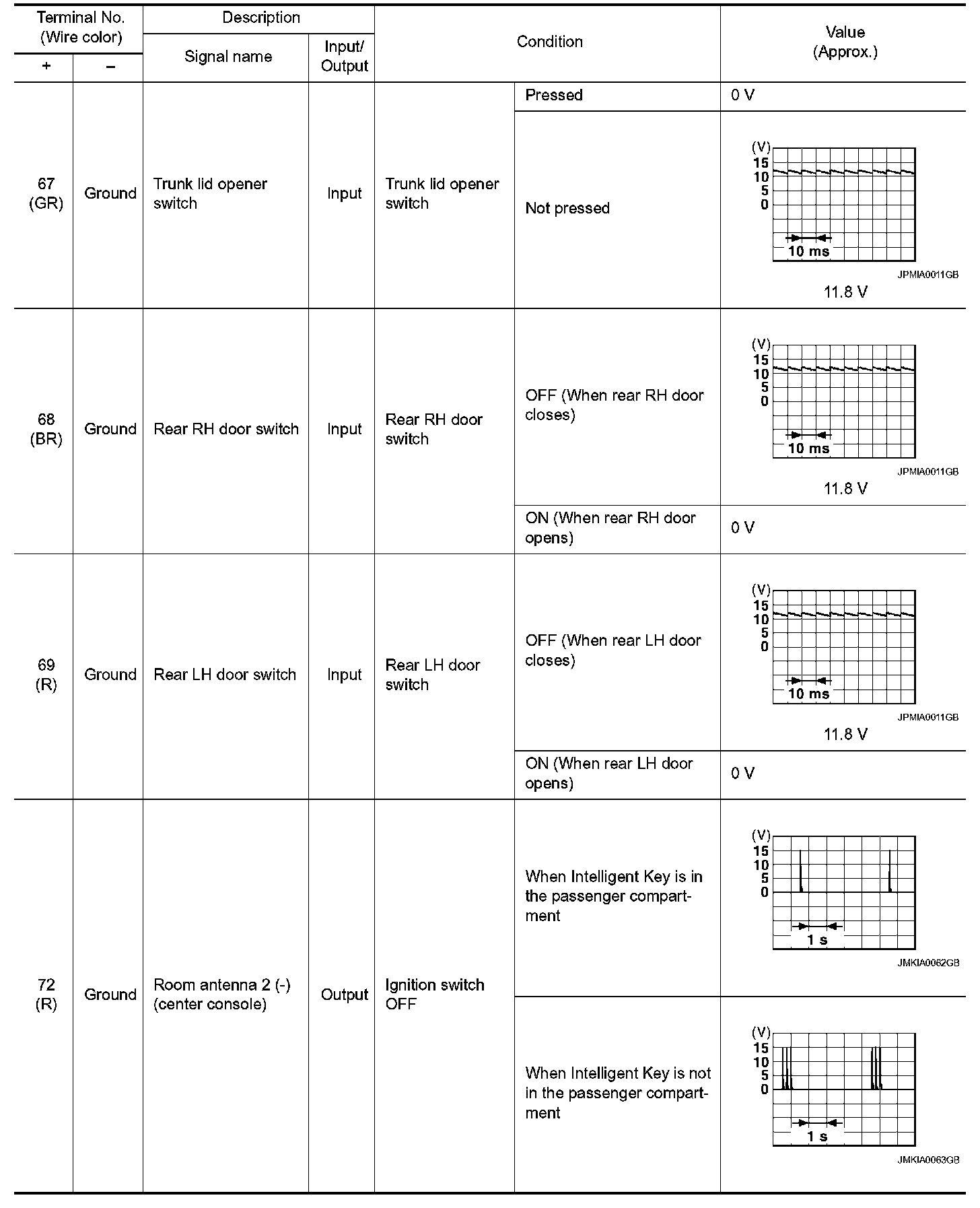

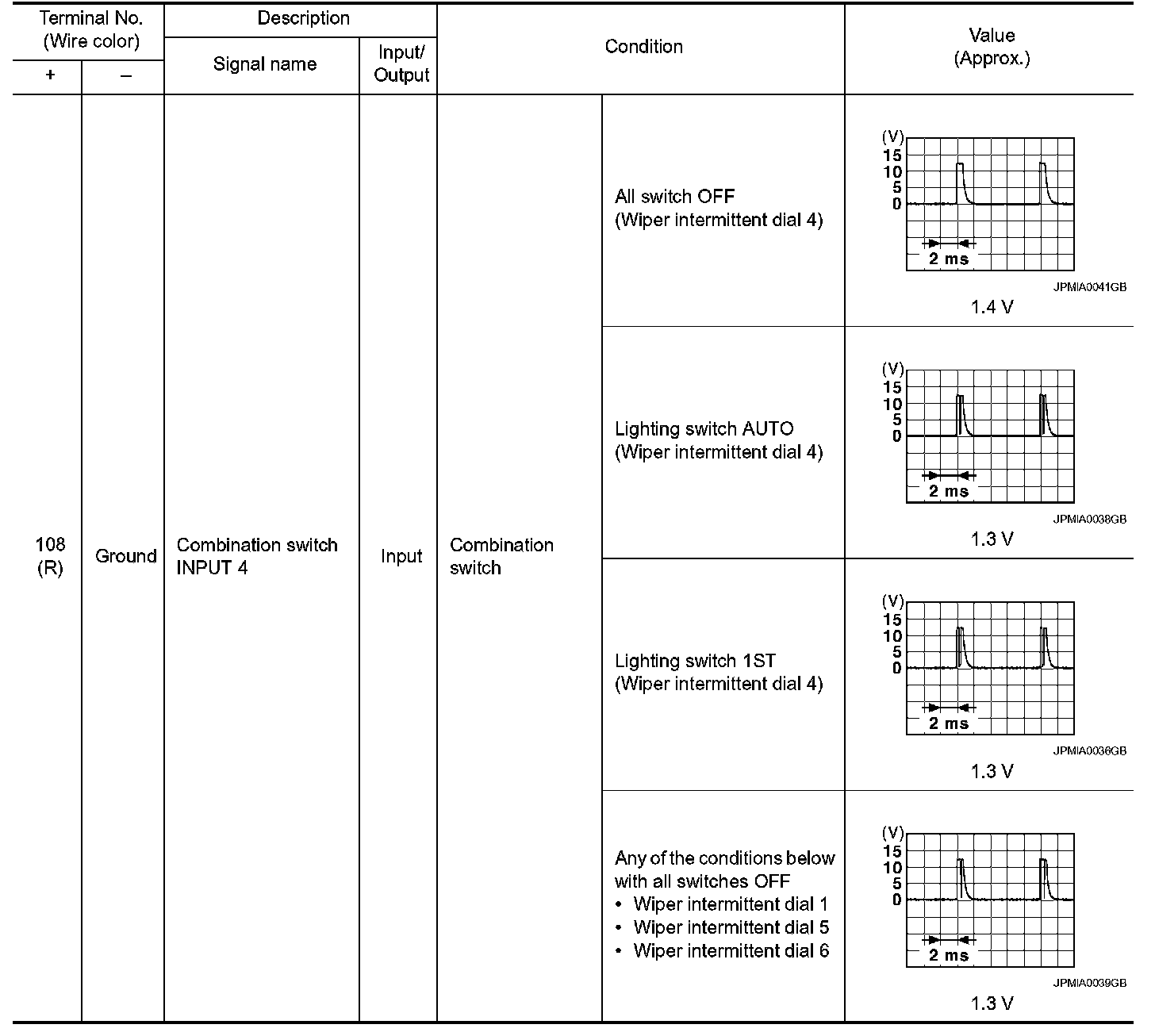

Terminals And Reference Values (Part 1):

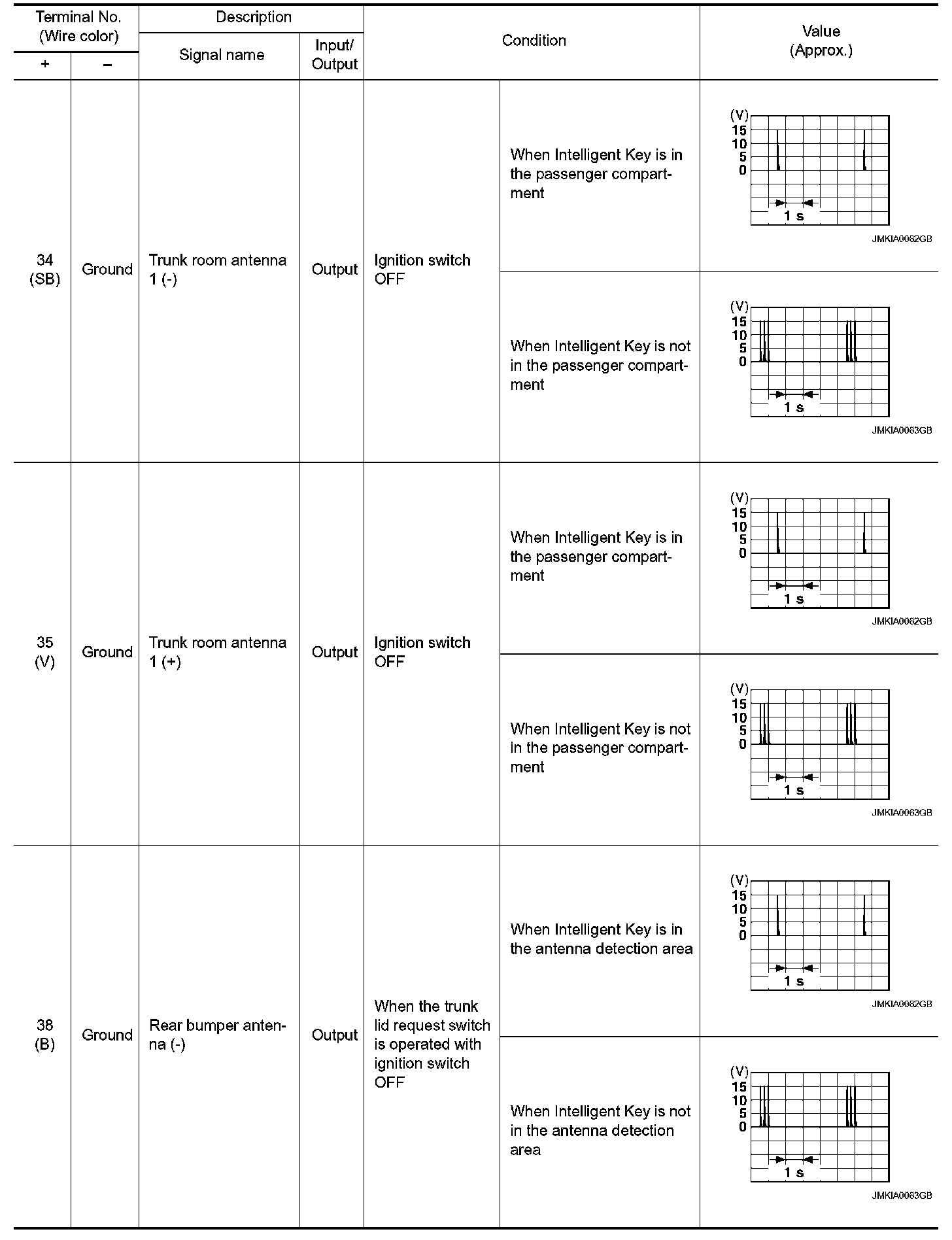

Terminals And Reference Values (Part 2):

Terminals And Reference Values (Part 3):

Terminals And Reference Values (Part 4):

Terminals And Reference Values (Part 5):

Terminals And Reference Values (Part 6):

Terminals And Reference Values (Part 7):

Terminals And Reference Values (Part 8):

Terminals And Reference Values (Part 9):

Terminals And Reference Values (Part 9):

Terminals And Reference Values (Part 10):

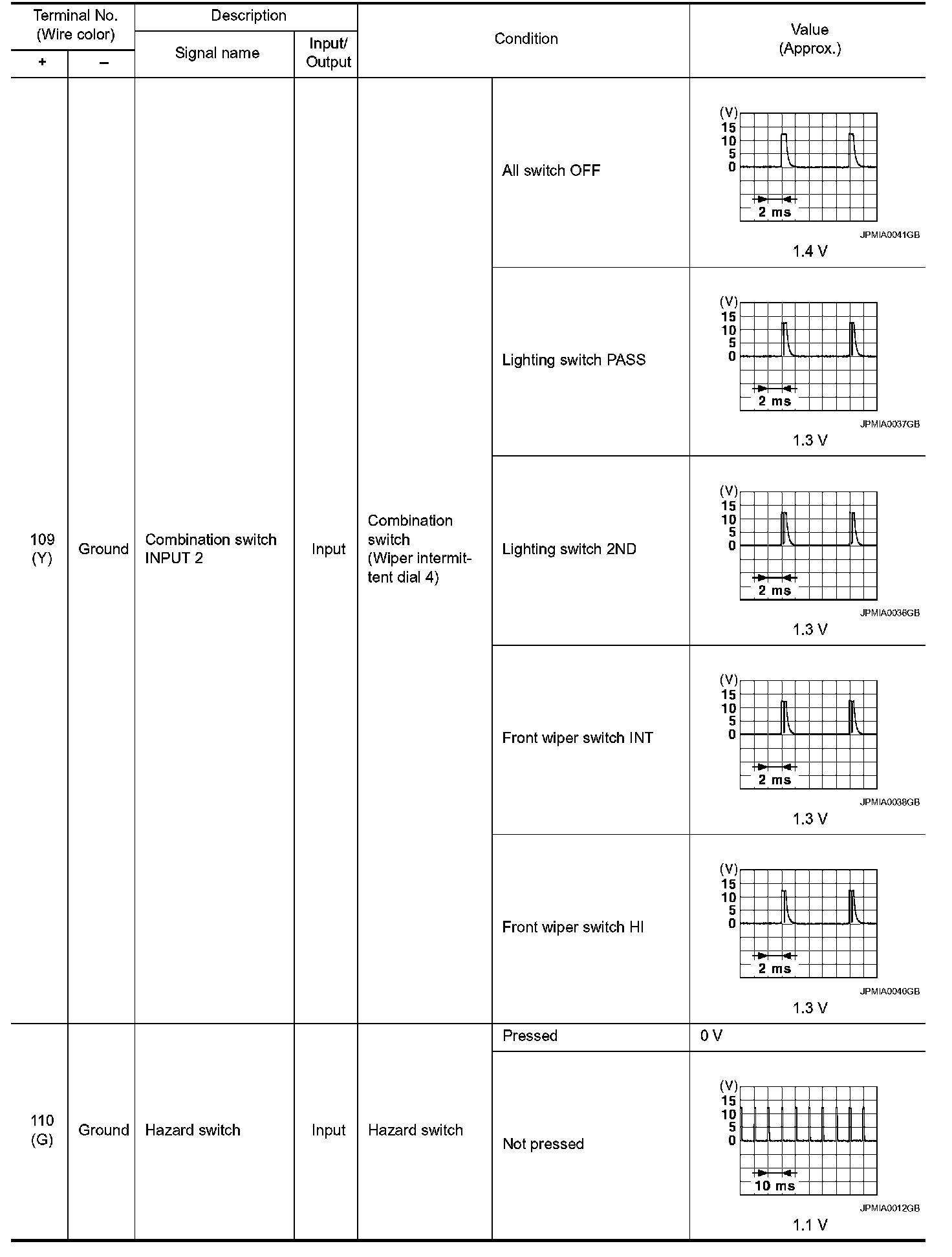

Terminals And Reference Values (Part 11):

Terminals And Reference Values (Part 12):

Terminals And Reference Values (Part 13):

Terminals And Reference Values (Part 14):

Terminals And Reference Values (Part 15):

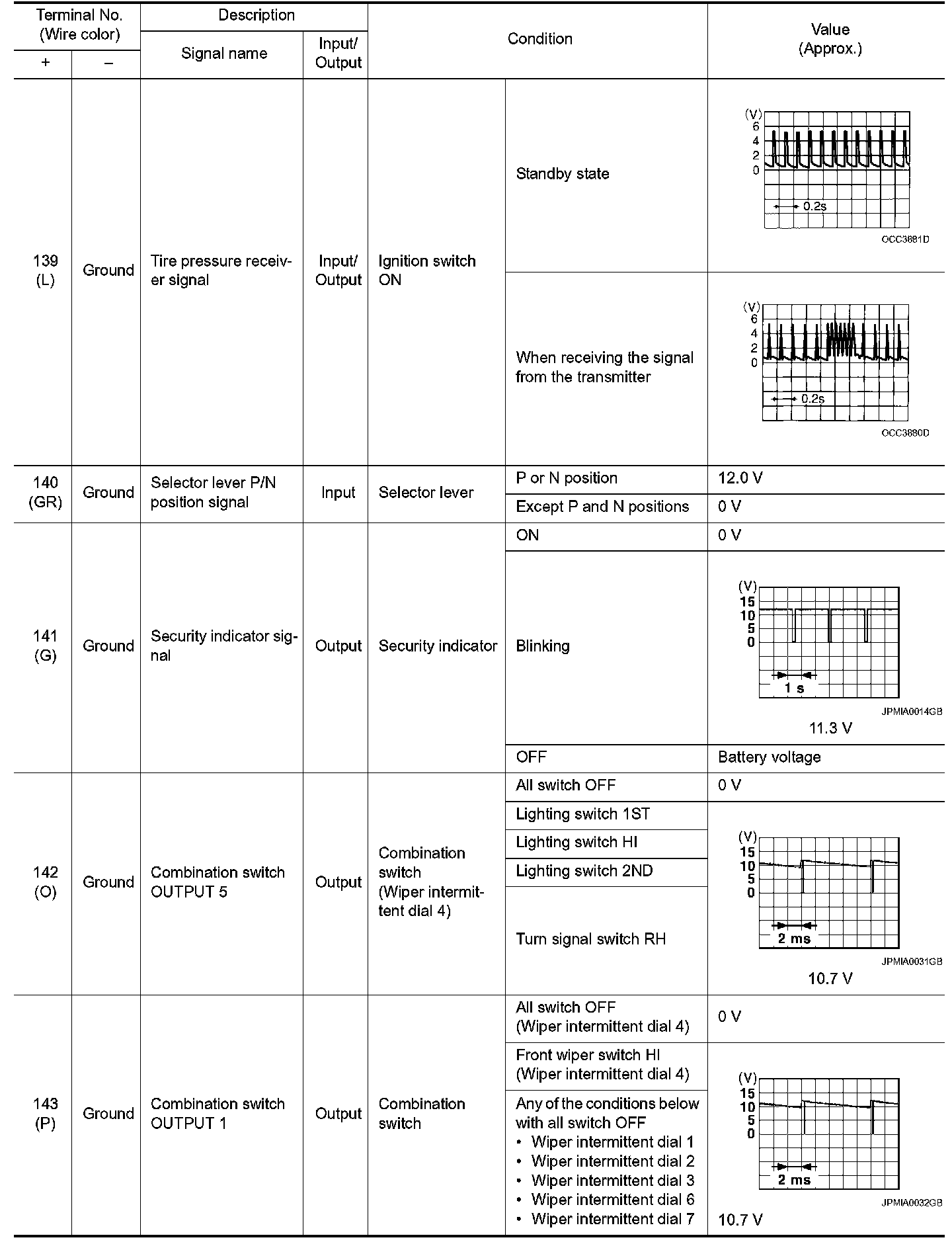

Terminals And Reference Values (Part 16):

Terminals And Reference Values (Part 17):
