Symptom Related Diagnostic Procedures

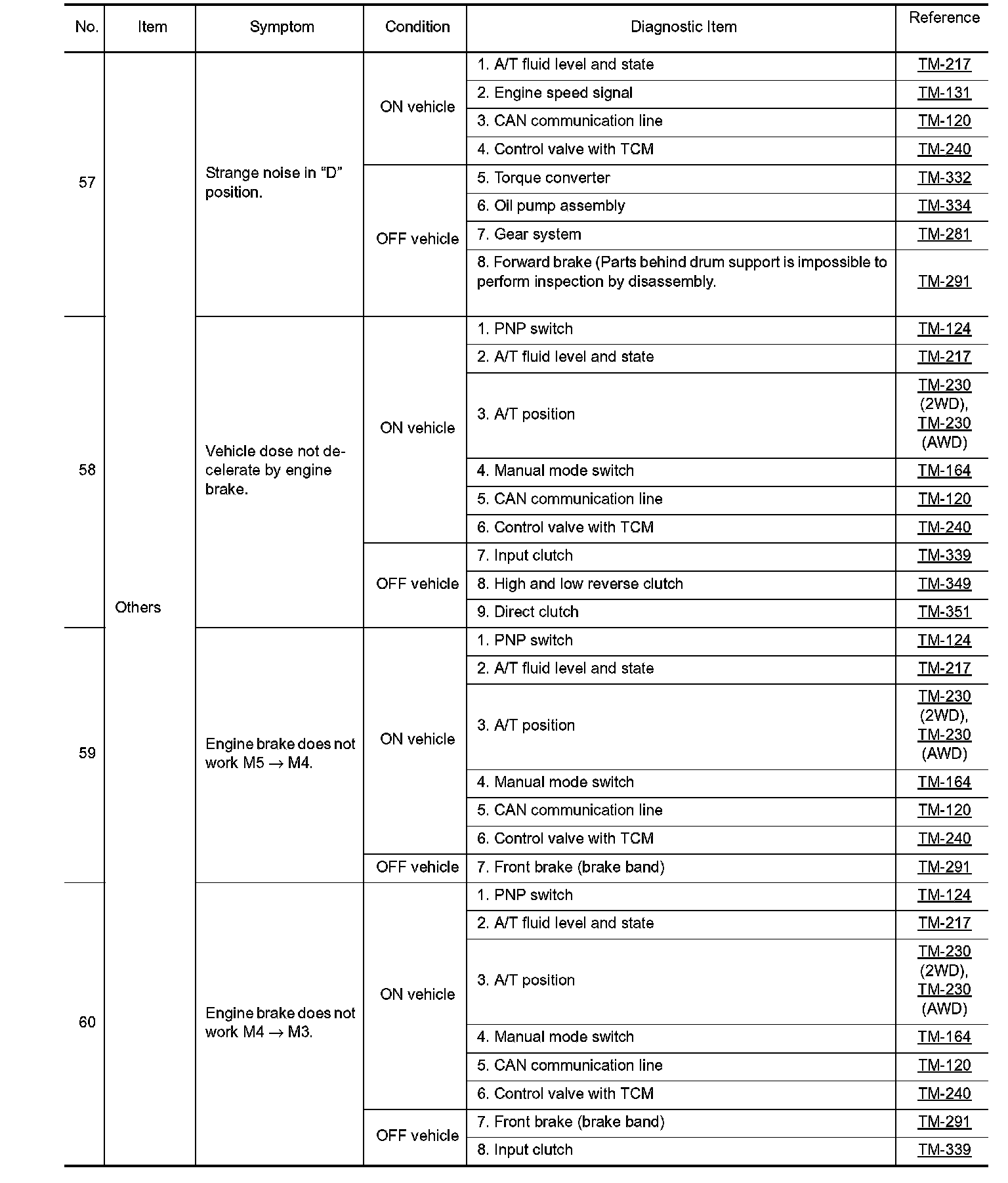

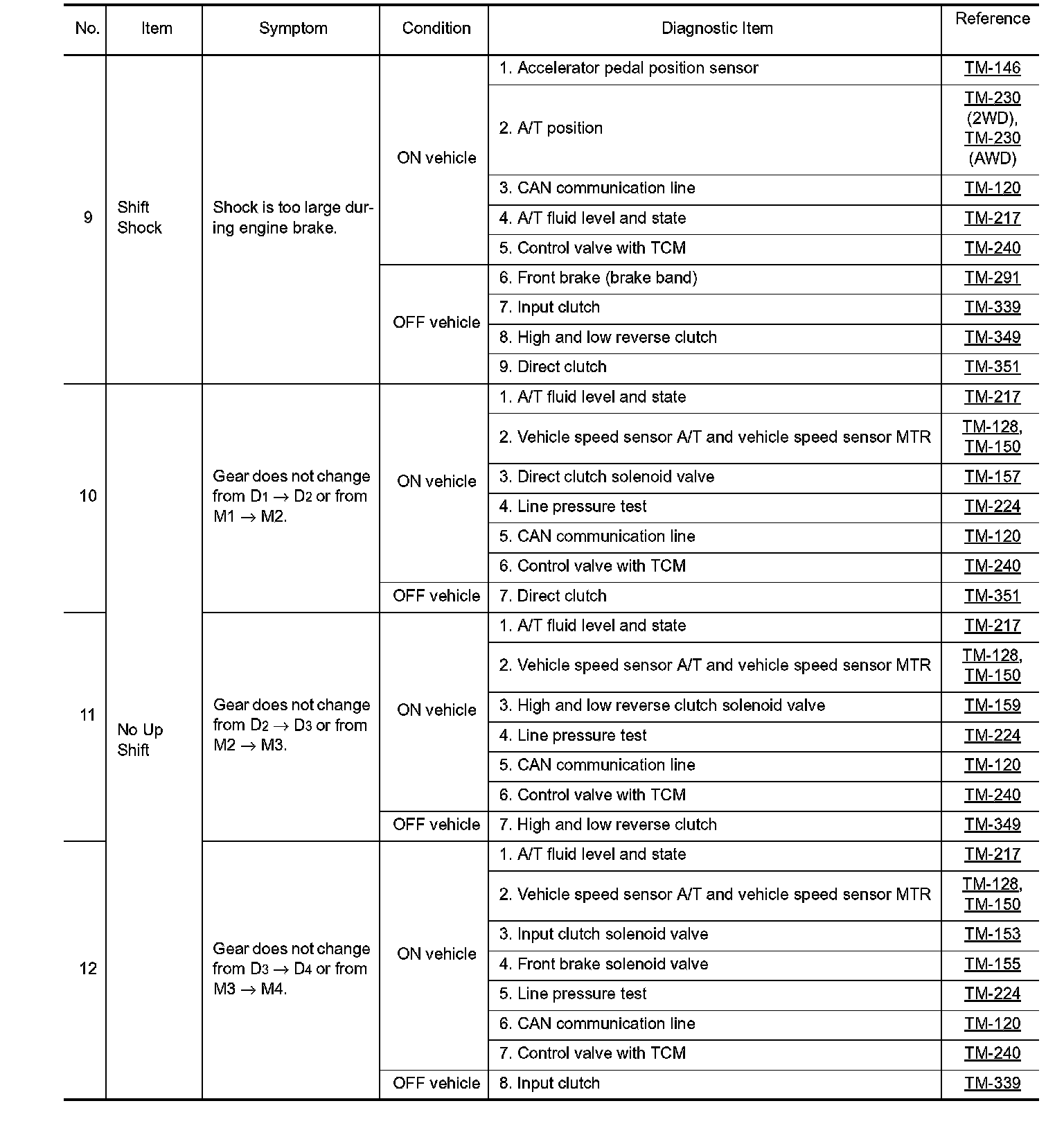

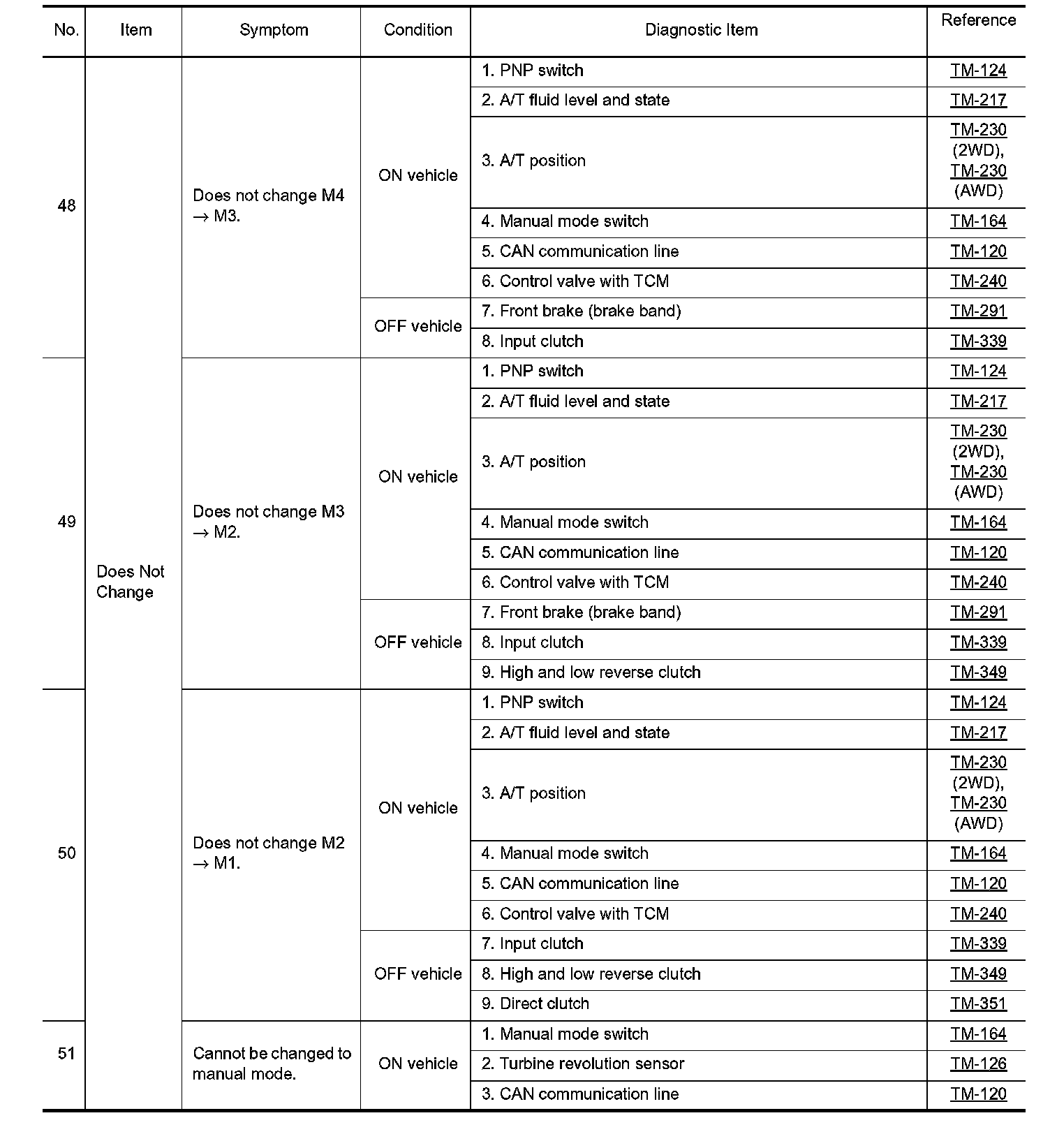

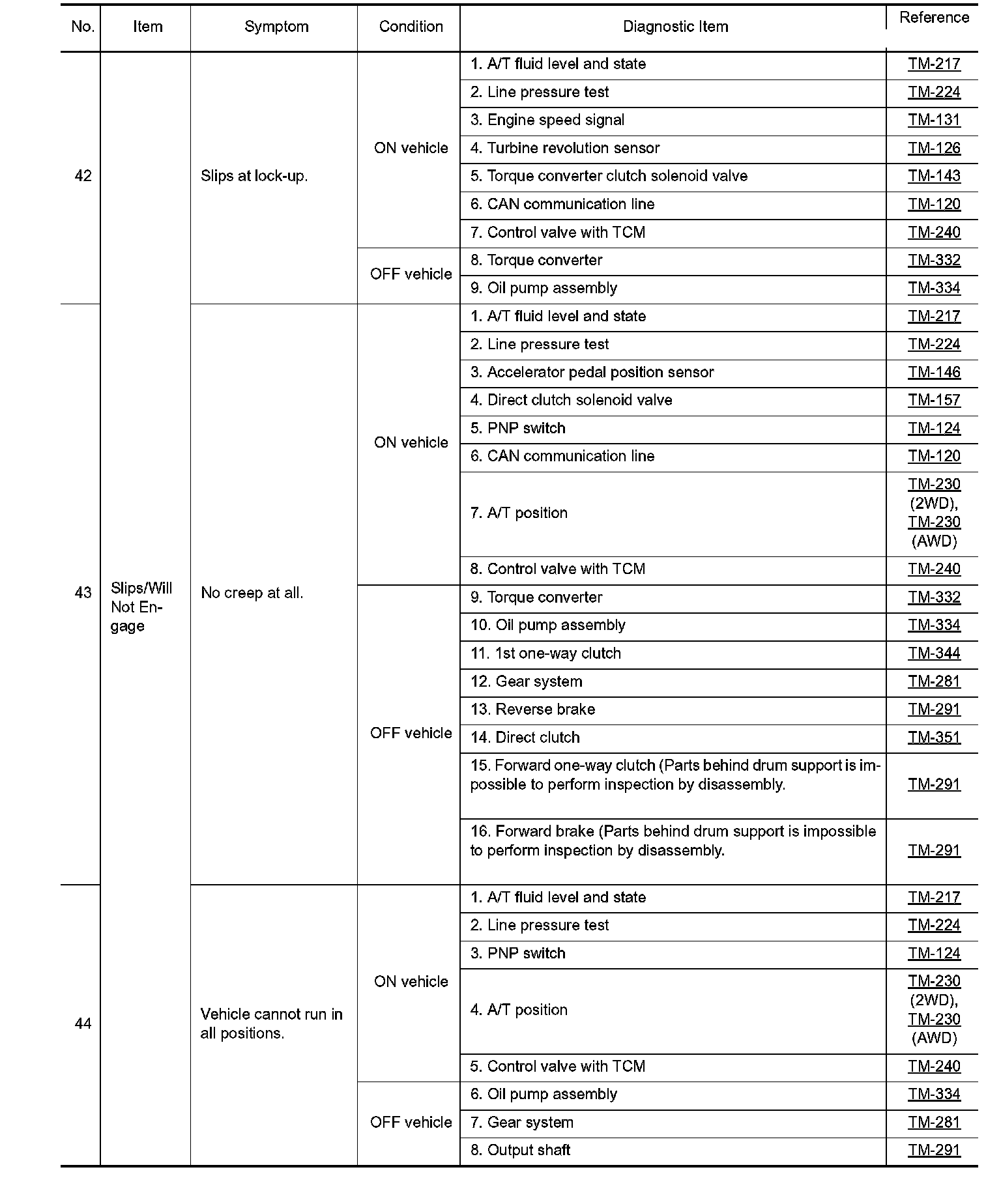

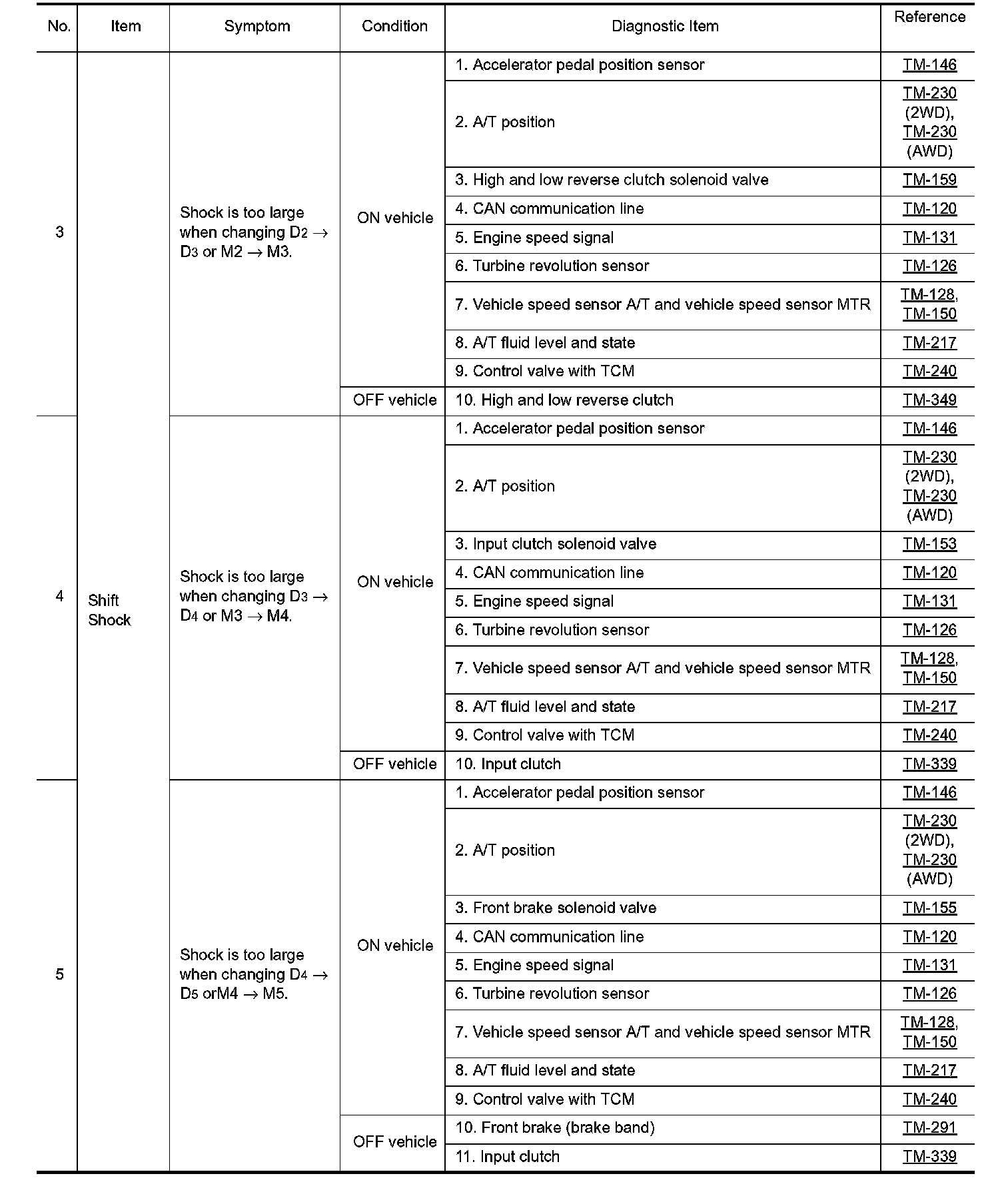

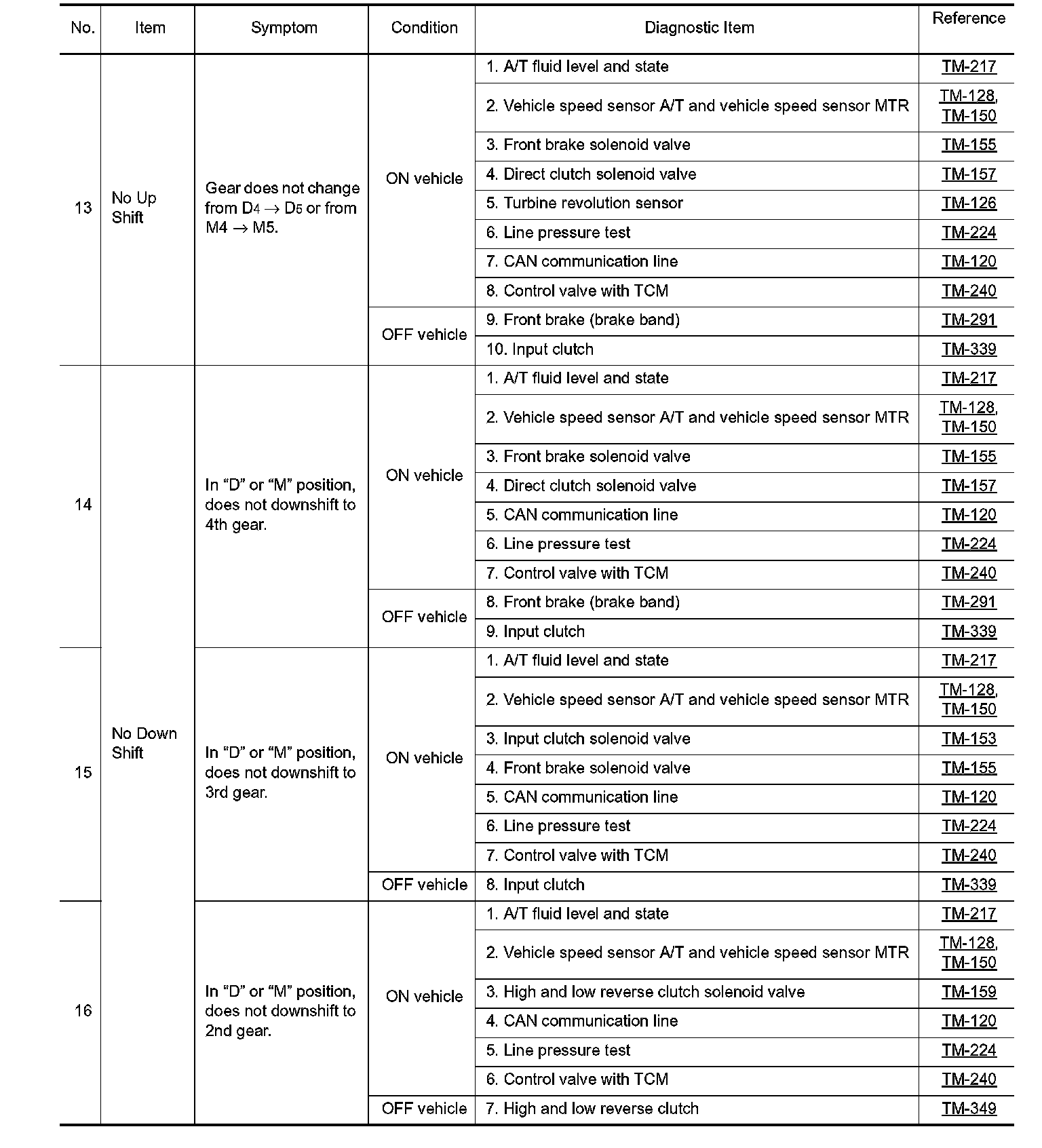

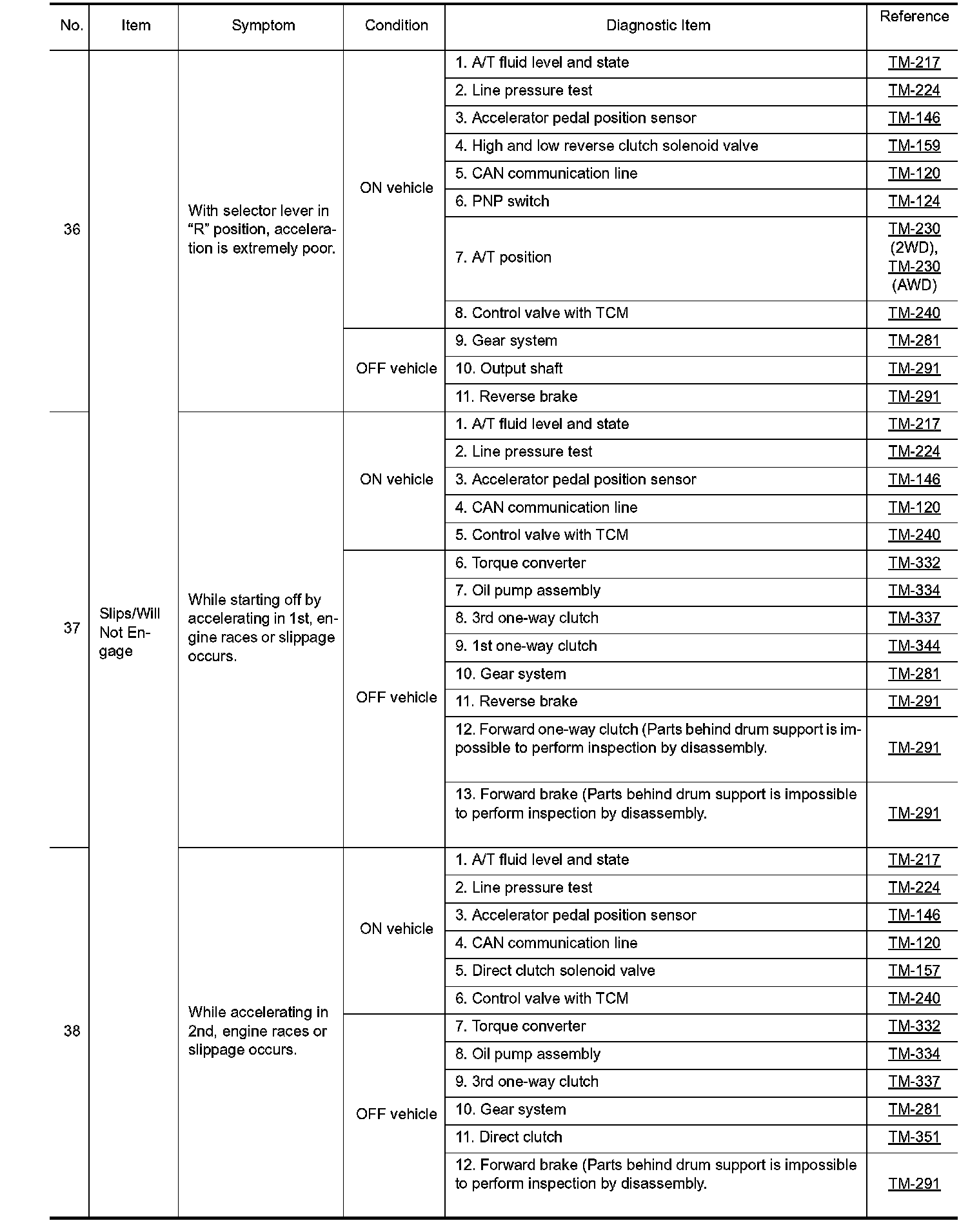

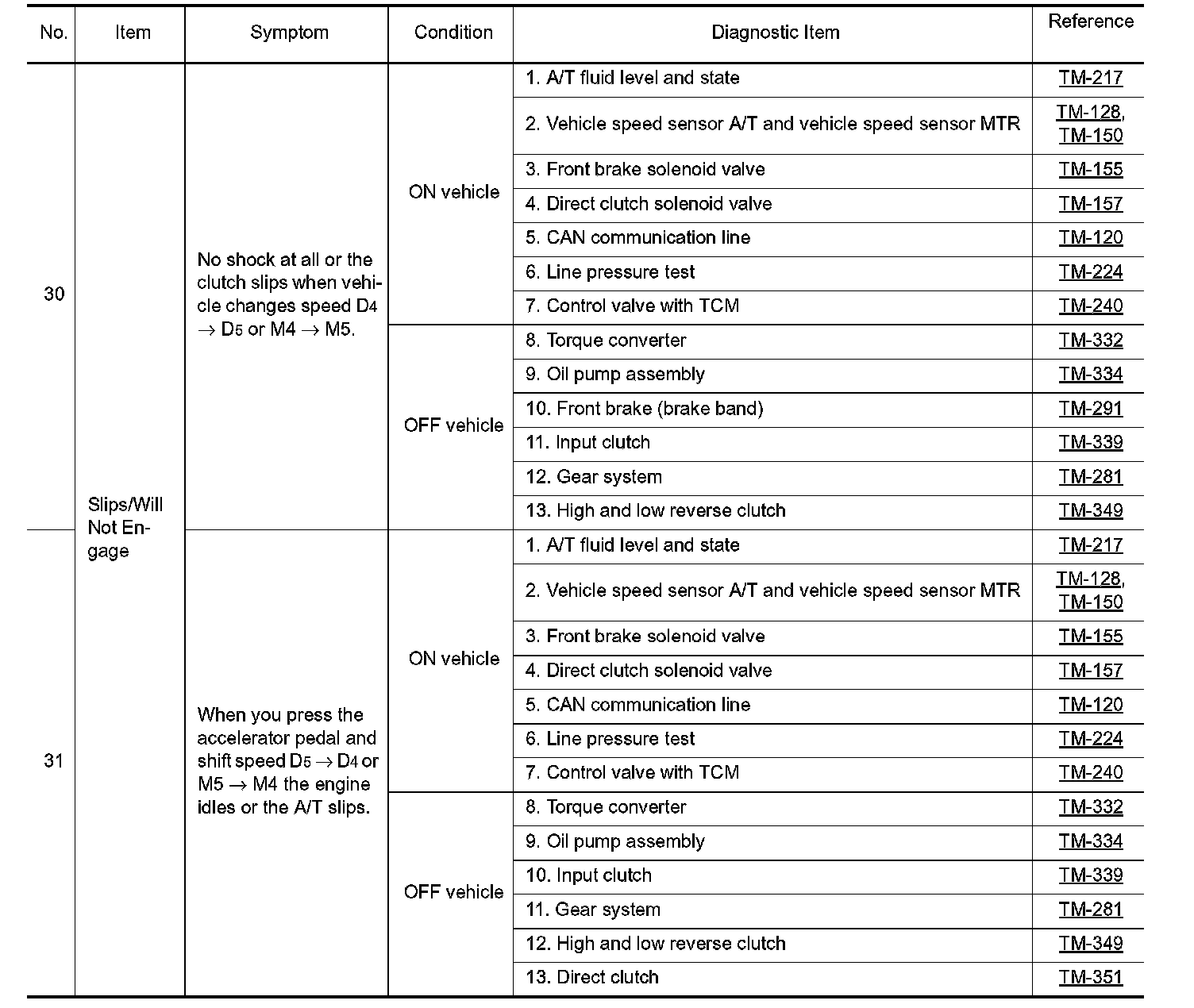

Symptom Table^ The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
^ Overhaul and inspection inside the A/T only if A/T fluid condition is NG.
Symptom Table (Part 1):
Symptom Table (Part 2):
Symptom Table (Part 3):
Symptom Table (Part 4):
Symptom Table (Part 5):
Symptom Table (Part 6):
Symptom Table (Part 7):
Symptom Table (Part 8):
Symptom Table (Part 9):
Symptom Table (Part 10):
Symptom Table (Part 11):
Symptom Table (Part 12):
Symptom Table (Part 13):
Symptom Table (Part 14):
Symptom Table (Part 15):
Symptom Table (Part 16):
Symptom Table (Part 17):
Symptom Table (Part 18):
Symptom Table (Part 19):
Symptom Table (Part 20):
Symptom Table (Part 21):
Symptom Table (Part 22):
