Piston, Engine

Cylinder Bore inner Diameter

^ Using a bore gauge, measure cylinder bore for wear, out-of-round and taper at six different points on each cylinder. [(A) and (B) directions at (C), (D) and (E)] is in longitudinal direction of engine.
f. 10 mm (0.39 in)
g. 60 mm (2.36 in)
h: 120 mm (4.72 in)

Re-boring Cylinder Bore

Honing allowance 0.02 mm (0.0008 in)

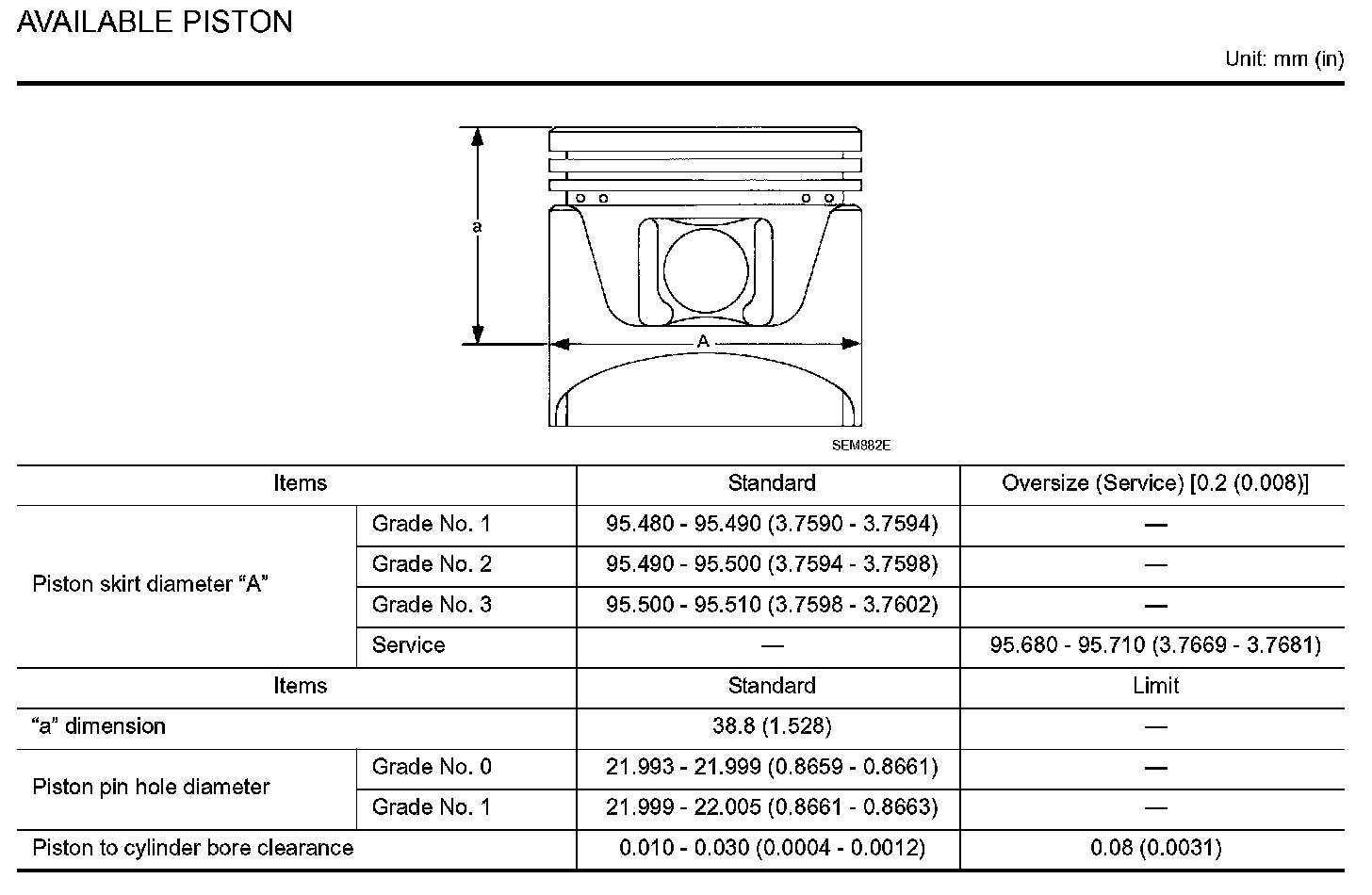

AVAILABLE PISTON

Part 1:

Part 2:

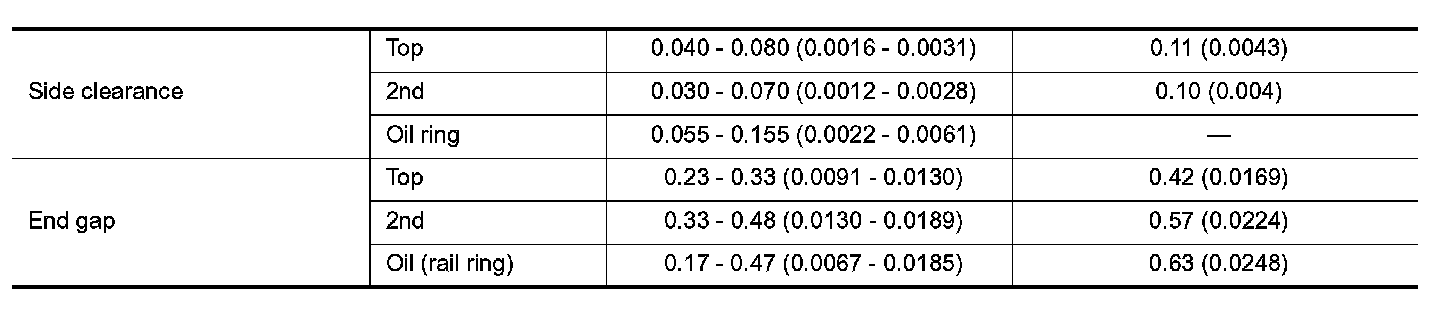

PISTON RING

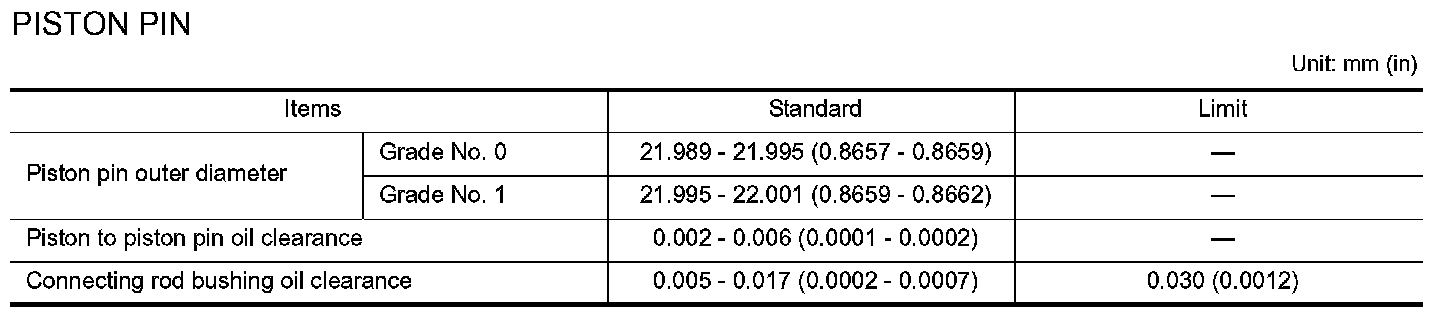

PISTON PIN
