Driver Side
ENCODER
DRIVER SIDE
DRIVER SIDE : DescriptionDetects condition of the front
power window motor (driver side) operation and transmits to power window main switch as pulse signal.
Step 1:

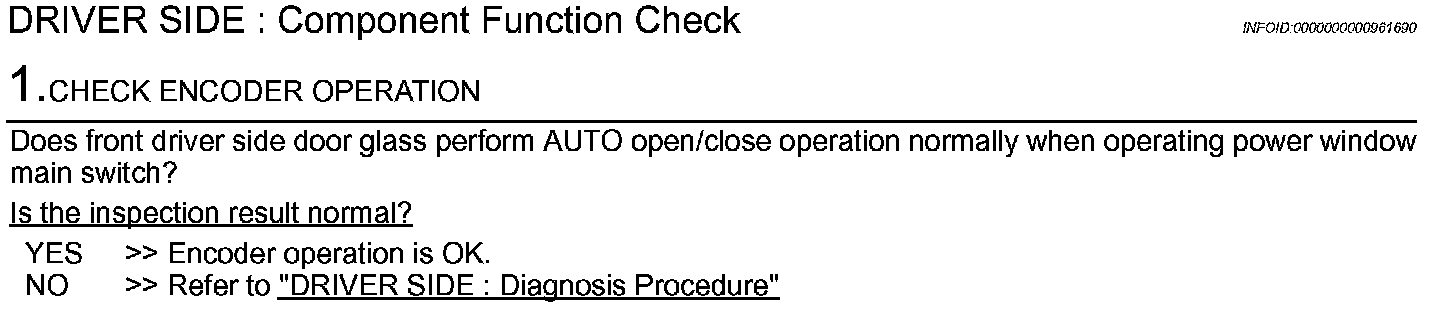

DRIVER SIDE : Component Function Check
Step 1-2:

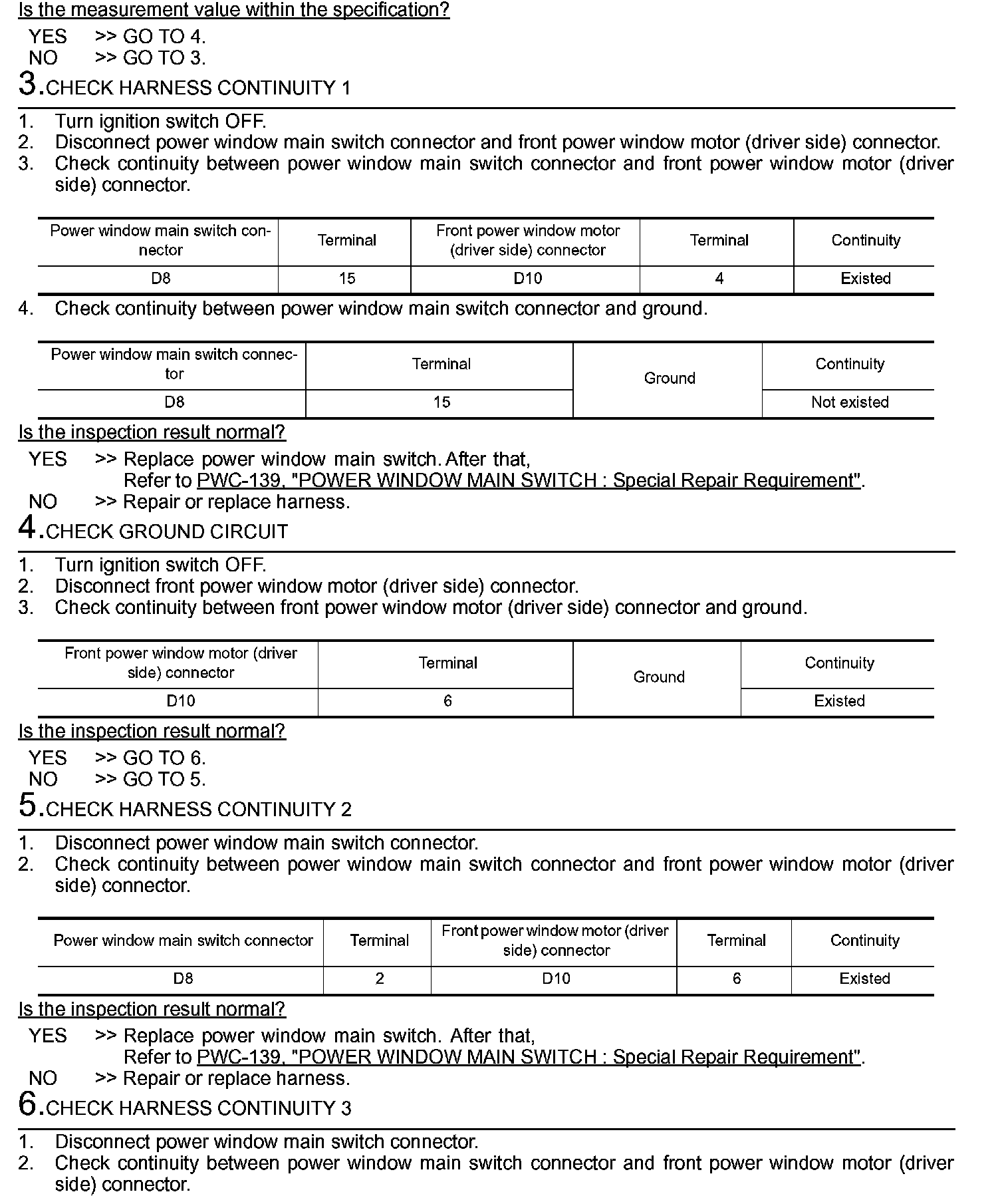

Step 2 (Continued)-6:

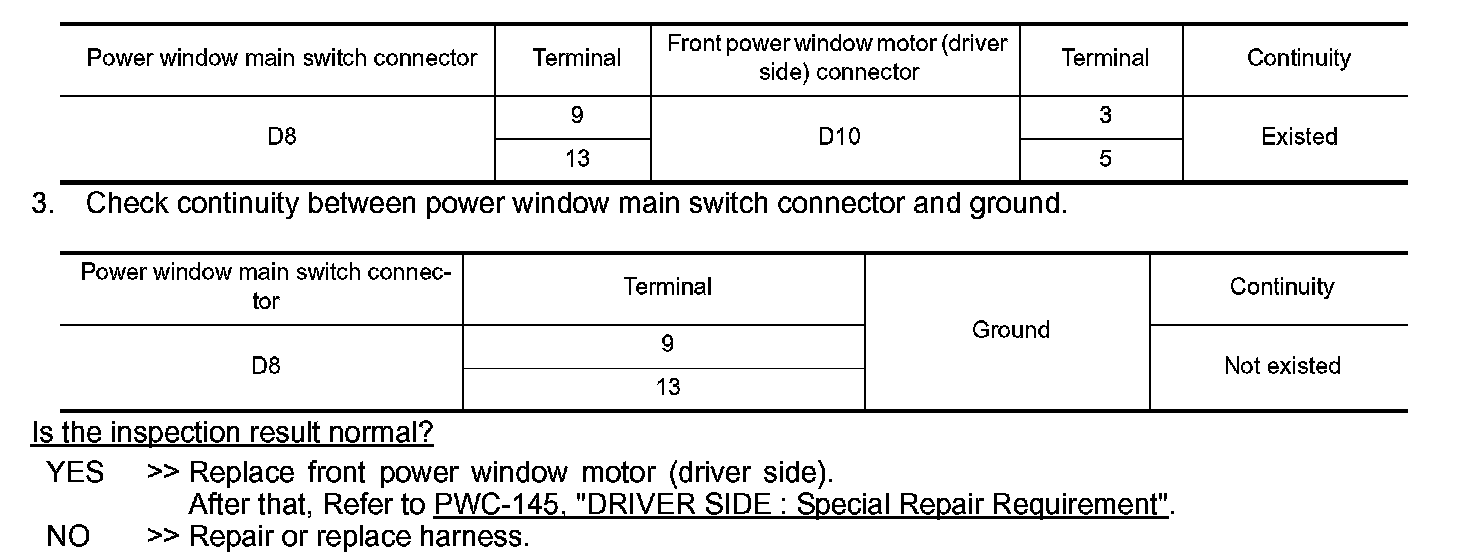

Step 6 (Continued):

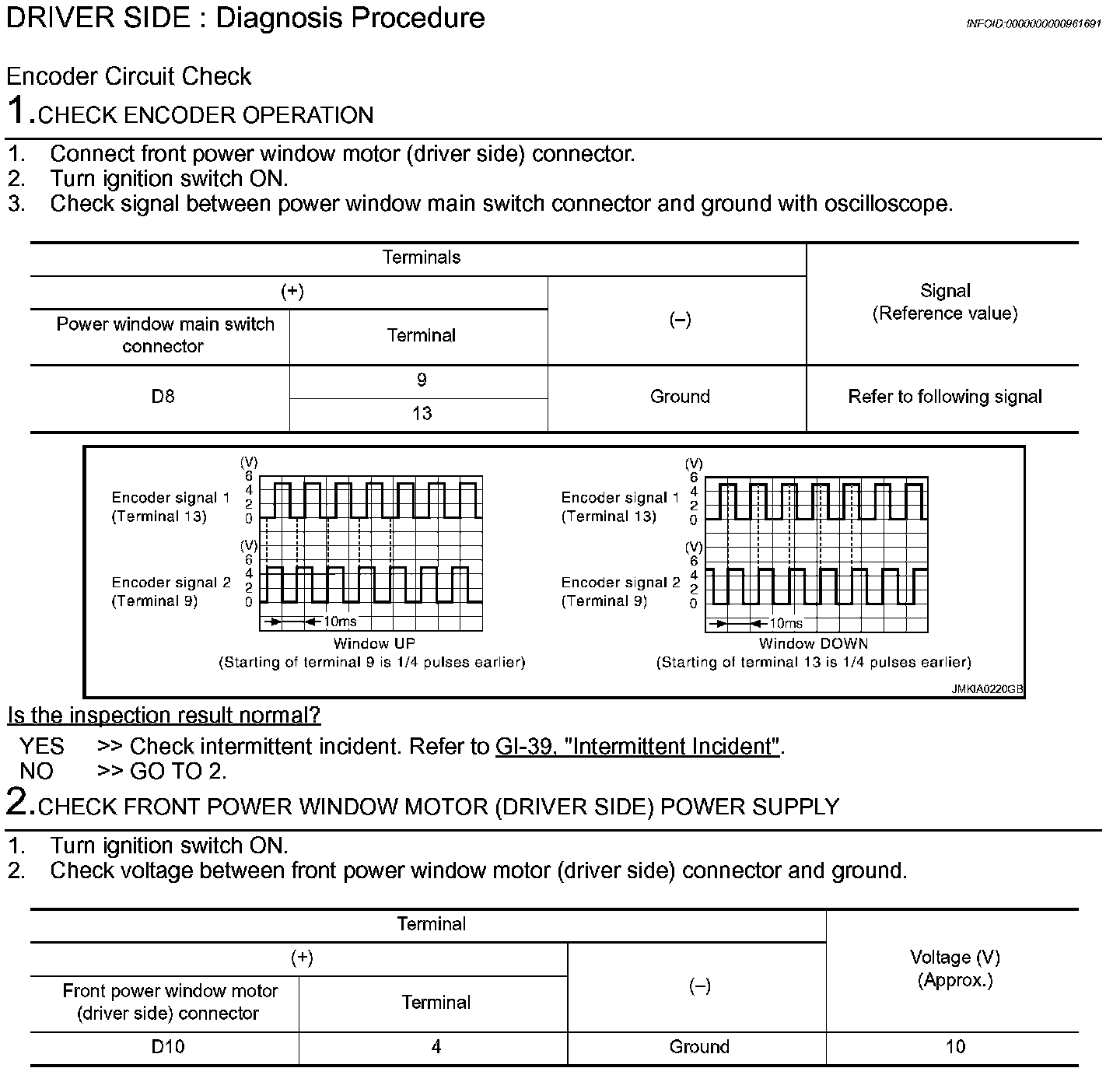

DRIVER SIDE : Diagnosis Procedure
