Cruise Control Relay: Testing and Inspection

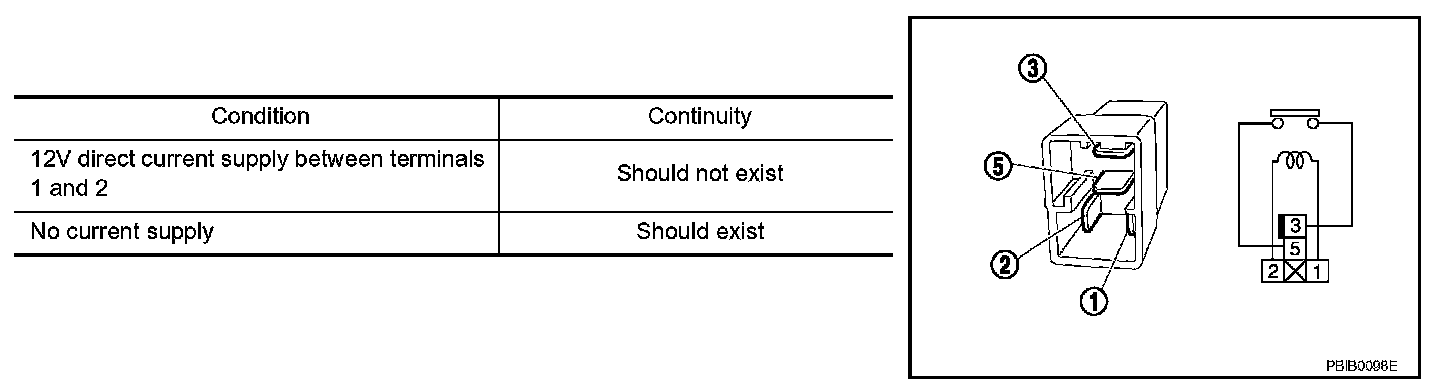

ICC BRAKE HOLD RELAY

1. Check continuity between ICC brake hold relay terminals 3 and 5 under the given conditions.
2. If NG, replace ICC brake hold relay.
