Ignition Coil: Service and Repair

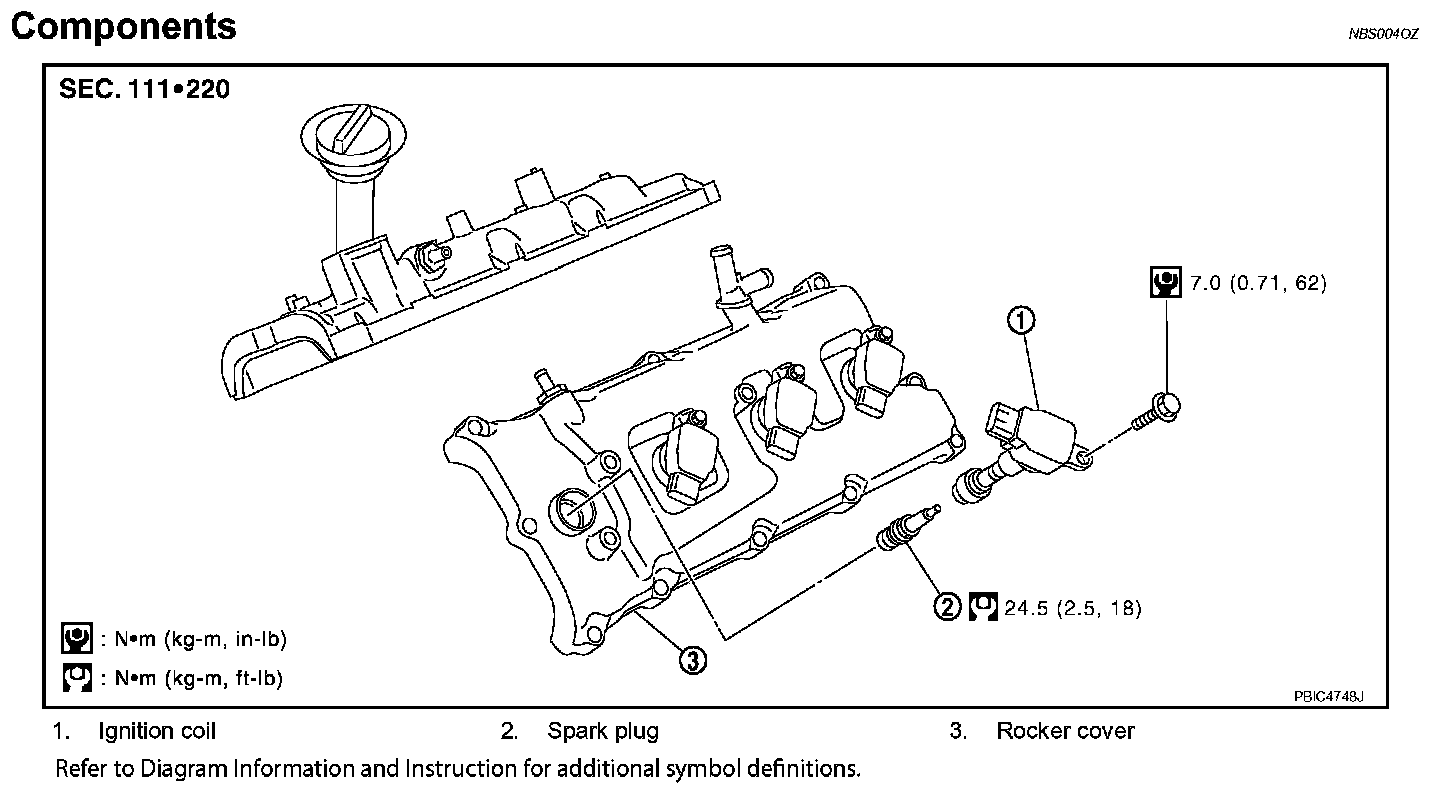

IGNITION COIL Exploded View EM-189:
Removal and InstallationREMOVAL 1.
Remove engine room cover (RH and LH).
2.
Remove engine cover with power tool.
3.
Remove air duct (inlet), air cleaner case and air duct and resonator assembly.
4.
Disconnect harness connector from
ignition coil.
5.
Remove
ignition coil.
CAUTION: Do not shock it. INSTALLATION Installation is the reverse order of removal.
