Oil Pan, Engine

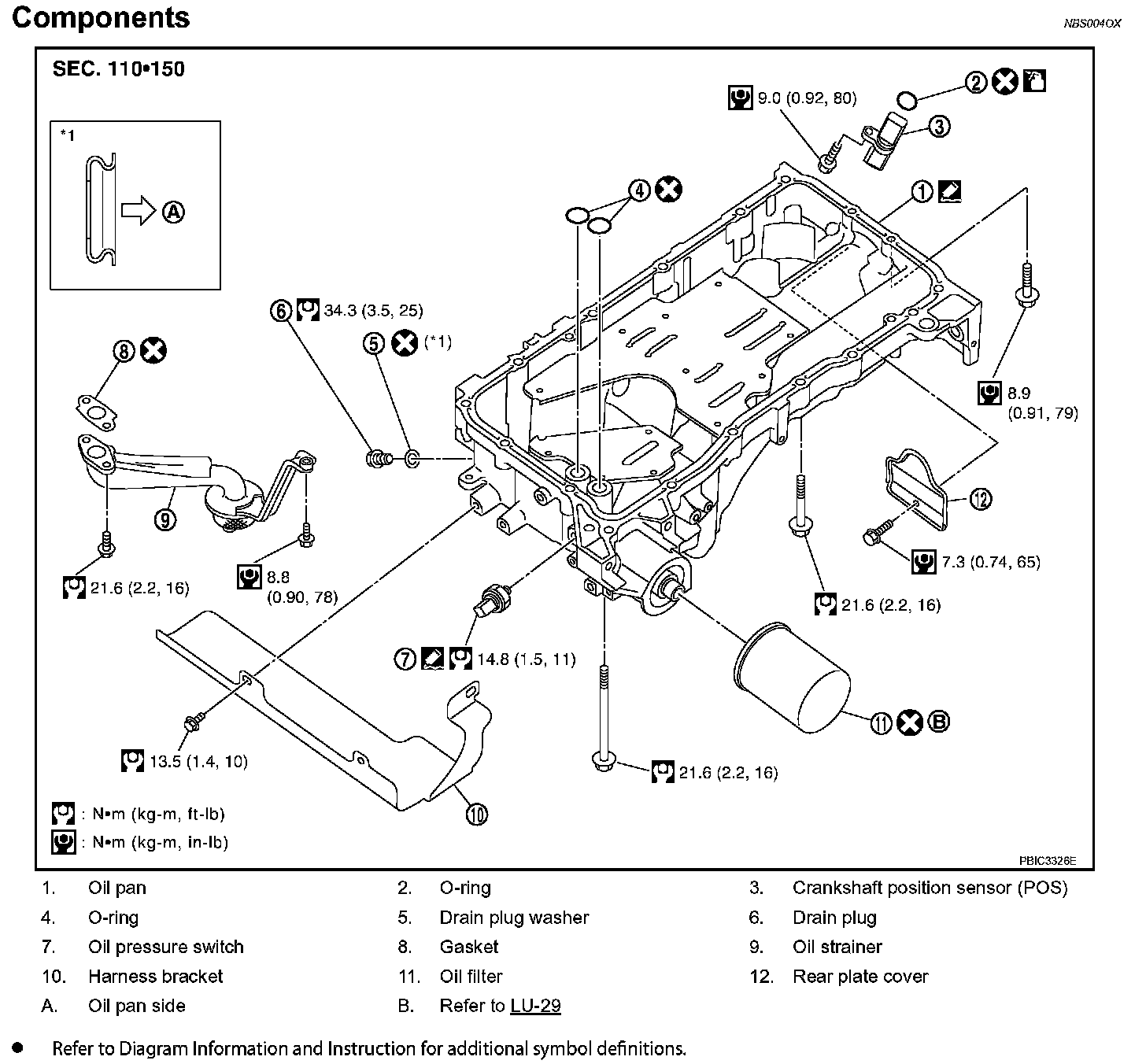

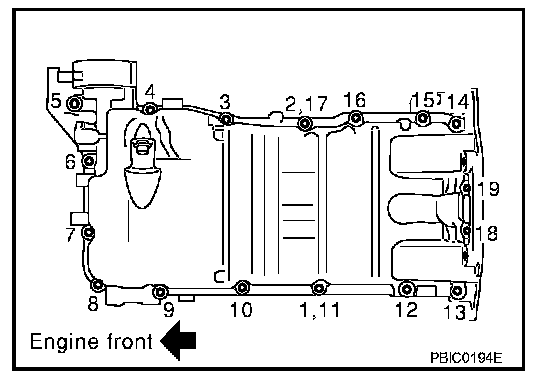

Exploded View EM-186:
Oil Pan Tighten mounting bolts in numerical order as shown in the figure.
NOTE: Tighten mounting bolts No. 1 and 2 in two steps. The numerical order No. 11 and 17 shown second steps.
There are three types of mounting bolts. Refer to the following for locating bolts.
M6 x 30 mm (1.18 in)
18, 19
M8 x 100 mm (3.94 in)
5, 9
M8 x 45 mm (1.77 in)
Except the above
