Navigation Module: Service and Repair

NAVI CONTROL UNIT

Removal

CAUTION: To avoid damage, eject map DVD-ROM before removing the NAVI control unit.

1. Disconnect negative battery cable.
2. Remove front passenger seat.

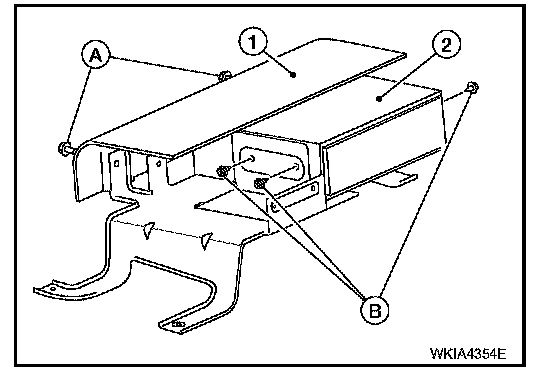

3. Remove NAVI control unit kick shield screws (A).
4. Remove NAVI control unit kick shield (1).
5. Disconnect NAVI control unit connectors.
6. Remove NAVI control unit screws (B).
7. Remove NAVI control unit (2).

Installation
Installation is in the reverse order of removal.
