Active Test

ACTIVE TEST

CAUTION: Do not perform the active test while driving. Active test cannot be started while ICC system warning indicator is illuminated.

Active Test

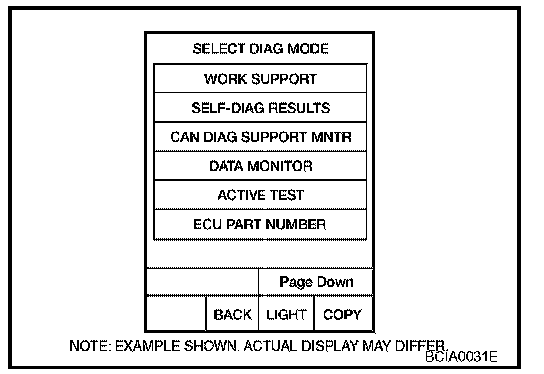

1. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.

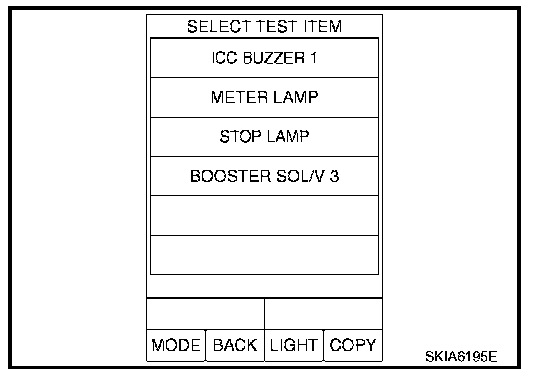

2. Touch any of "ICC BUZZER 1", "METER LAMP", "STOP LAMP" and "BOOSTER SOL/V 3" on "SELECT TEST ITEM" screen.
3. Touch "START".
4. Active test screen will be shown.




ICC BUZZER 1
- Touch "ON" and "OFF" to check that ICC warning chime operates as in the chart.

METER LAMP
- Start engine.

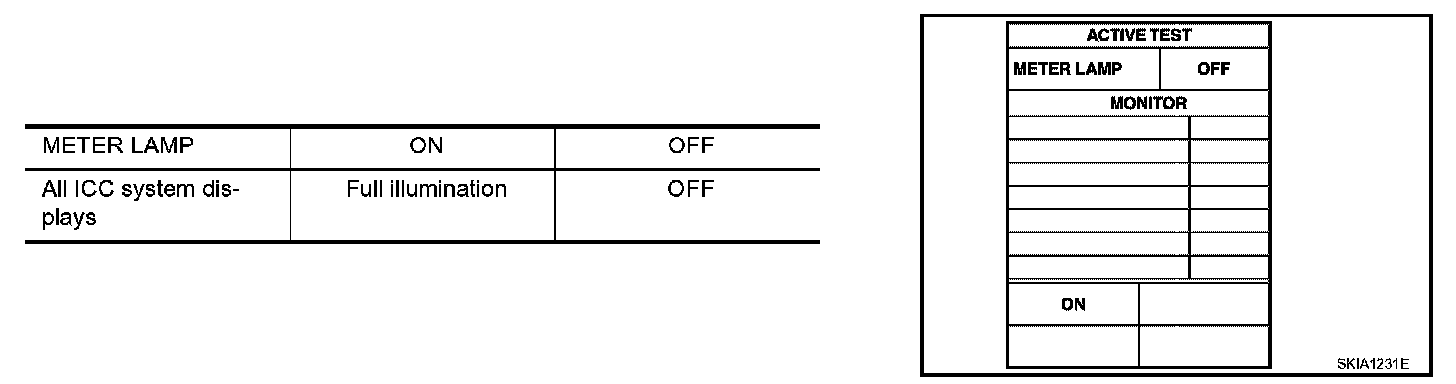

- Touch "ON" and "OFF" to check that ICC system displays operate as required.




- The following ICC lamps will illuminate at the same time, CRUISE (orange), CRUISE (green), SET and ICC digital display.




STOP LAMP

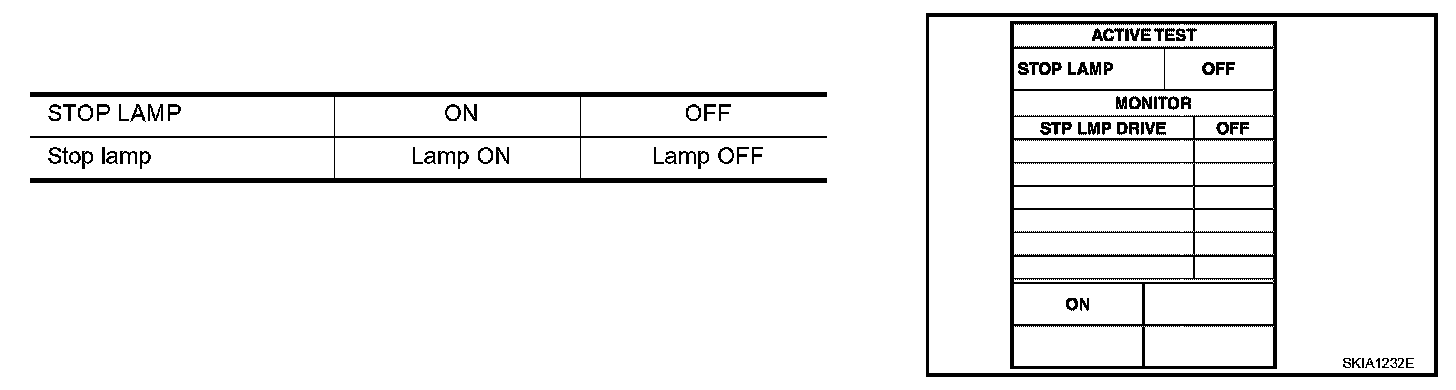

- Touch "ON" and "OFF" to check that the stop lamps operate as in the chart.

BOOSTER SOL/V 3

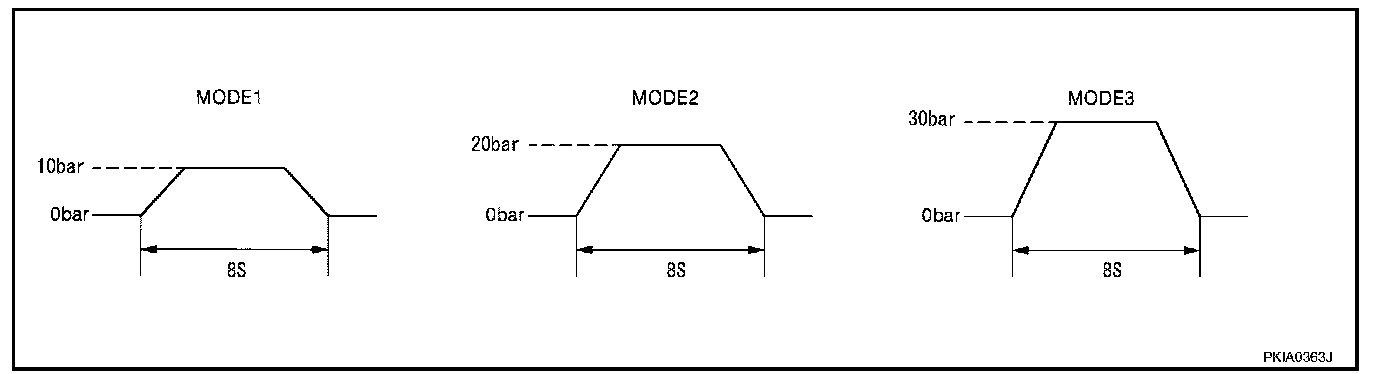

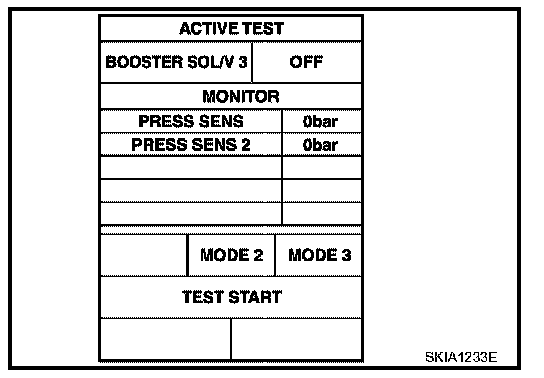

- Touch any of "MODE 1", "MODE 2", "MODE 3" to check that following operation condition is caused by operating monitor and brake pedal.




- "START" is displayed 10 seconds after operation start. (Active test is completed.)
